*Reels not included

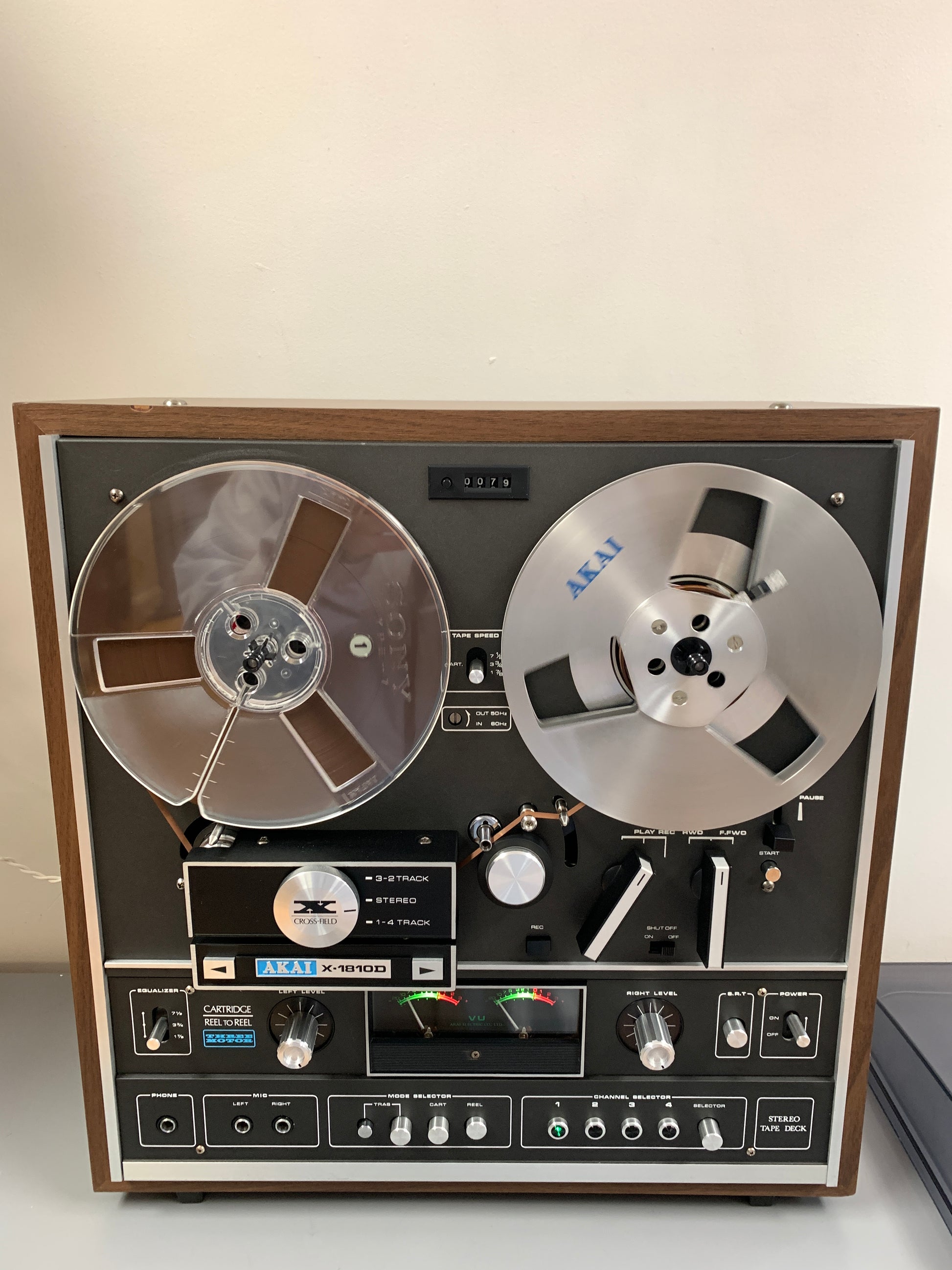

Akai X-1810D

Reel to Reel / Cartridge Combination Tape Recorder (1973)

Specifications

Track system: 4-track, 2-channel, stereo/monaural system

Heads: 1 x record/playback, 1 x erase, 1 x bias

Motor: 2 x reel drive, 1 x capstan

Reel size: 5 or 7 inch reel

Equalization: NAB

Tape speeds: 1 ⁷⁄₈  3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.08% (7 ¹⁄₂ ips)

Frequency response: 30Hz to 22kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 50dB

Total harmonic distortion: 2%

Crosstalk: 45dB

Input: 60mV (line), 20mV (DIN), 0.5mV (mic)

Output: 1.23V (line), 1.23V (DIN)

Semiconductors: 17 x transistors, 15 x diodes

Dimensions: 435 x 450 x 240mm

Weight: 20kg
