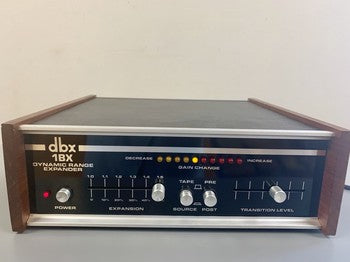

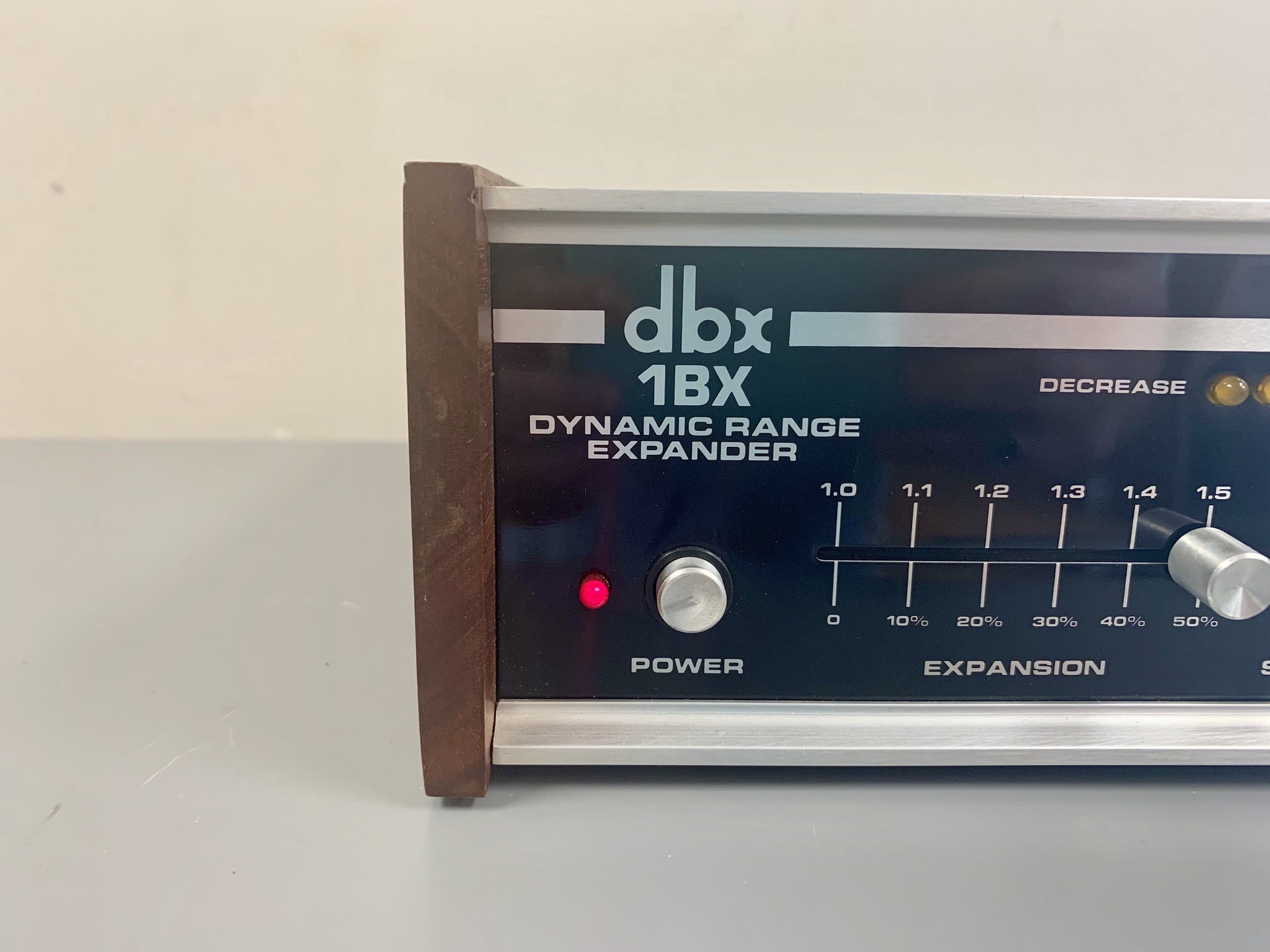

DBX 1BX

Linear Dynamic Range Enhancer (1981)



Description

The 1BX is the most sophisticated one-band expander on the market.

It provides as much as a 50% improvement in stereo dynamic range over a wide frequency spectrum.

It's true RMS detector has an infrasonic filter - 10 dB/octave at 30 Hz - to prevent mistracking caused by vibration, turntable rumble or record warps.

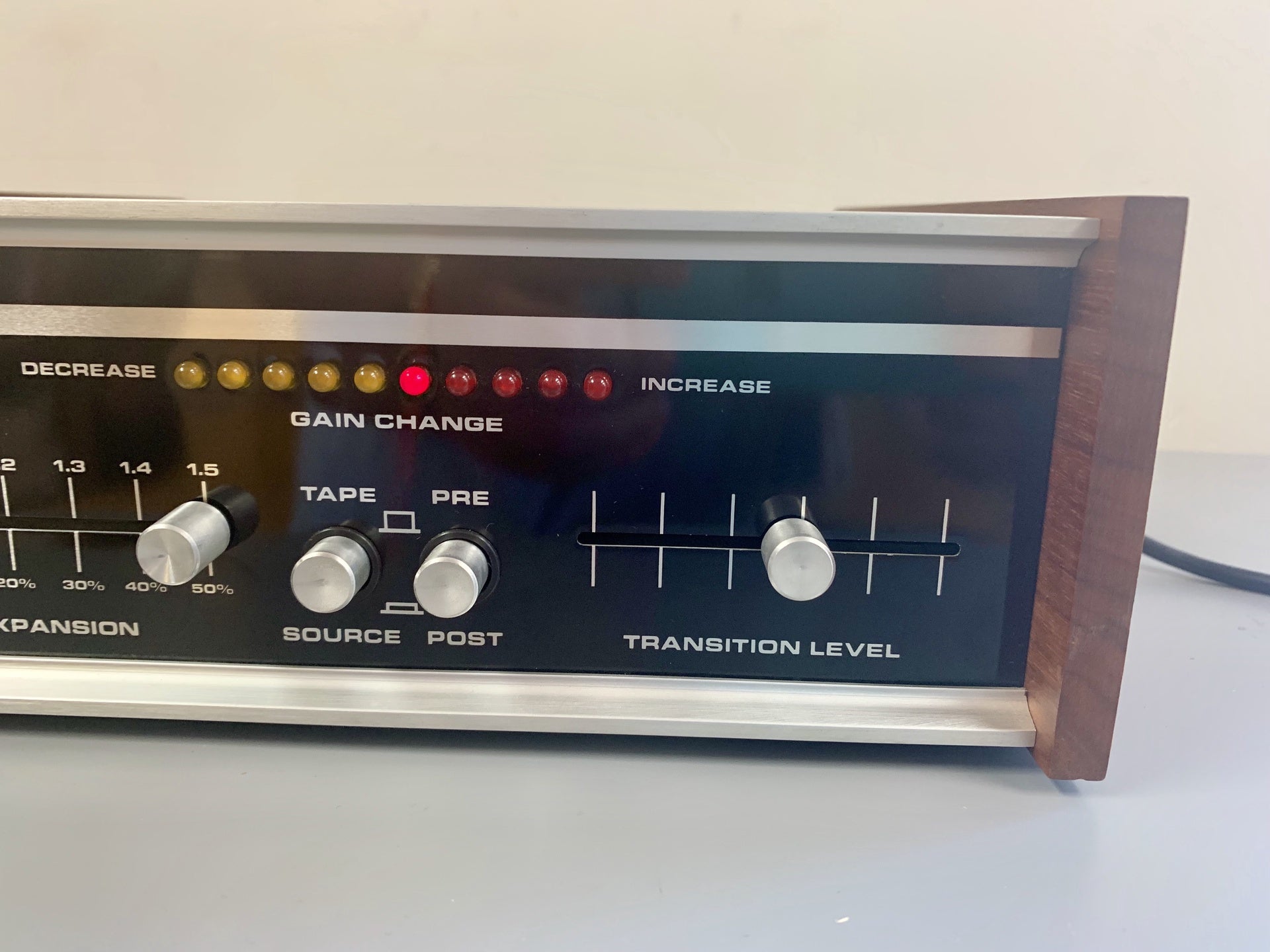

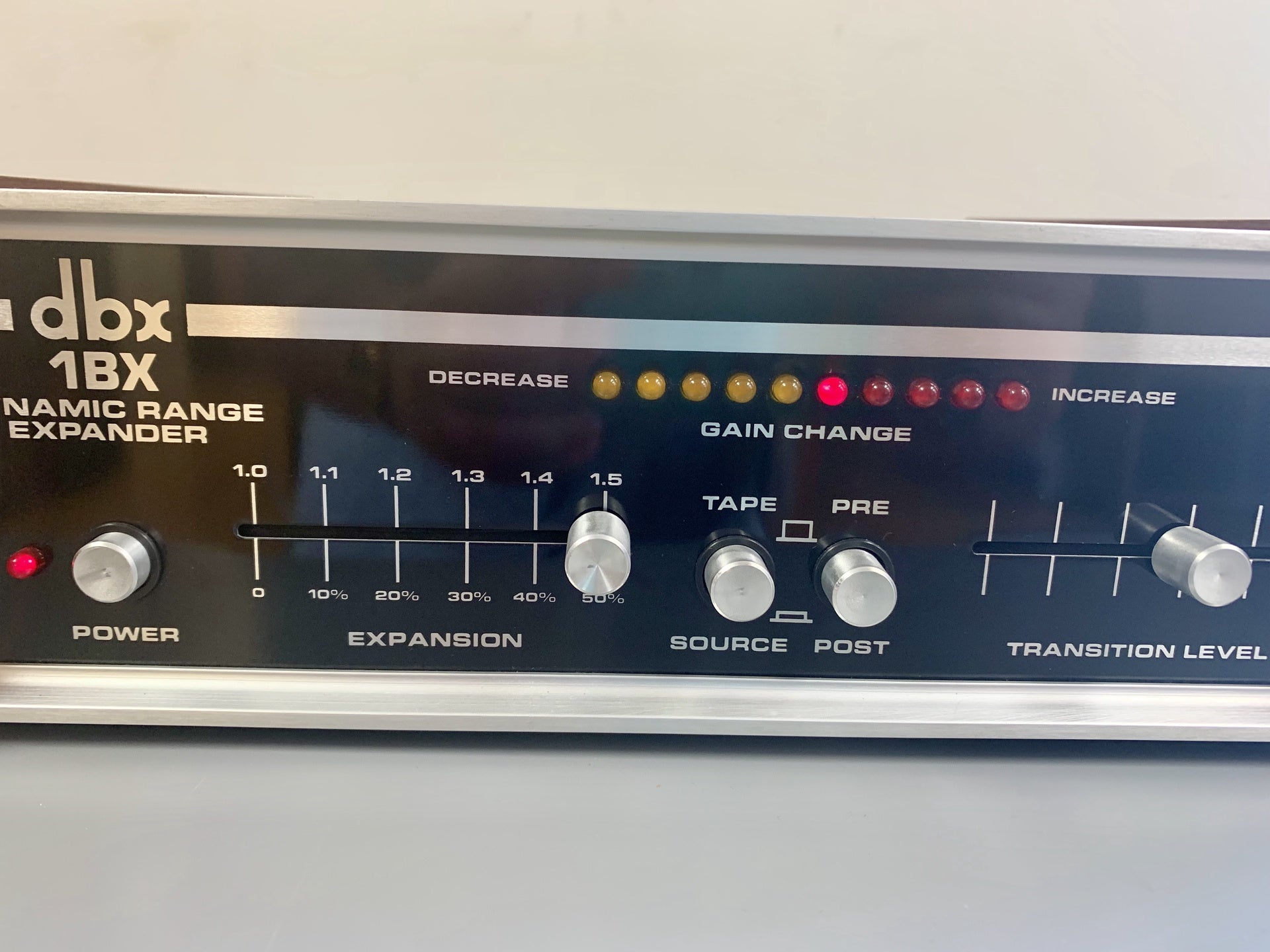

It's 10-LED display enables you to monitor the amount and the direction of gain change resulting from the expansion process.

Specifications

Dynamic range: 110dB

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.1%

Maximum output level: 6V RMS

Dimensions: 278 x 95 x 255mm

Weight: 2kg
