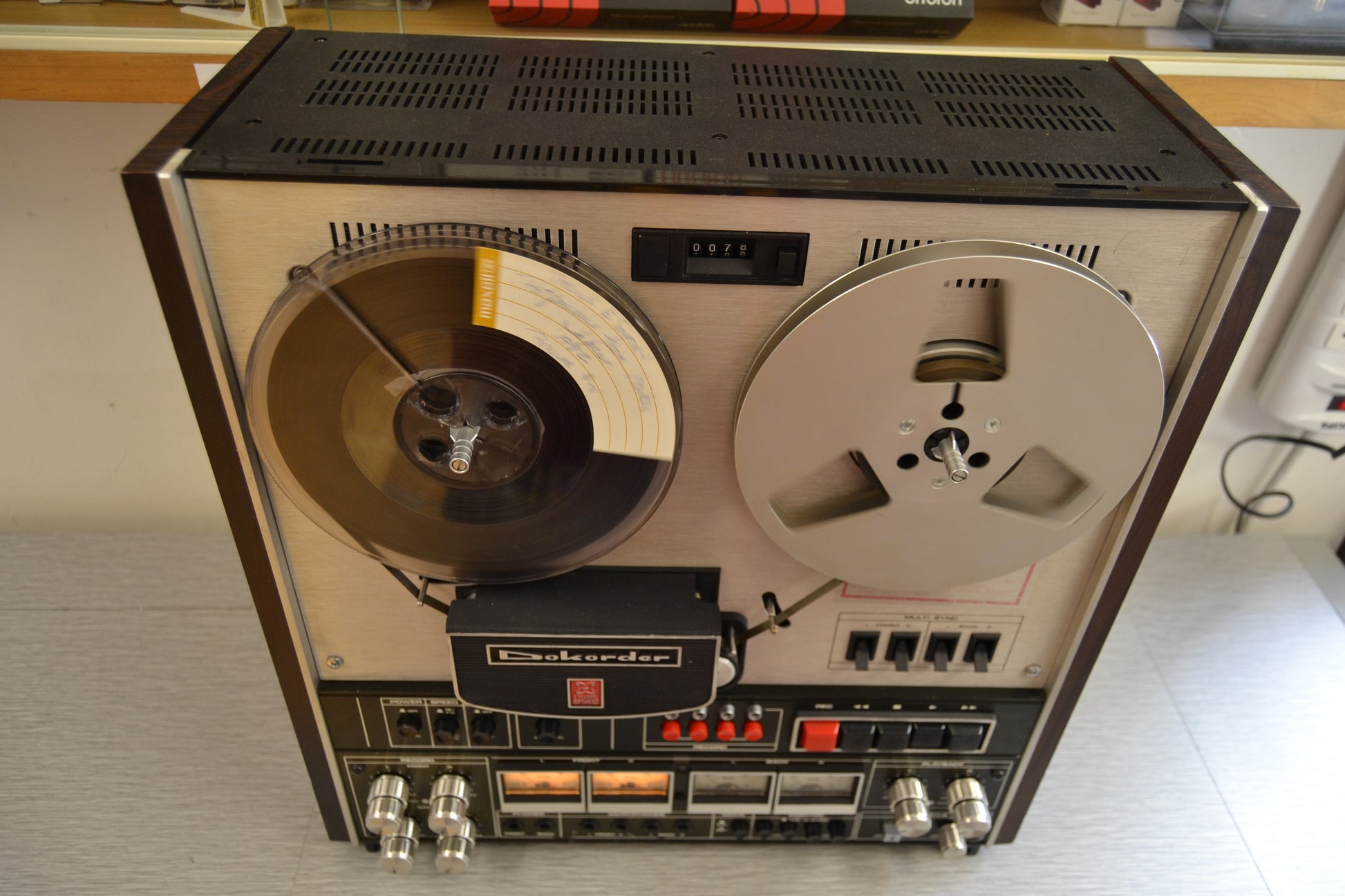

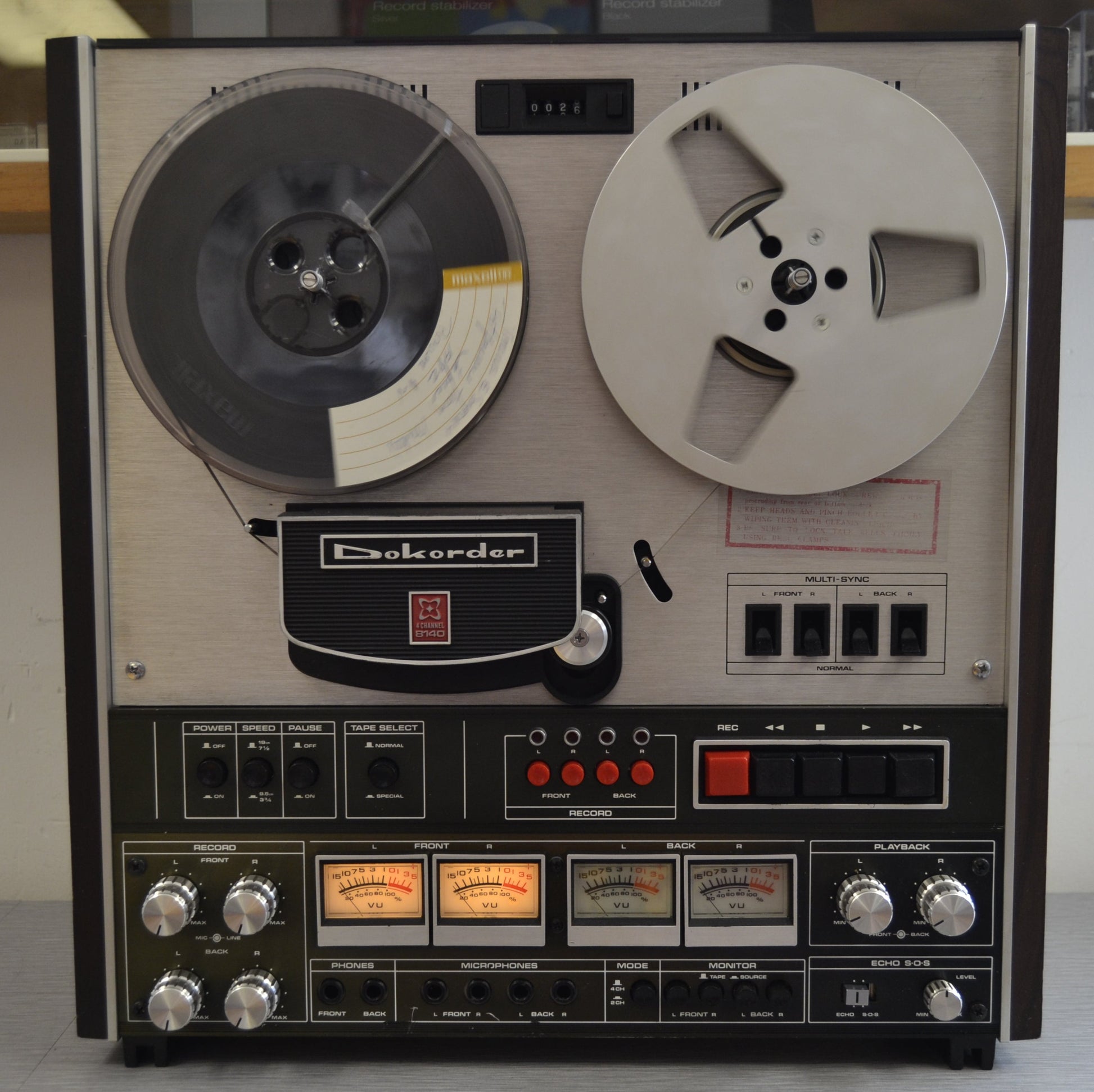

Dokorder 8140 Reel to Reel Recorder 4 Channel

Dokorder 8140 Reel to Reel Recorder 4 Channel

Dokorder

Regular price $350.00 USD
Sale price $350.00 USD Regular price
Sale Sold out

Dokorder 8140

4-Channel Tape Recorder

Description

When you create music a tape recorder can be the most important instrument you own. It's a tool you use to capture and faithfully reproduce your talent.

Like any other tool, you want it to be versatile. With the 8140, what you give you'll get. It's functions and features were carefully chosen and designed to make things easy instead of hard. And so was the price.

You can make discrete 4-channel recordings from any source, get excellent reproduction of quadraphonic tapes, or use the 8140 for conventional 2-channel recording and playback if you choose. In short, the 8140 gives you a lot of ways to express your talent and imagination, without depressing your wallet.

When you're composing, sometimes the whole thing sounds great in your head but there's a clinker or two in the parts when you put it on tape. Or there's a part missing.

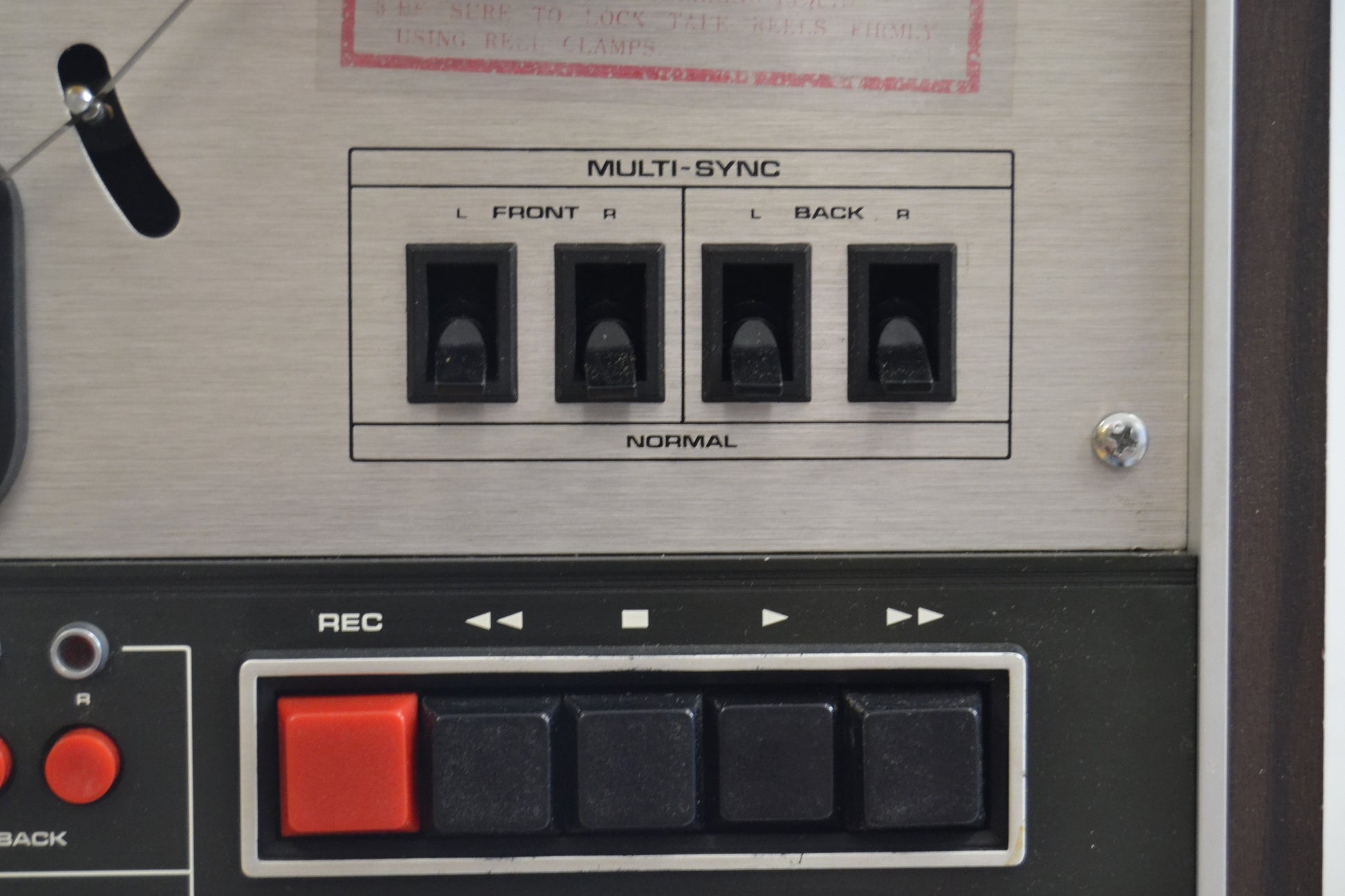

With the 8140's multi-sync function you can overdub tracks individually and in perfect sync with each other. If it's still not right you can re-record any track any time in sync with the others. The multi-sync function takes the pressure off being perfect the first time down. What's good stays, what isn't so good gets done until it is.

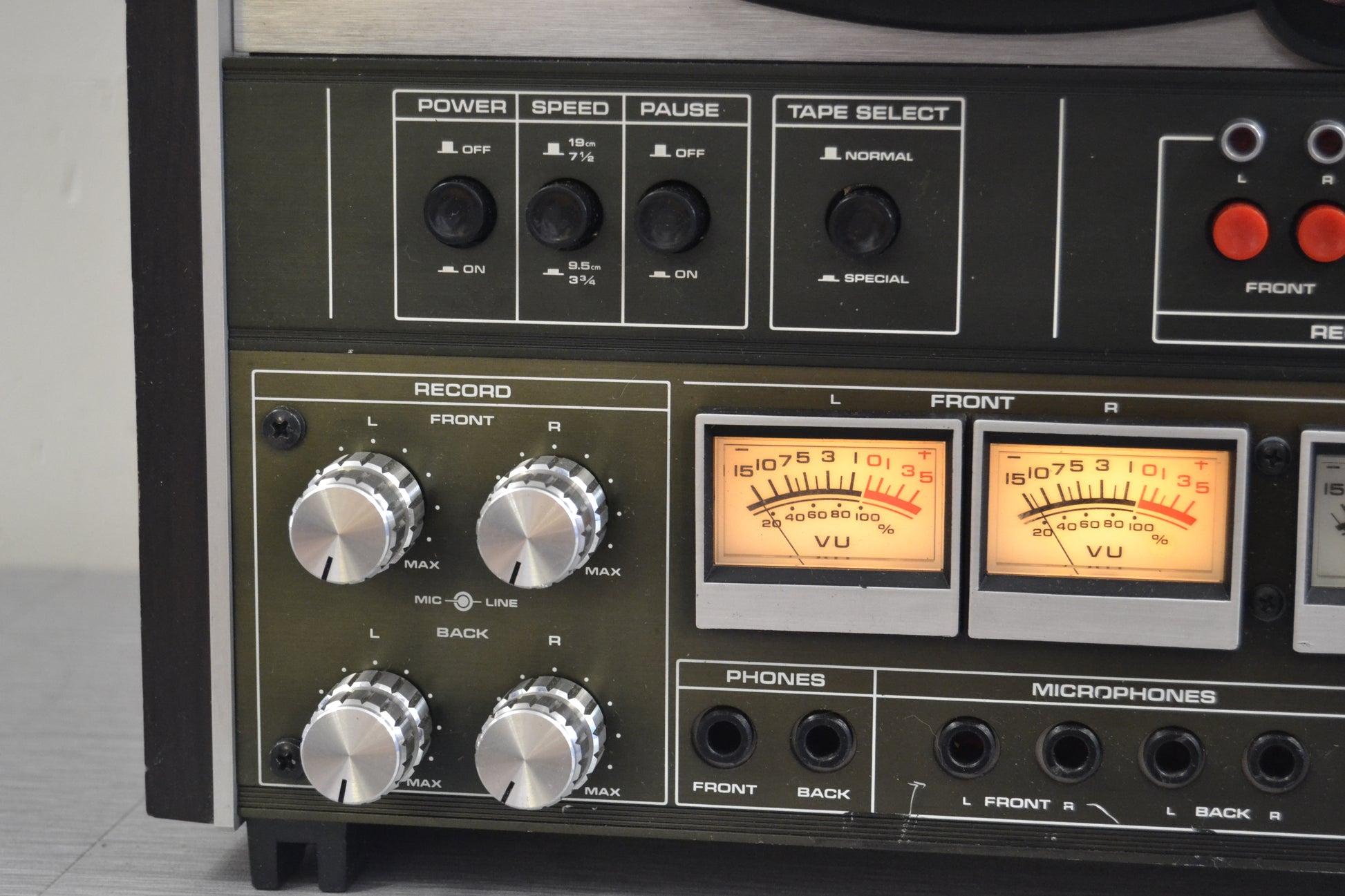

The front panel Tape Select Switch on the 8140 lets you choose the proper pre-set Record Equalizer for normal or low noise/high output tapes.

The tape heads of the 8140 incorporate molybdenum permalloy cores machined to extremely strict tolerances for maximum frequency response. These MBD heads are even more wear resistant than ferrite heads and are backed by an original owner lifetime guarantee. That's how sure we are of the quality of our heads.

The 8140 gives you electronic echo, or slap, for enhancing one or more tracks, and Sound-on-Sound so, effectively, you can expand the number of tracks beyond four. Both features have a variable control and either is possible with a flip of a switch.

The 8140 has three high-performance motors for smooth, quick-response tape handling. The capstan is driven by a heavy duty 4/8-pole, 2-speed hysteresis synchronous motor. The two high torque motors are 6-pole induction types.

An electro-mechanical control system operates the solenoids and motors for smooth, positive operation.

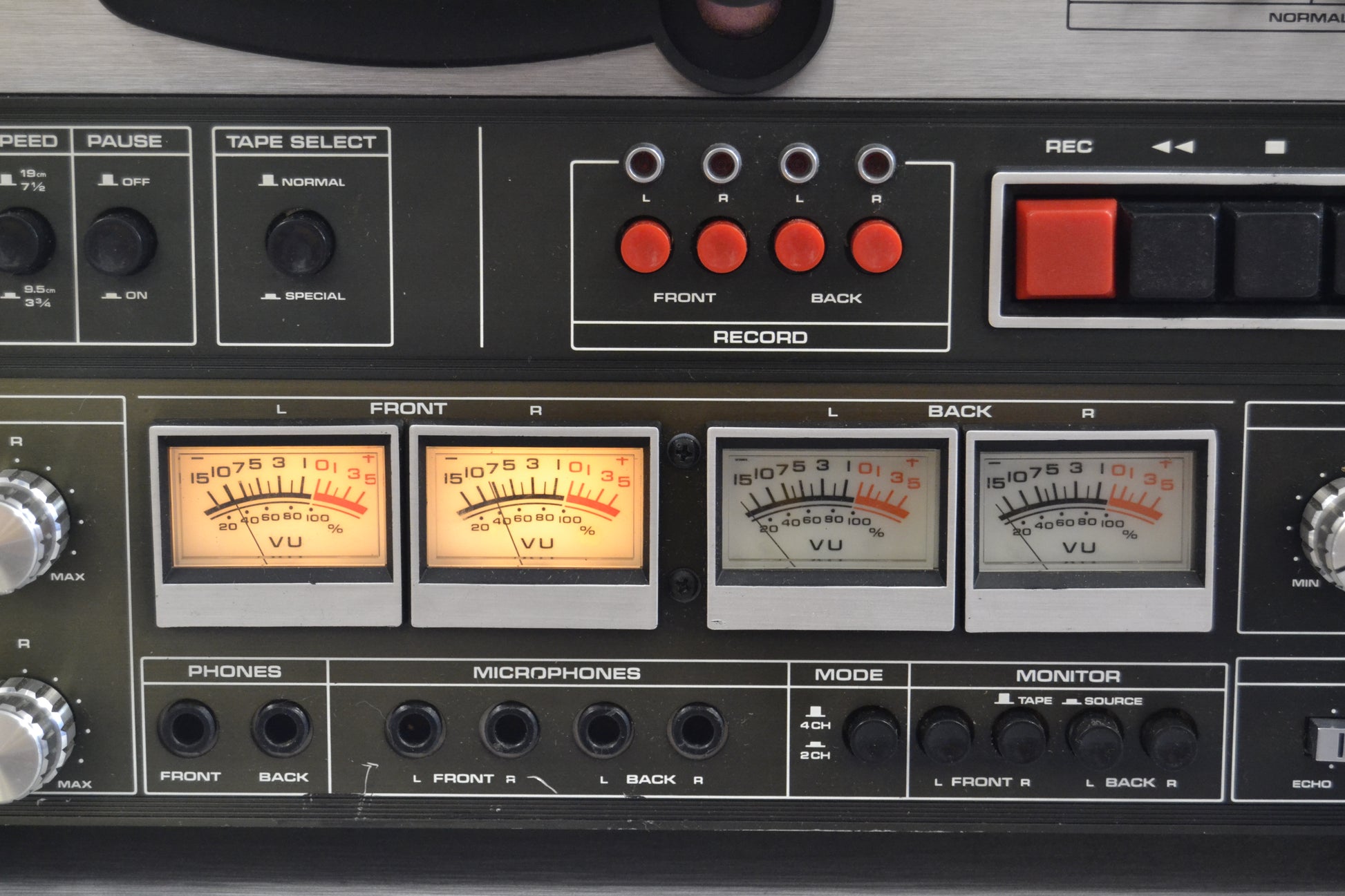

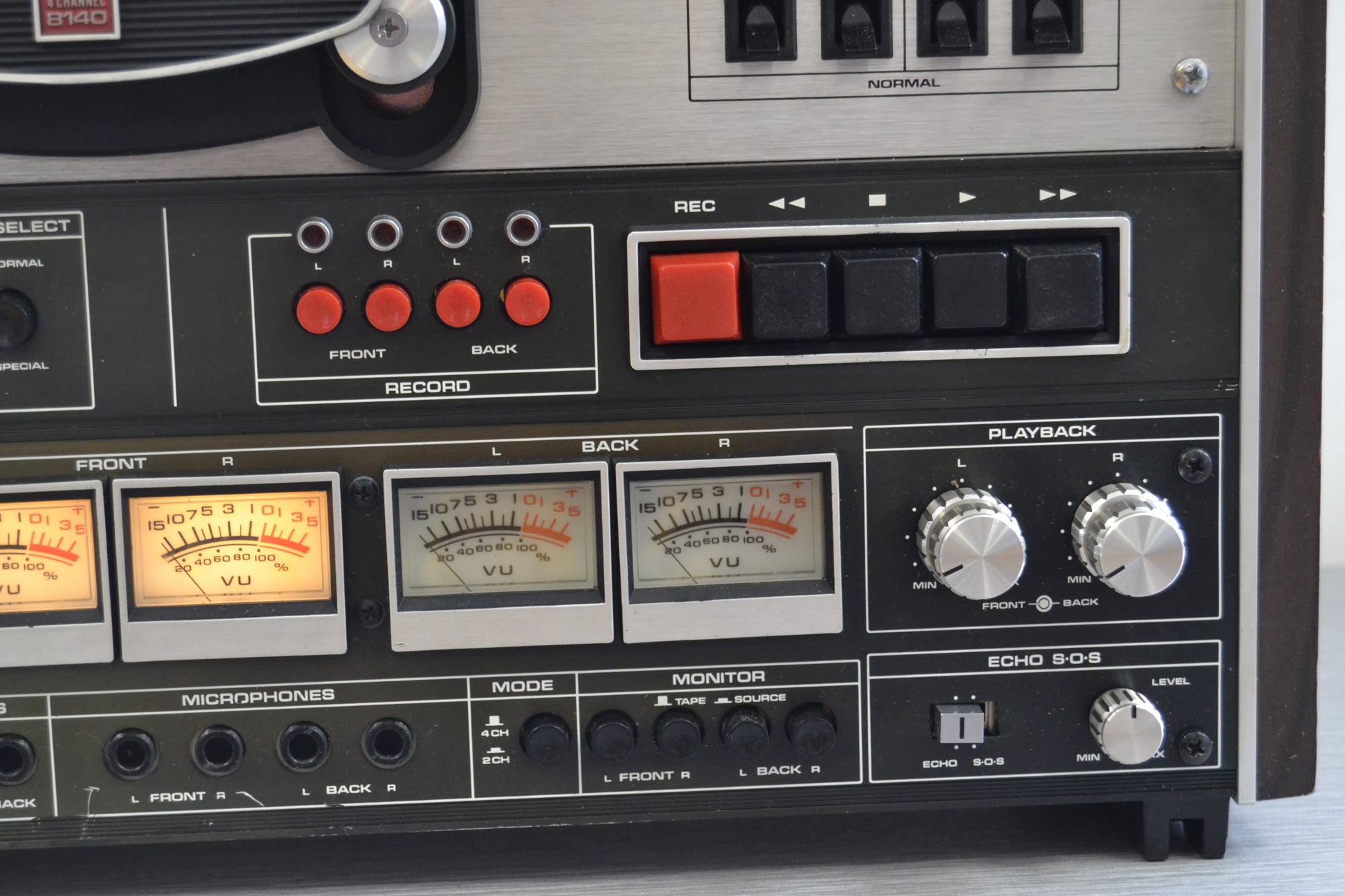

The 8140 also includes quadraphonic headphone jacks and four microphone jacks, interlocking record buttons, four large illuminated meters, tape counter, automatic end-of-reel shutoff and automatic tape lifters.

Out of stock

There’s something undeniably magnetic about vintage audio gear. The tactile weight of milled aluminum knobs, the warm glow of dial lamps, and—above all—the rich, analog sound that today’s sterile streaming boxes can’t quite replicate. But time is merciless: capacitors dry out, switches oxidize, and those gorgeous walnut cabinets lose their sheen. That’s where the art (and science) of our vintage audio refurbishment comes in.

Why Vintage Audio Still Matters

In the golden era of hi-fi—roughly the mid-1960s through the early 1980s—companies like Marantz, McIntosh, Pioneer, Sansui, and Technics were engaged in an arms race of build quality. This was before cost-cutting plastics and disposable designs; amplifiers were over-engineered, receivers were works of art, and turntables were precision instruments.

Owning one wasn’t just about sound; it was about status and permanence. These machines were built to last a lifetime—or two. The irony? Decades later, they often do, provided they’re given the care they deserve.

The Philosophy of Refurbishment

Refurbishment is not just about fixing; it’s about preserving authenticity while ensuring reliability. The goal is to keep that lush, analog character alive without compromising safety or sound quality.

Some enthusiasts chase museum-level originality—keeping every factory component in place. Others opt for sympathetic modernization, upgrading parts that never existed in the ’70s to improve performance. Both approaches can be valid; it depends on your vision.

The Turntable Store refurbishing process.. step by step

Step 1: The Initial Encounter

When we first meet a 40-year-old amplifier, we resist the urge to plug it in right away. That dusty Marantz 2270 might look gorgeous, but old electrolytics and brittle insulation can short instantly under full voltage.

Instead:

  • We inspect for corrosion, burnt resistors, and leaking capacitors.
  • We use a Variac (variable transformer) to bring up voltage slowly, reforming capacitors rather than shocking them back to life.
  • We check fuses—not just for continuity but for correct ratings.

Tip: A faint musty smell? That’s often the scent of old phenolic boards, not trouble. But a burnt smell? That’s trouble.


Step 2: Deep Cleaning & Control Detox

Dust is the enemy of good sound, that is why we clean the interior carefully with compressed air and a soft brush.

The real magic comes with switches and potentiometers. Over decades, oxidation builds up, causing scratchy controls and dropouts. A deep contact clean in each pot and switch, followed by vigorous cycling, often restores silky-smooth operation.

Step 3: Electrical Resurrection

This is where science meets art:

  • Capacitors: Electrolytic caps often need some attention. We replace out-of-spec caps with high-quality modern equivalents (Nichicon, Panasonic), avoiding over-capacitance unless the power supply can handle it.
  • Resistors: Carbon comp resistors drift over decades. Measure and replace out-of-spec parts.
  • Transistors: Certain vintage transistors (e.g., 2SC458) are notorious for noise. We do swap defective ones for modern low-noise equivalents.
  • Relays & Lamps: Speaker relays oxidize; replace or clean contacts. Dial lamps? Upgrade to warm LEDs for a factory glow without the heat.


Step 4: Cosmetic Glory

Refinishing the walnut cabinet can transform a unit. We do use real wood oil or Danish oil, not polyurethane. We clean the glass dial carefully; those silkscreened letters are fragile.

Knobs? We polish with metal cleaner, but never use abrasives on anodized aluminum.

Faceplate lettering? We avoid harsh chemicals—just mild soap and a microfiber cloth.


Step 5: Calibration & Sonic Check

After the repair and cleaning, it’s time to dial in the performance:

  • We do adjust bias and DC offset on amplifiers for stable operation.
  • On turntables, we re-lube bearings, replace belts, and check speed accuracy.
  • On Cassette Decks and Reel to Reels, we replace belts ( if needed ), we clean and demagnetize the heads before the alignment process ( a must ! )

When done right, the result is astonishing: a sound that breathes—liquid mids, velvet highs, and bass with a tactile presence that modern gear rarely matches.


Our promise for Audiophile-Level Results

  • We Avoid Cheap Parts: That $5 eBay capacitor kit? Hard pass. We use reputable brands.
  • We Don’t Over-Polish: Patina is part of the charm. We aim for “well-loved,” not “plastic surgery.”
  • We Upgrade Discreetly: If we must modernize (like adding gold-plated RCA jacks), we keep it tasteful and reversible.


Why It’s Worth It

The payoff isn’t just sonic—it’s emotional. Restoring a 1970s Marantz or Sansui is like bringing a classic car back to life. Every glowing dial lamp, every smooth rotation of a volume knob, connects you to an era when music mattered enough to build machines like this.

And when you drop the needle on your favorite record and hear that warm, enveloping sound, you’ll know: this wasn’t just a repair. It was a resurrection.
