Harman Kardon EQ8
Ten Octave Graphic Equalizer (1983-91)
Description
Even the best stereo system can only provide flat frequency response in a perfect listening environment.
Unfortunately, most living rooms are far from perfect. Windows, walls, and bare floors make the highs sound shrill. Upholstered furniture and plush carpets tend to absorb the highs. Walls adjacent to speakers can make the bass sound muddy. If the balance between soft and hard surfaces isn't perfect, the system's frequency response won't be perfect either.
That's why Harman Kardon has created the EQ8. It allows compensation, octave by octave, for all of the imperfections found in listening environments. It allows for boost or cut of each octave by up to 12dB, giving as much range as is ever likely to be needed for contouring of sound.

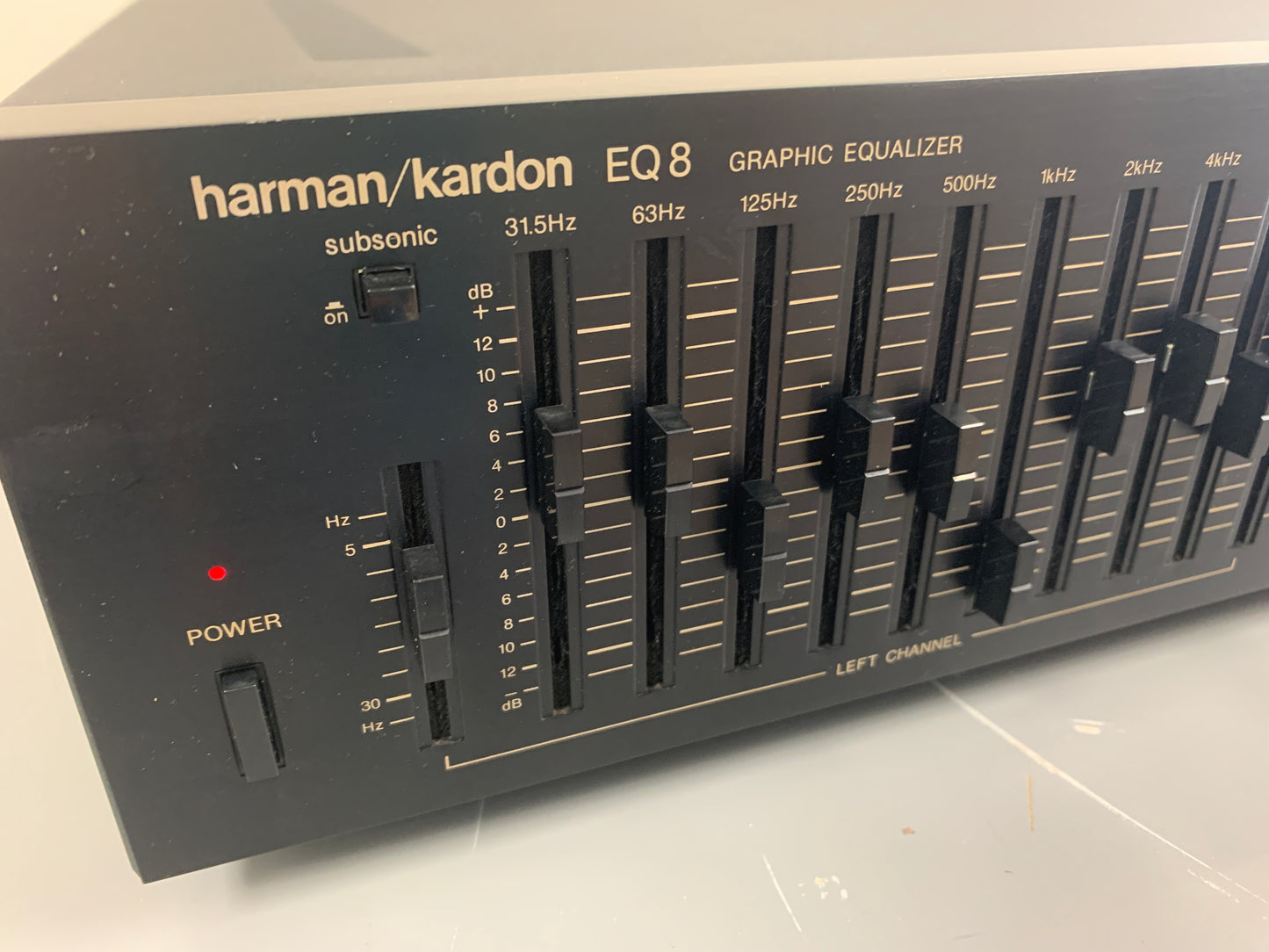

The subsonic filter is continuously adjustable from 5Hz to 30Hz. By using the lowest turnover frequency, which successfully eliminates any subsonic problem, the user can minimize the filtering effects on the system's bass response.

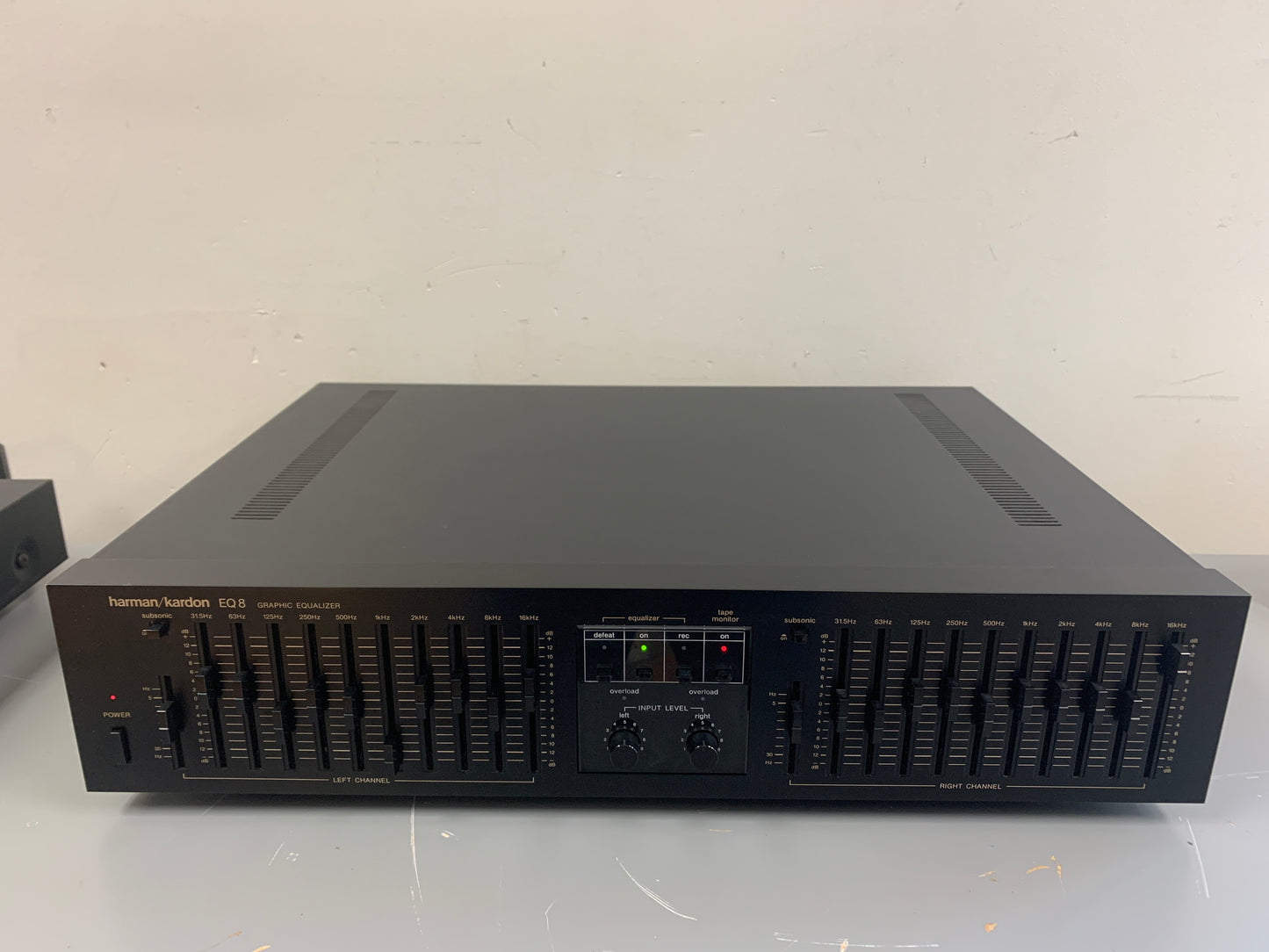

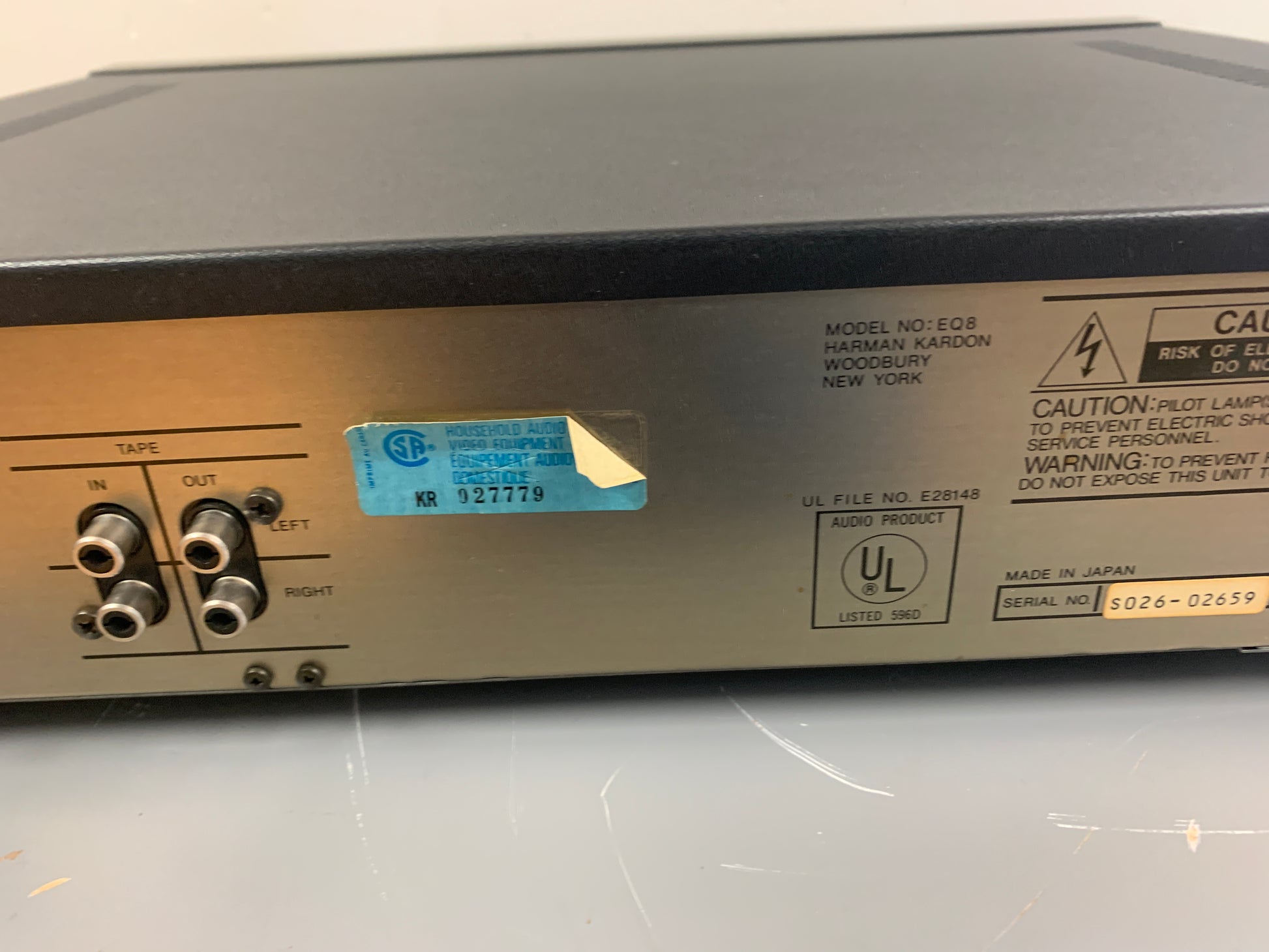

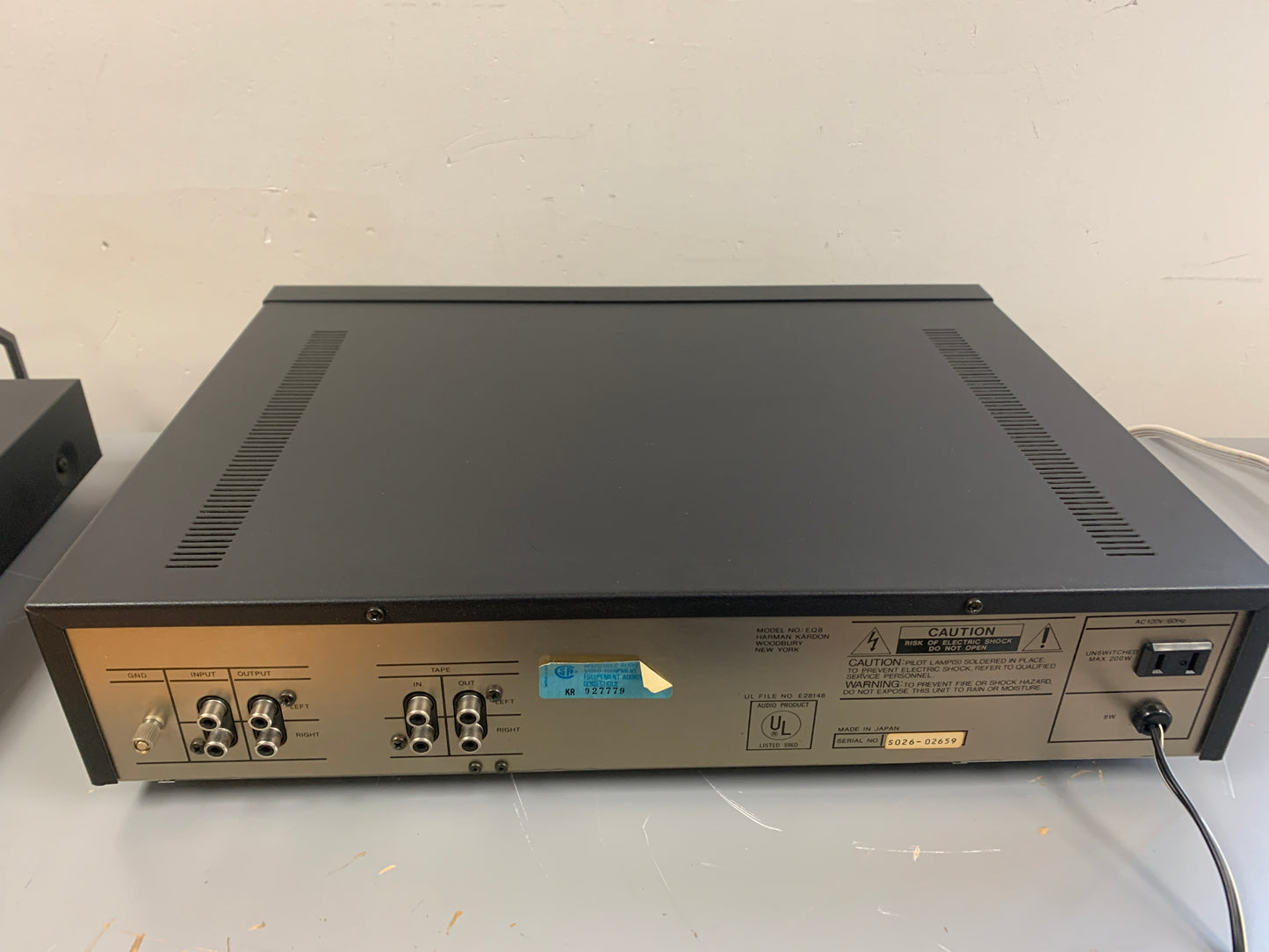

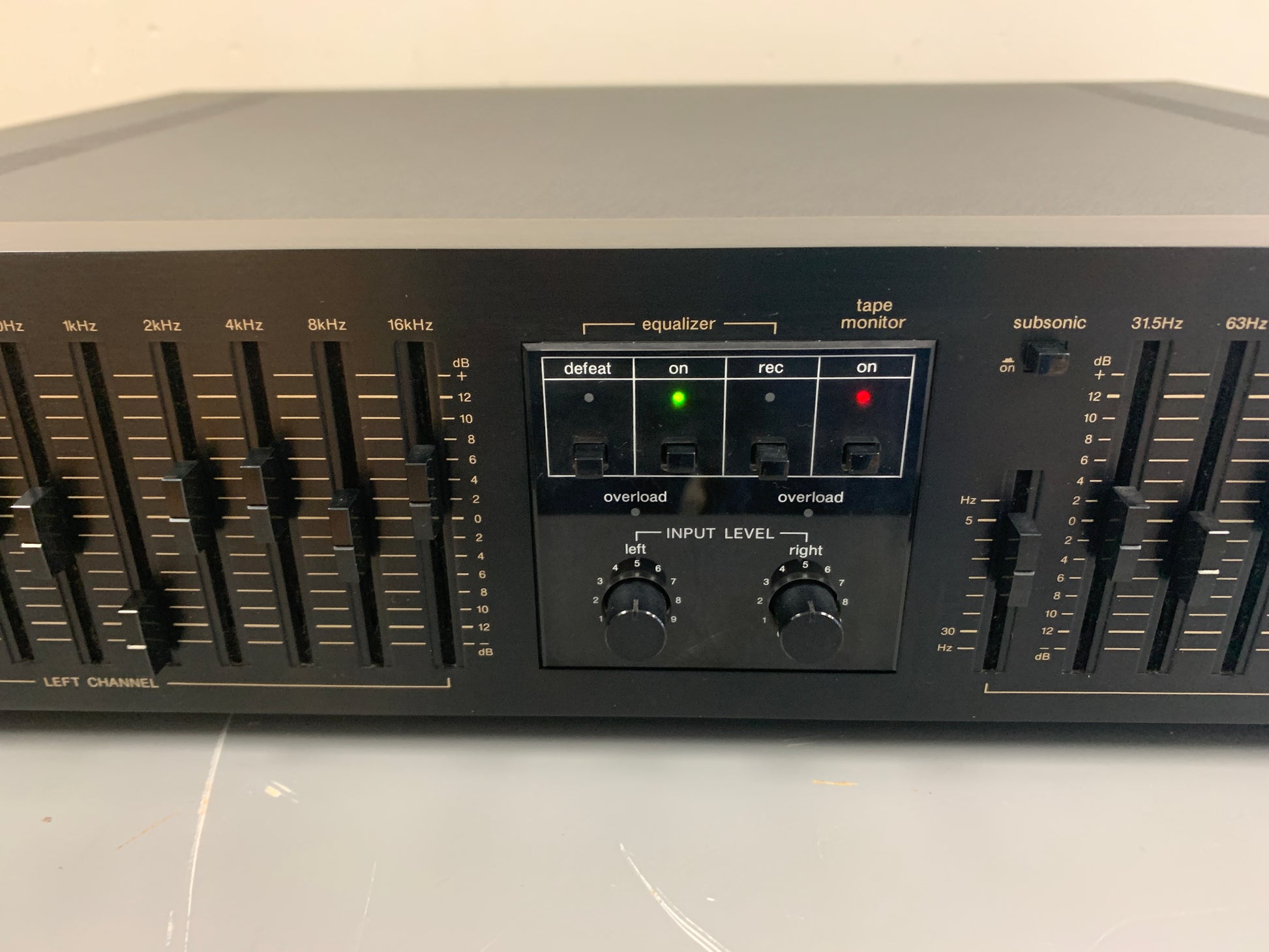

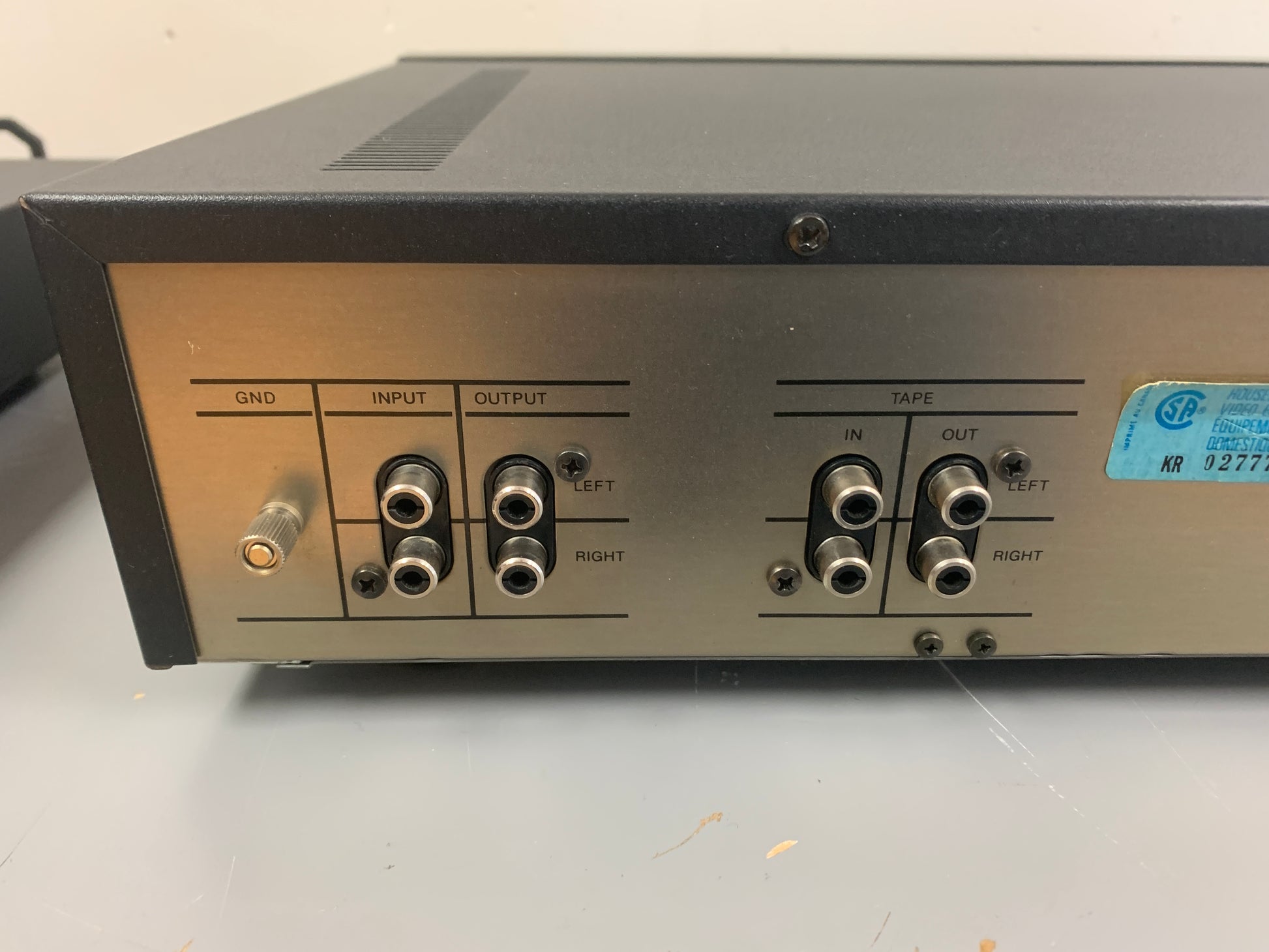

The EQ8 has input level controls and overload indicators for easy comparison of equalized sound. It also has accommodations for an extra tape monitor loop. In addition, the input sensitivity (135mV) and overload level (7 Volts) allow the use of the EQ8 in either the tape monitor loop, or between preamp output and main input.
In addition to enhancing a home component system, the EQ8 can equalize a cassette for a car or portable.
The EQ8 from Harman Kardon. It's the perfect equalizer, for the imperfect listening environment.
Specifications
Frequency response: 1Hz to 140kHz
Signal to Noise Ratio: 105dB
Total harmonic distortion: 0.01%
Control Range: ± 12dB

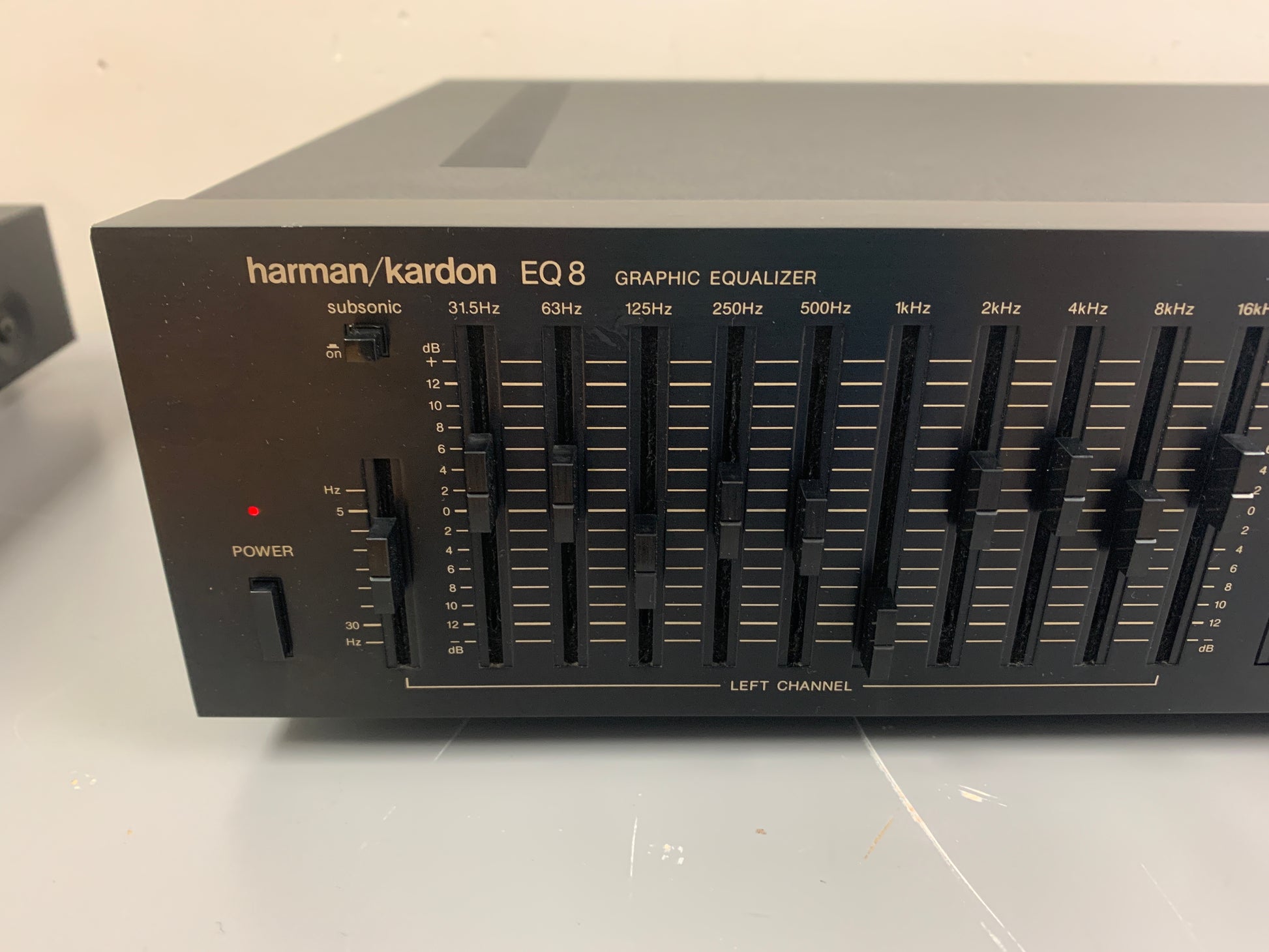

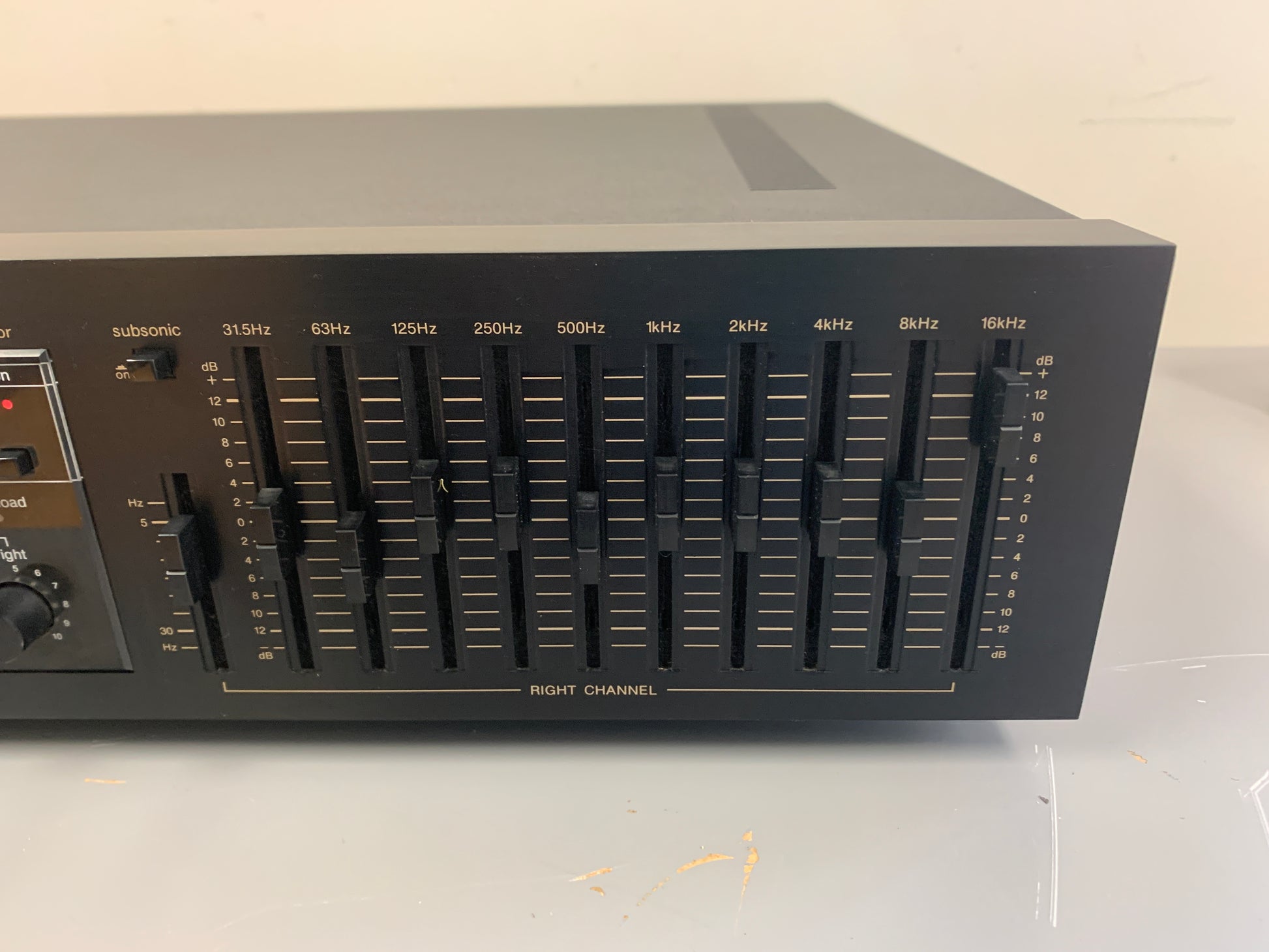

Frequency Bands: 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
Dimensions: 443 x 102 x 341mm
Weight: 4.5kg
