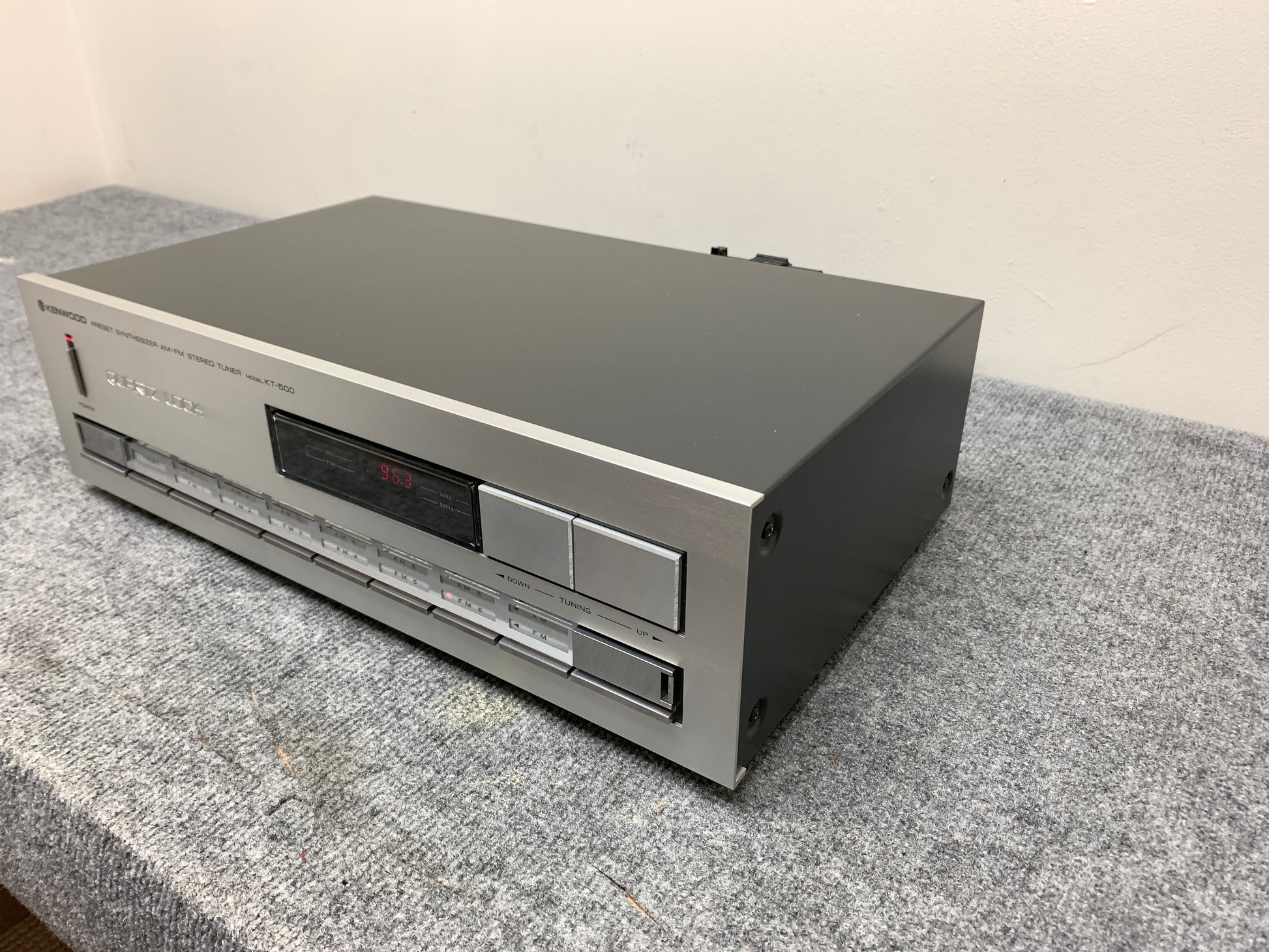

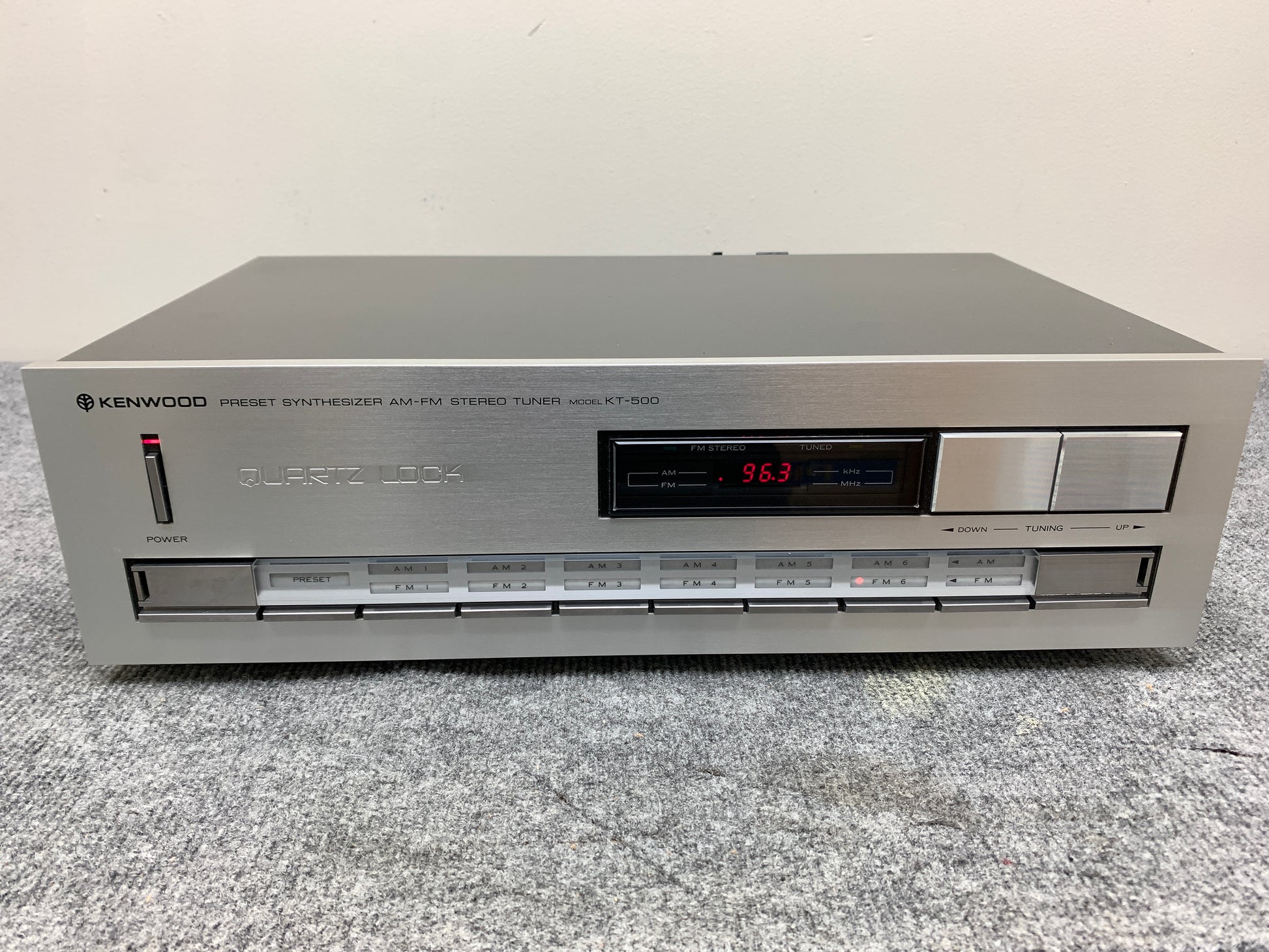

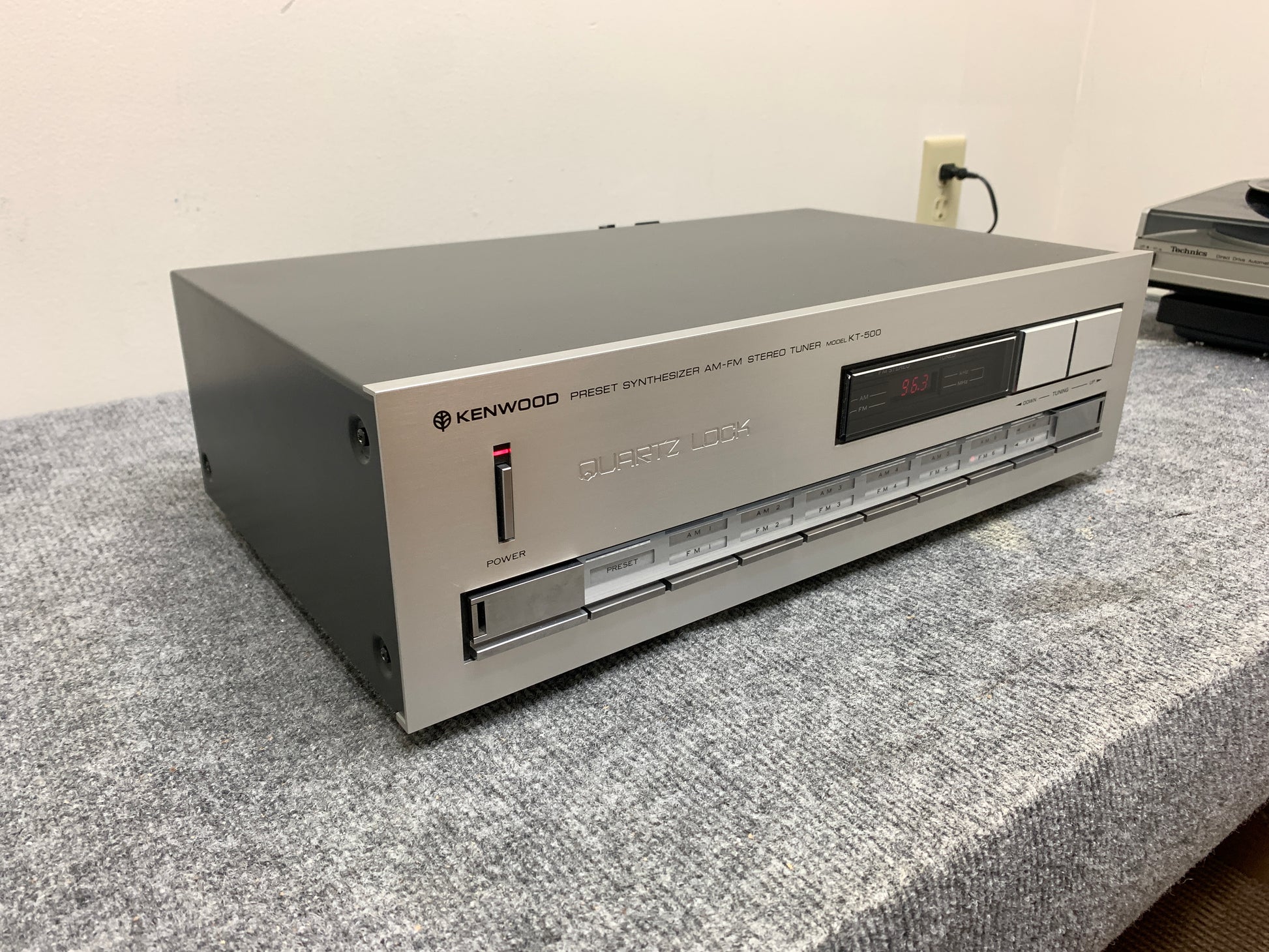

Kenwood KT-500 Stereo Tuner * Box

General

• Manufacturer: Kenwood
• Model: KT-500
• Type: Tuner
• Years of manufacture: 1980 - 82
• Made in: Japan
• Color: Silver / Grey

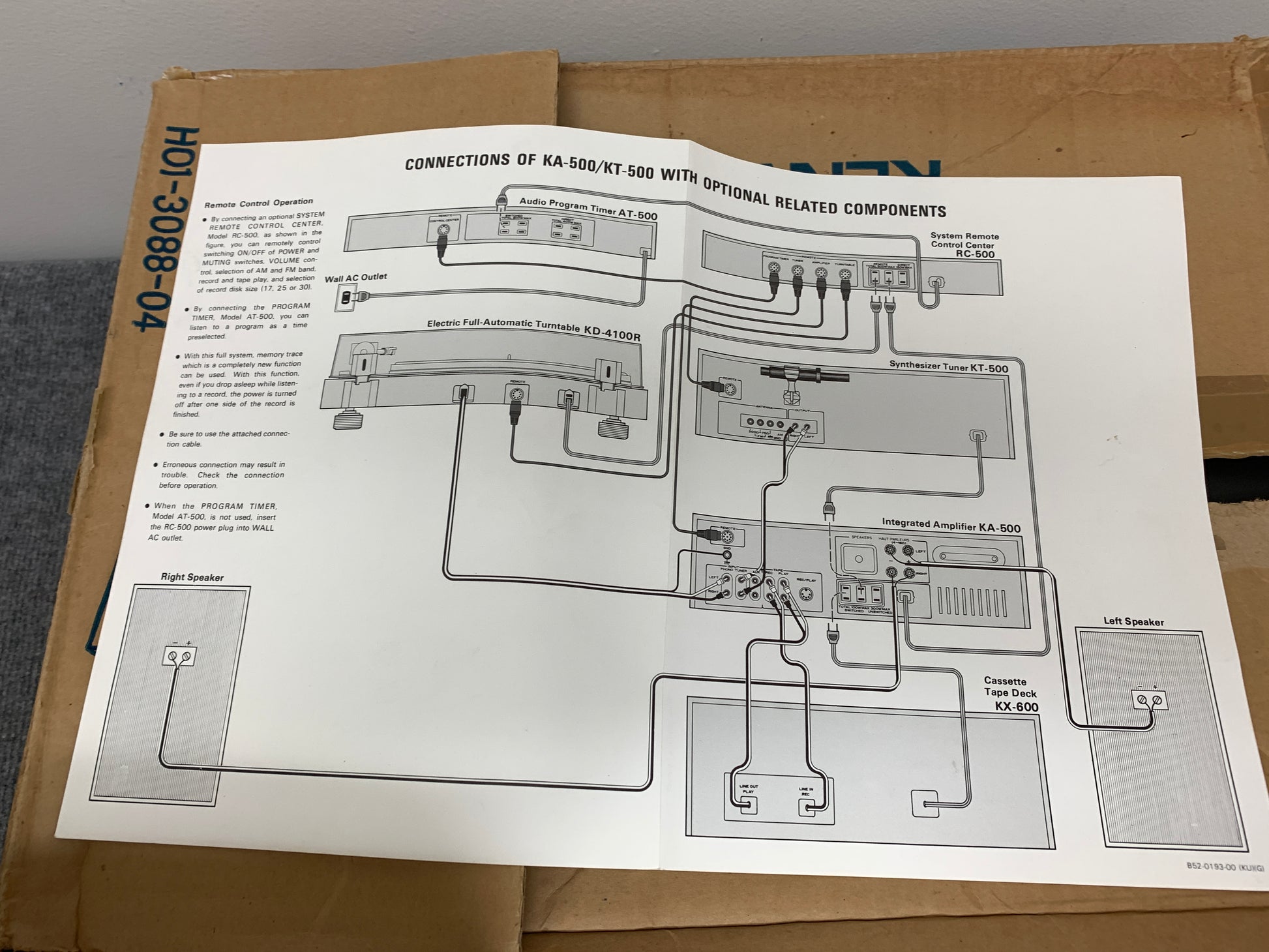

• Remote control: RC-500, optional
• Power consumption: 22W
• Dimensions: 440 x 52 x 247 mm WxHxD
• Weight: 4.3 kg
• Original price approx.: 550 DM

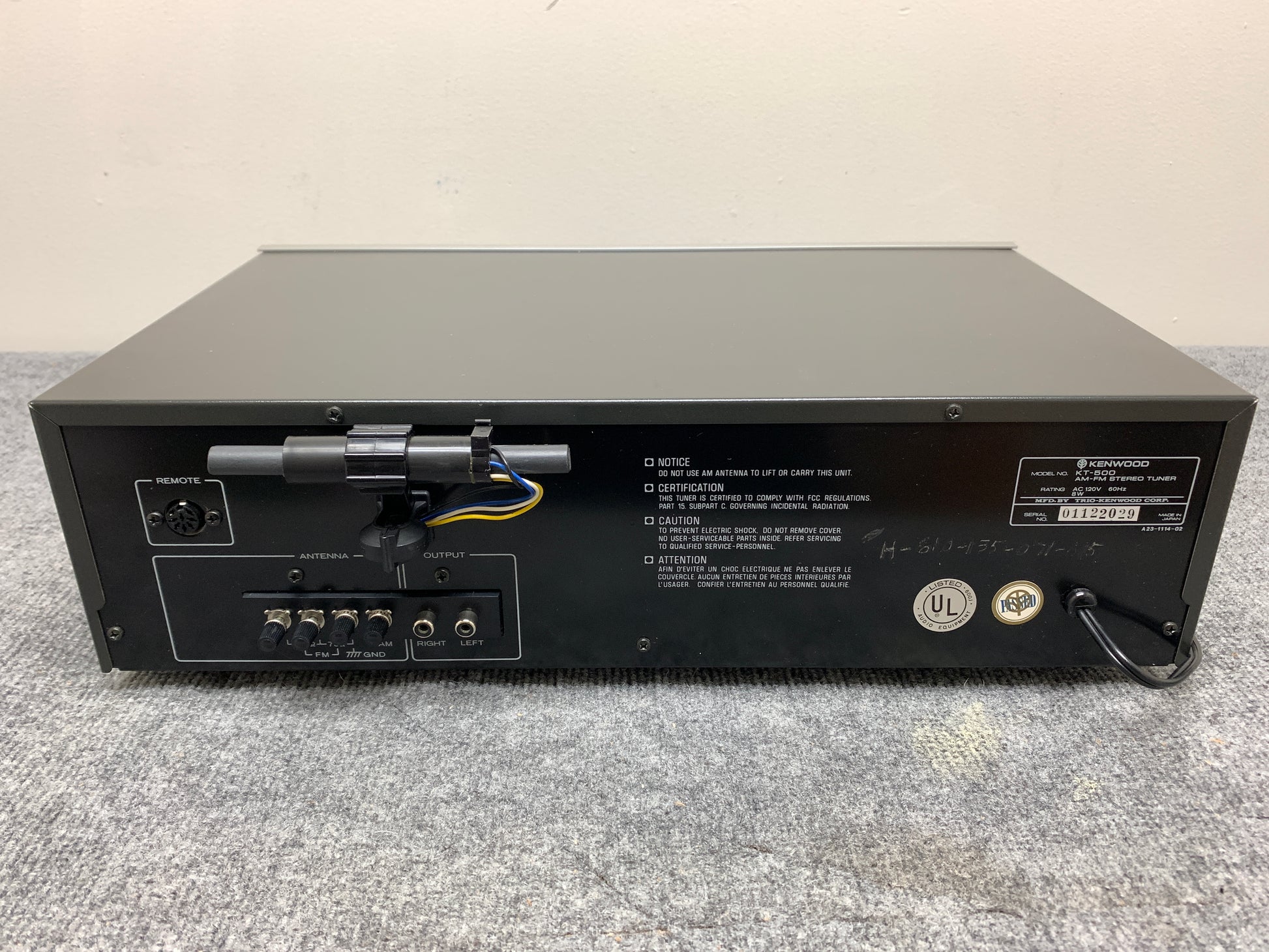

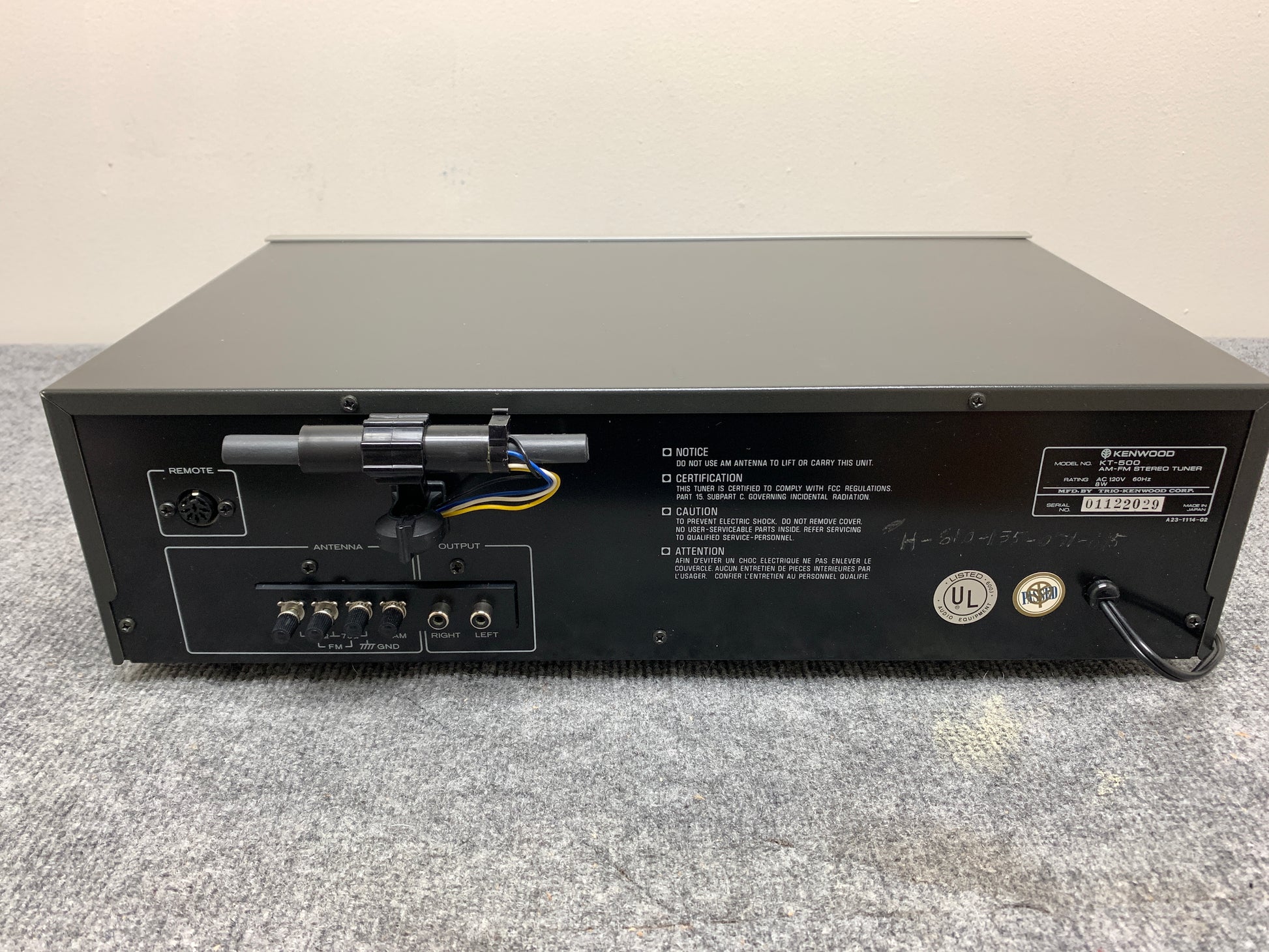

Connections

• Number of inputs:

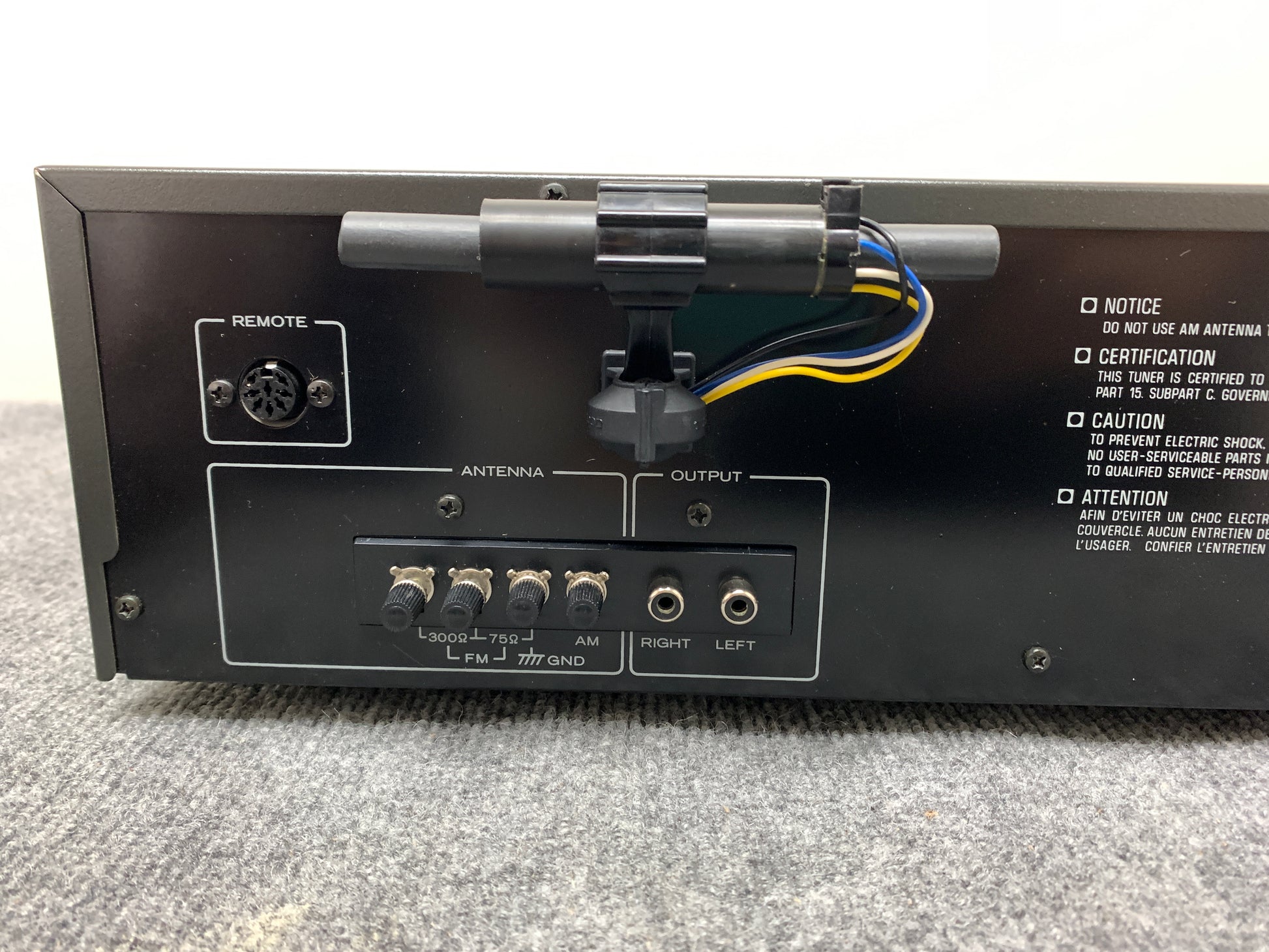

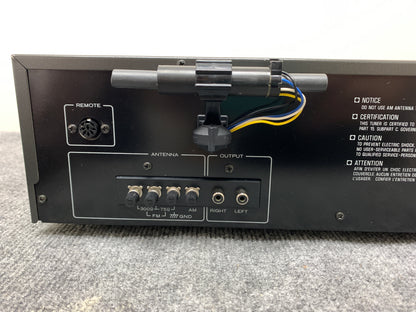

  • Antenna FM (75 Ohm Unbalanced / 300 Ohm Balanced), AM.
• Number of outputs:
  • Tape Rec: 150 mV / 100 Ohm

Technical Data

• Reception: (VHF/MW)
• Frequencies:
  • VHF: 87.5-108MHz

MW: 535 - 1610 KHz

• Frequency response: 30Hz-15kHz +0,2dB,-3dB
• Input sensitivity(mono/stereo): 0.9µV/30µV

Distortion factor(Mono/Stereo): 0.15%/0.2% Signal to Noise Ratio(Mono/Stereo): 70dB/66dB

• Channel separation:
  • 250Hz: 40dB

1kHz: 40dB

• • 6.3kHz: 35dB
• selectivity: 80dB
• Co-wave selection: 1.5dB
• Spurious wave selection: 75dB
• Image frequency attenuation: 40dB
• IF attenuation: 80dB
• AM suppression: 55dB

Special Features

• Electronic tuning aid

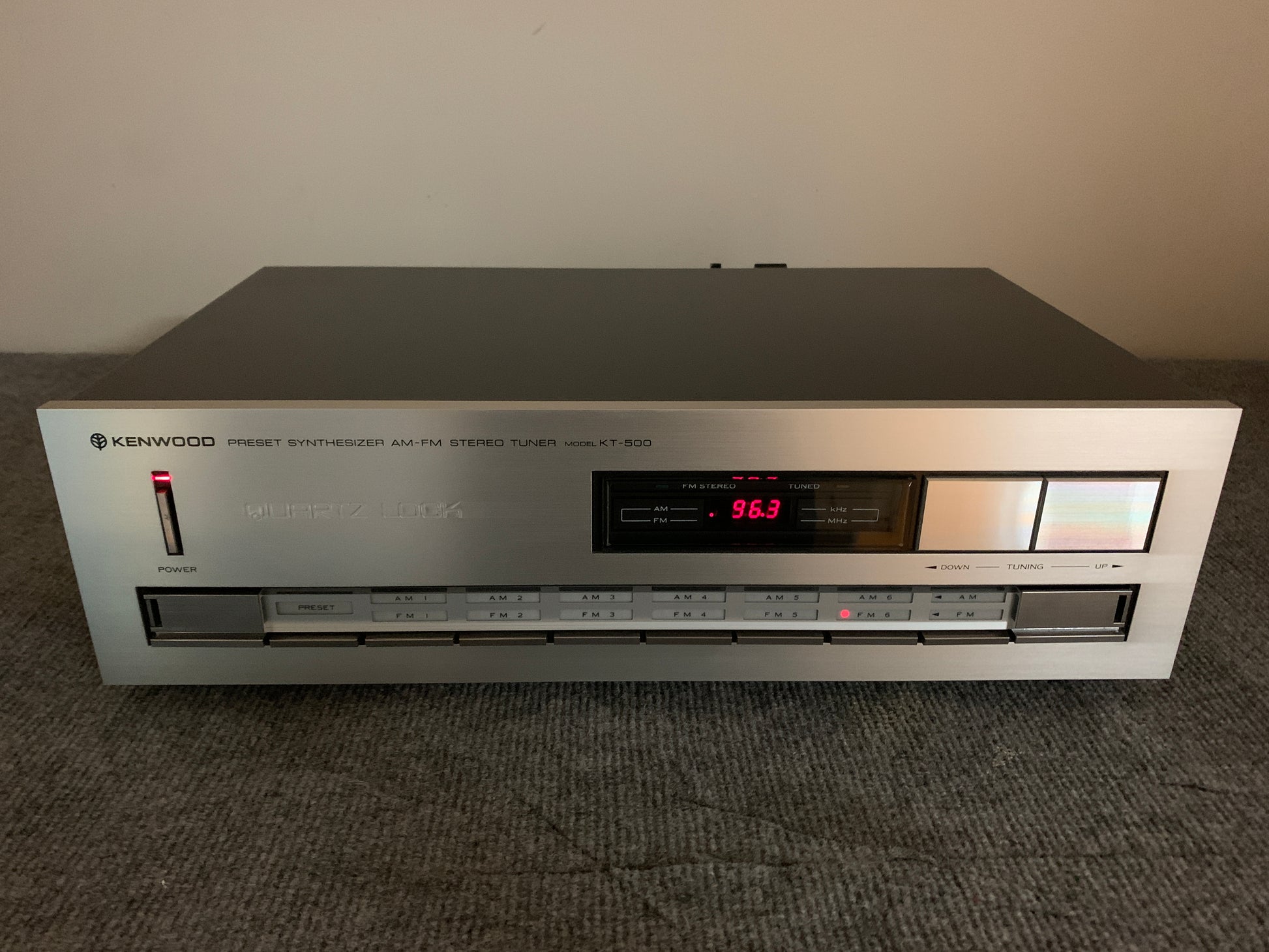

• Digital frequency display
• High power medium wave section
