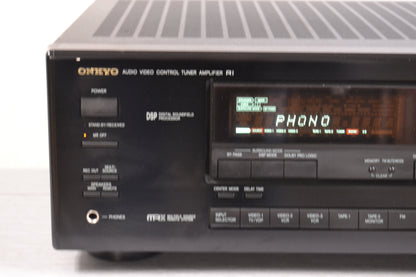

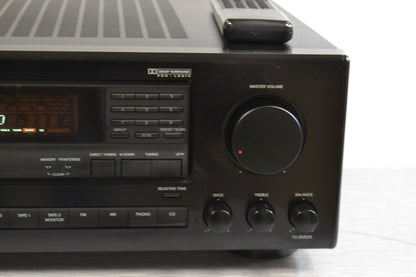

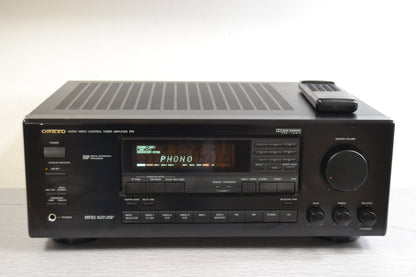

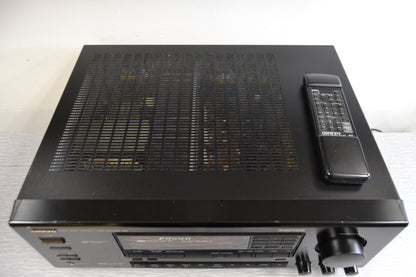

Onkyo TX-SV525

AV Control Tuner Amplifier (1995-96)

Specifications

Tuning range: FM, MW

Power output: 80 watts per channel into 8Ω (stereo)

Surround output: 60W (front), 60W (center), 20W (rear)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.08%

Damping factor: 60

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 80dB (MM), 100dB (line)

Output: 150mV (line), 1V (Pre out)

Speaker load impedance: 6Ω (minimum)

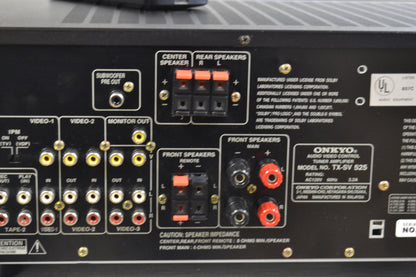

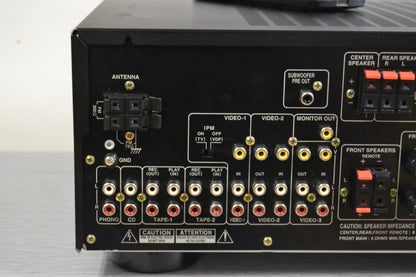

Video Connections: composite

Dimensions: 455 x 170 x 389mm

Weight: 11.8kg

Finish: black, silver

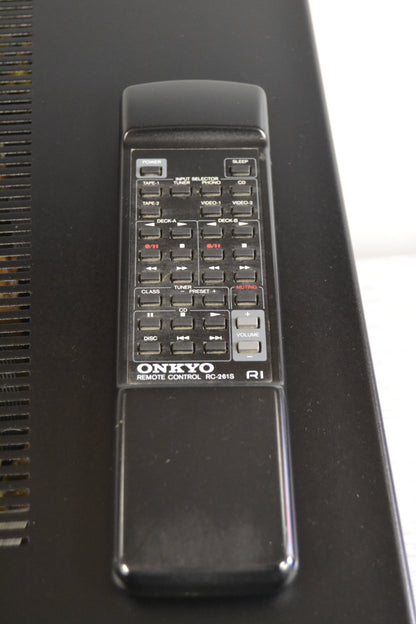

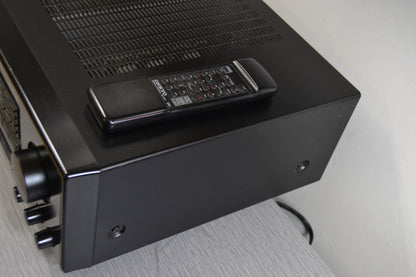

Accessories: remote control
