Specifications (Catalog specifications for sales)
Power requirement: AC; 90~109, 110~120, 200~219, 220~250V, 50/60 Hz
Power consumption; 6W
8-track 2-channel stereo recording and
Track system: playback
Recording system: AC bias, AC erase
Operation:
‘Tape speed: 3-3/4 ips.
Wow and flutter: 0.17% (WRMS) Frequency response: 30~13,000 Hz Signal to noise ratio: 45dB

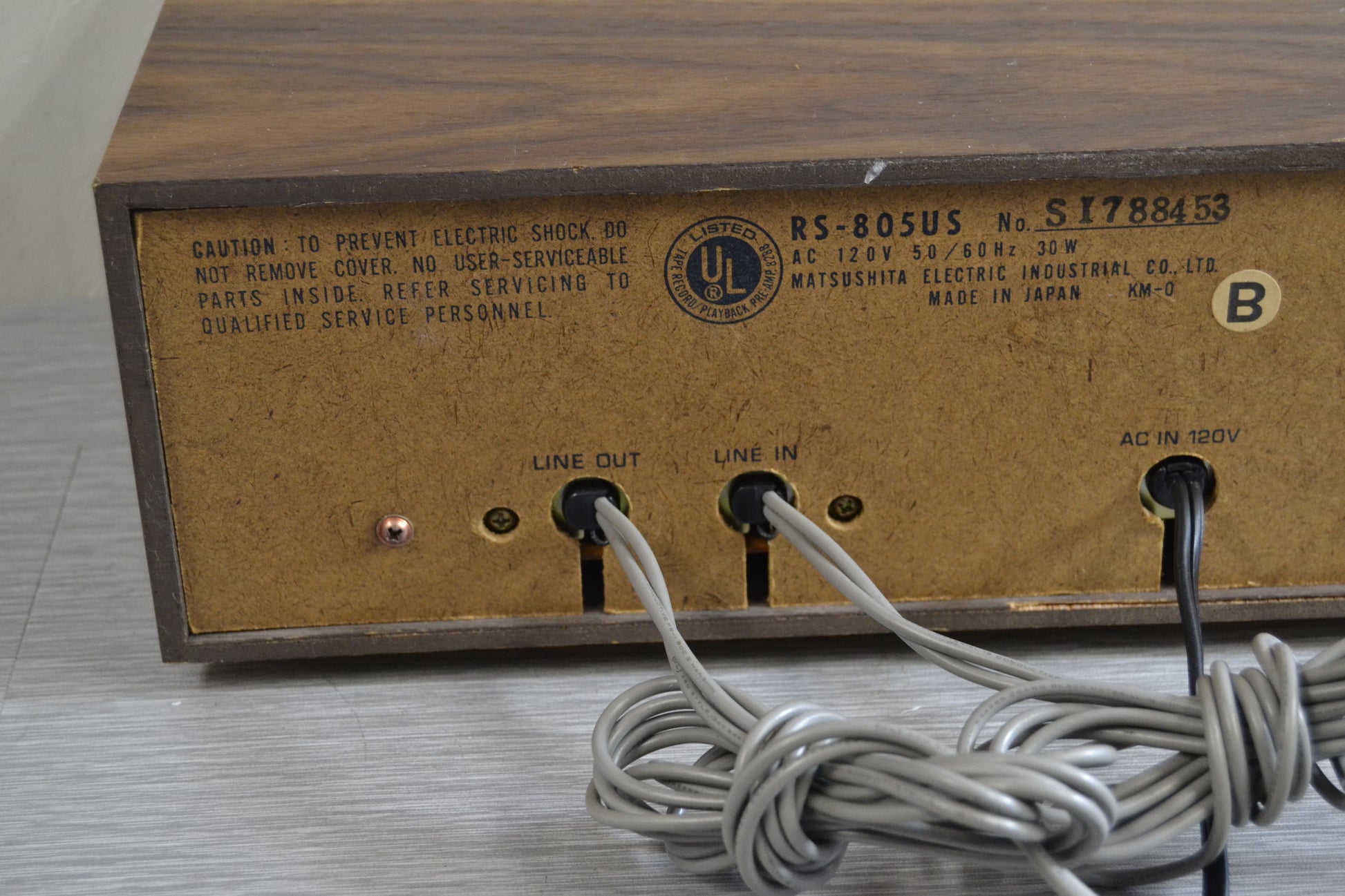

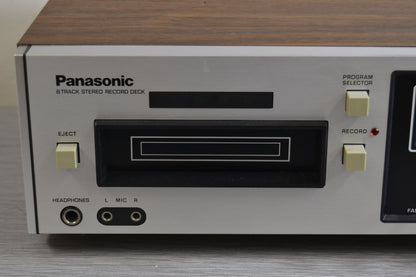

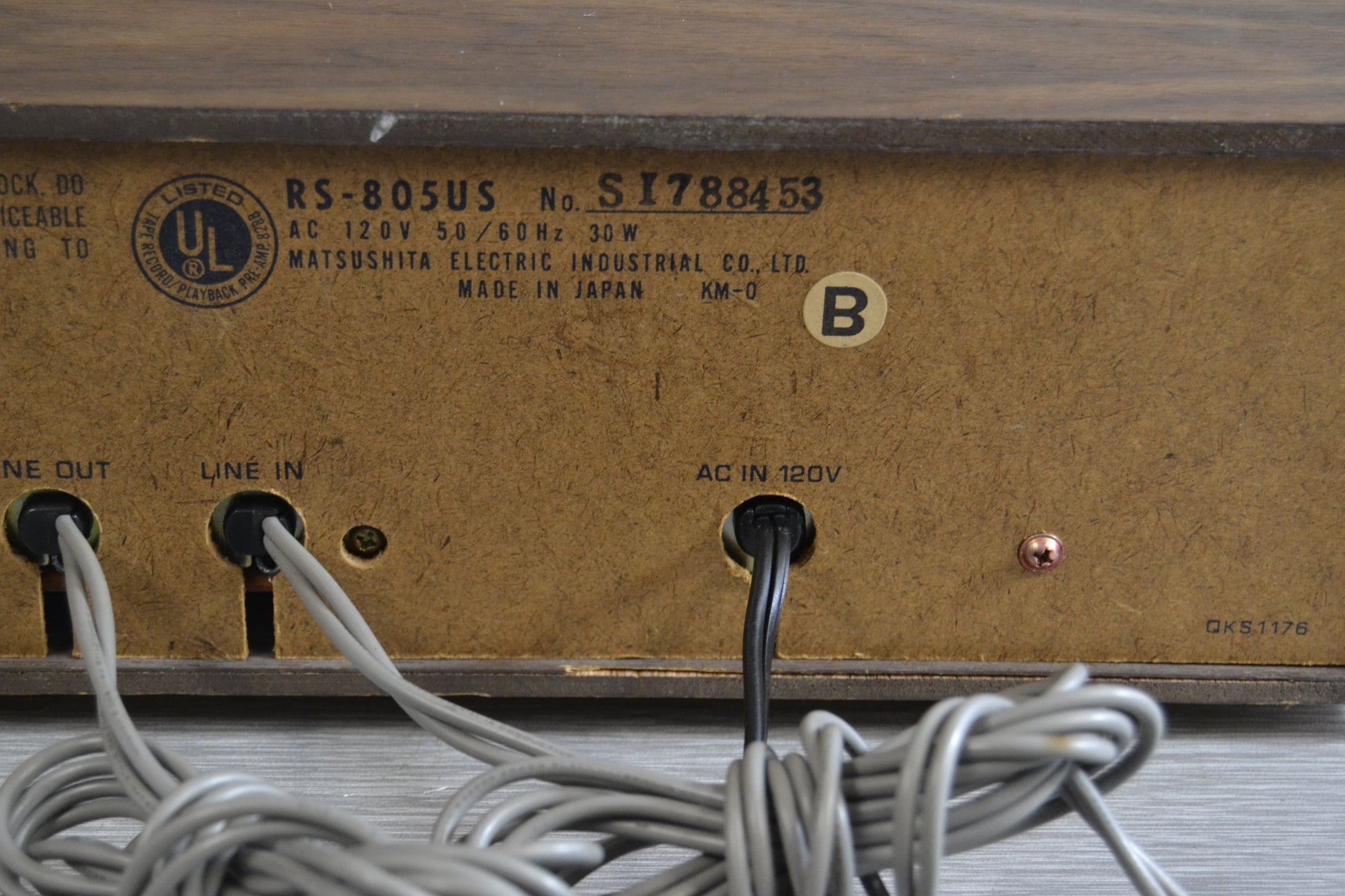

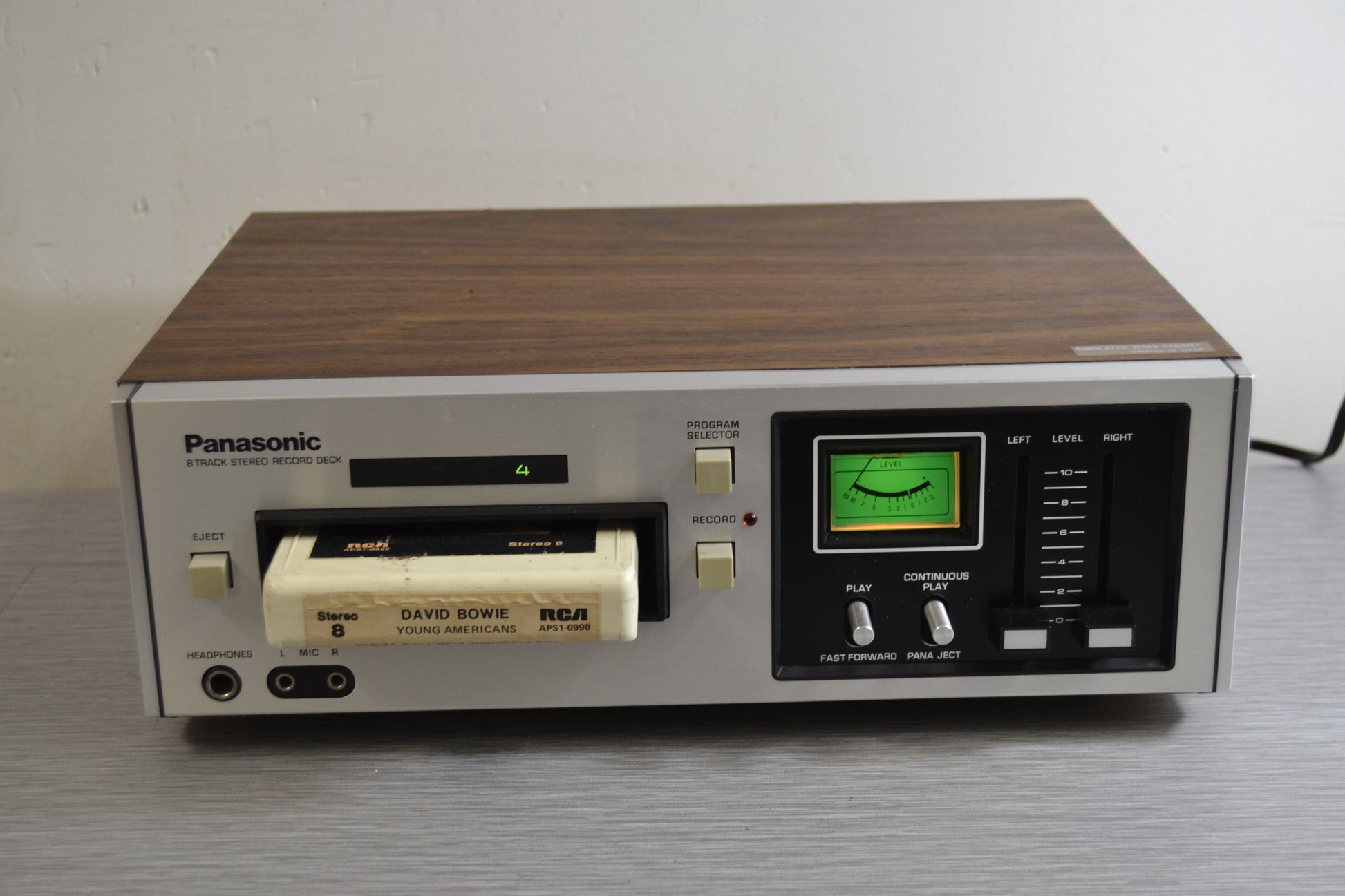

of Model RS-805US
Inputs:
Outputs:

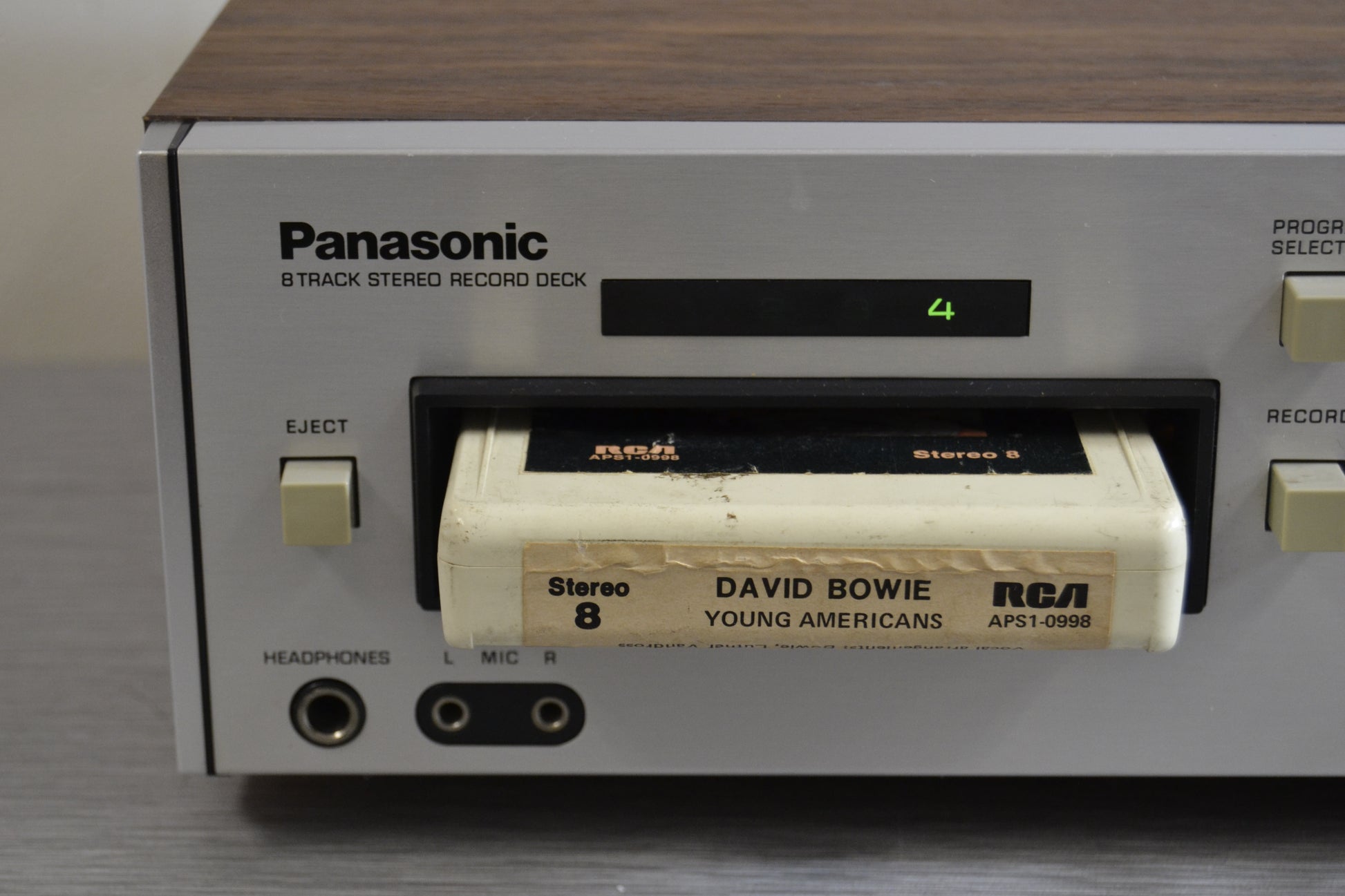

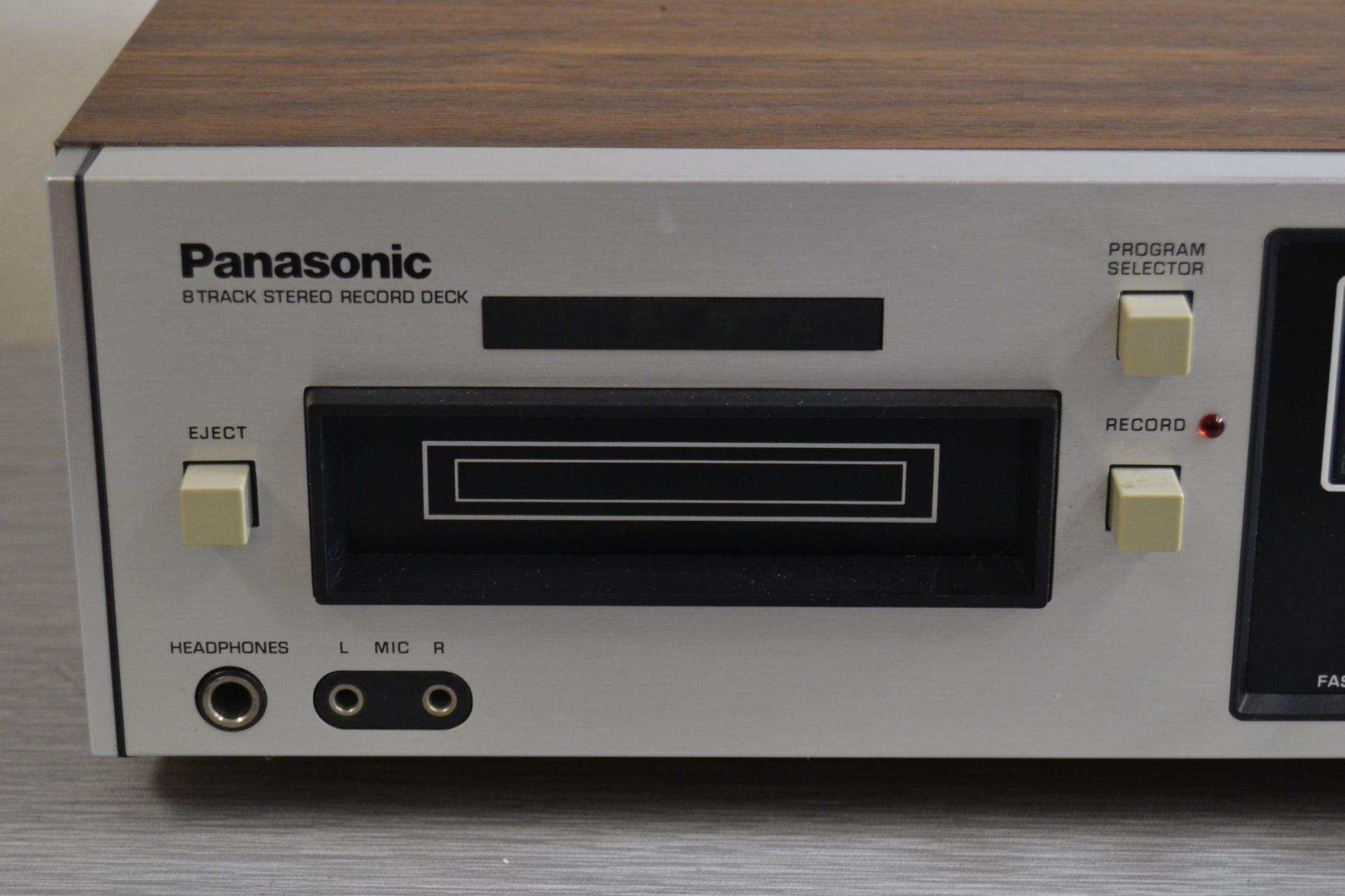

Cartridge slide-in system with Pana-Ject/ continuous play mechanism and remote control eject/program | .
REC/P.B connection: Motor:
Head:
Fast forward time: Program time: Dimensions:
Weight:
for PX.
MIC: 0.28mV applicable microphone impedance 200~6000. (recommended microphone RP-8135)
LINE; 50mV/1OOKQ
LINE: 0.6V (at O VU) load impedance 50 KQ over :
HEADPHONES; output level 45mV/80, (at O VU)
DIN 5P terminal
1-motor system
1-head system
Approx. 480 seconds with 300 feet tape
1 hour stereo recording with 300 feet tape
12-1/2"(W) x 4-3/8" (H) x9-3/4"(D)
8-1/8 Ibs
