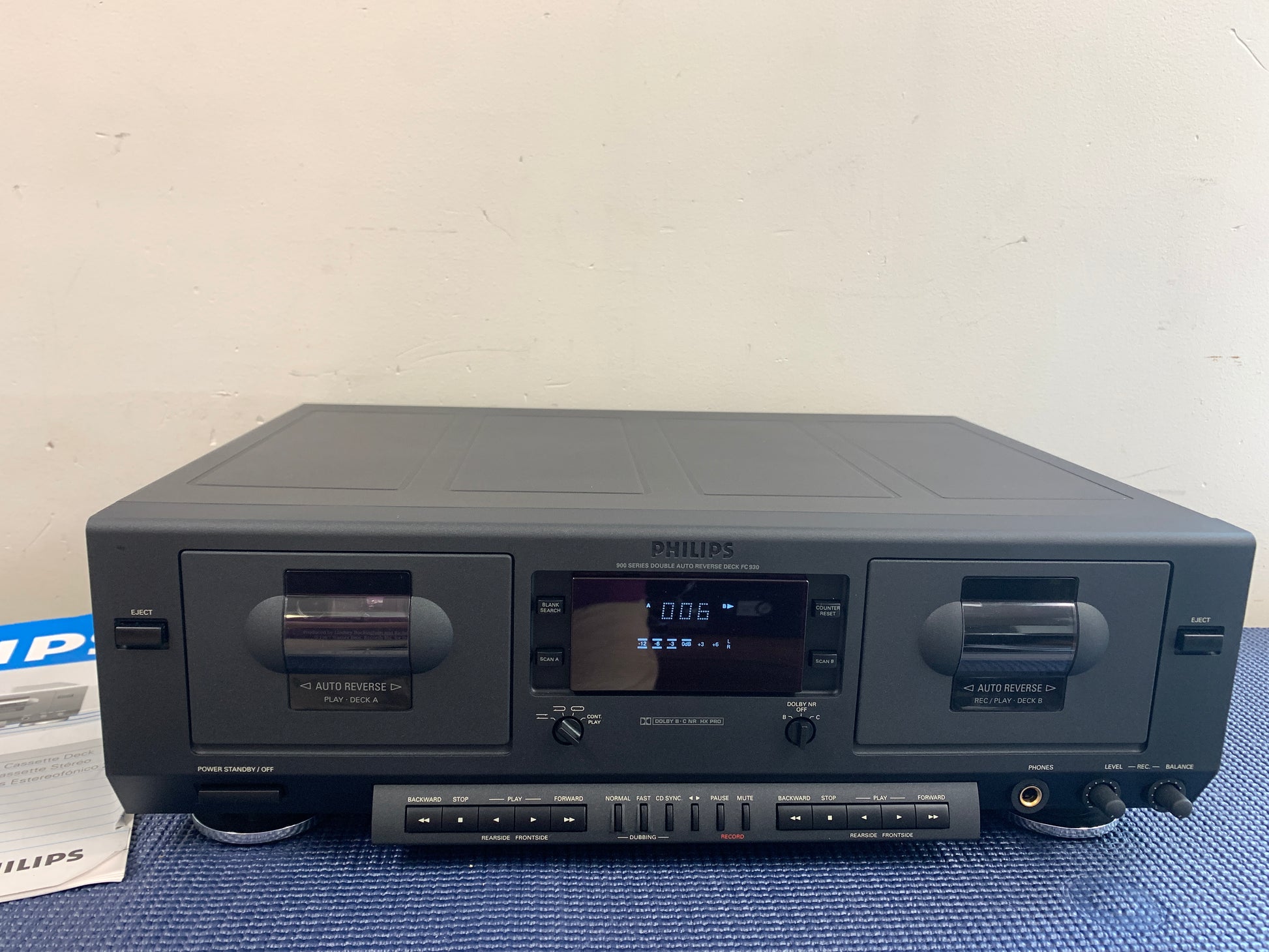

Philips FC-930 Double Cassette Deck * Manual

General

• Manufacturer: Philips
• Model: FC 930
• Type: Double cassette tape deck
• Years of manufacture: 1992 - 1994
• Made in: Belgium
• Colour: Titanium grey
• Power consumption: 18 W
• Dimensions: 435 x 140 x 300 mm (WxHxD)
• Weight: 5.2 kg
• Original price approx.: 500 DM, 1993

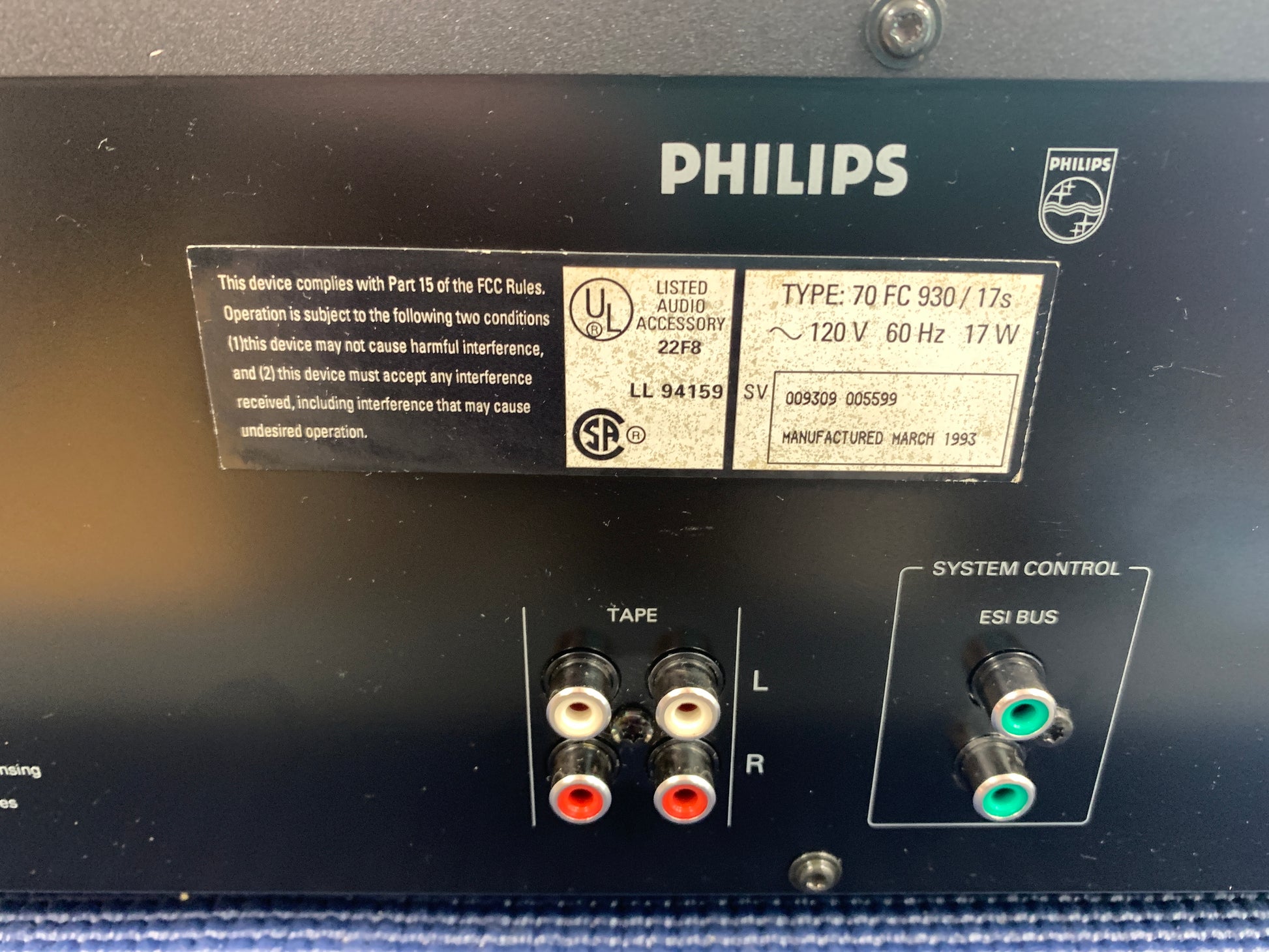

Connections

• Inputs:
  • Line In: 75 mV, 47 kOhm.
• Outputs:
  • Line Out: 450 mV, 2.5 kOhm
  • Headphones: 8 - 600 Ohm (6.3 mm jack)

Technical Data

• Drive:
  • Motors: 4x DC servo
• Tone heads: 2
• Synchronisation fluctuation: 0,07 % DIN
• Distortion factor: < 2
• Channel separation: 65 dB
• Crosstalk attenuation: 65 dB
• Band switching: I, II, IV
• Frequency response:
  • Normal: 40 - 16'000 Hz
  • Chrome: 40 - 17'000 Hz

Metal: 40 - 17'000 Hz

• Signal-to-noise ratio:
  • Dolby off: 57 dB
  • Dolby C on: 77 dB

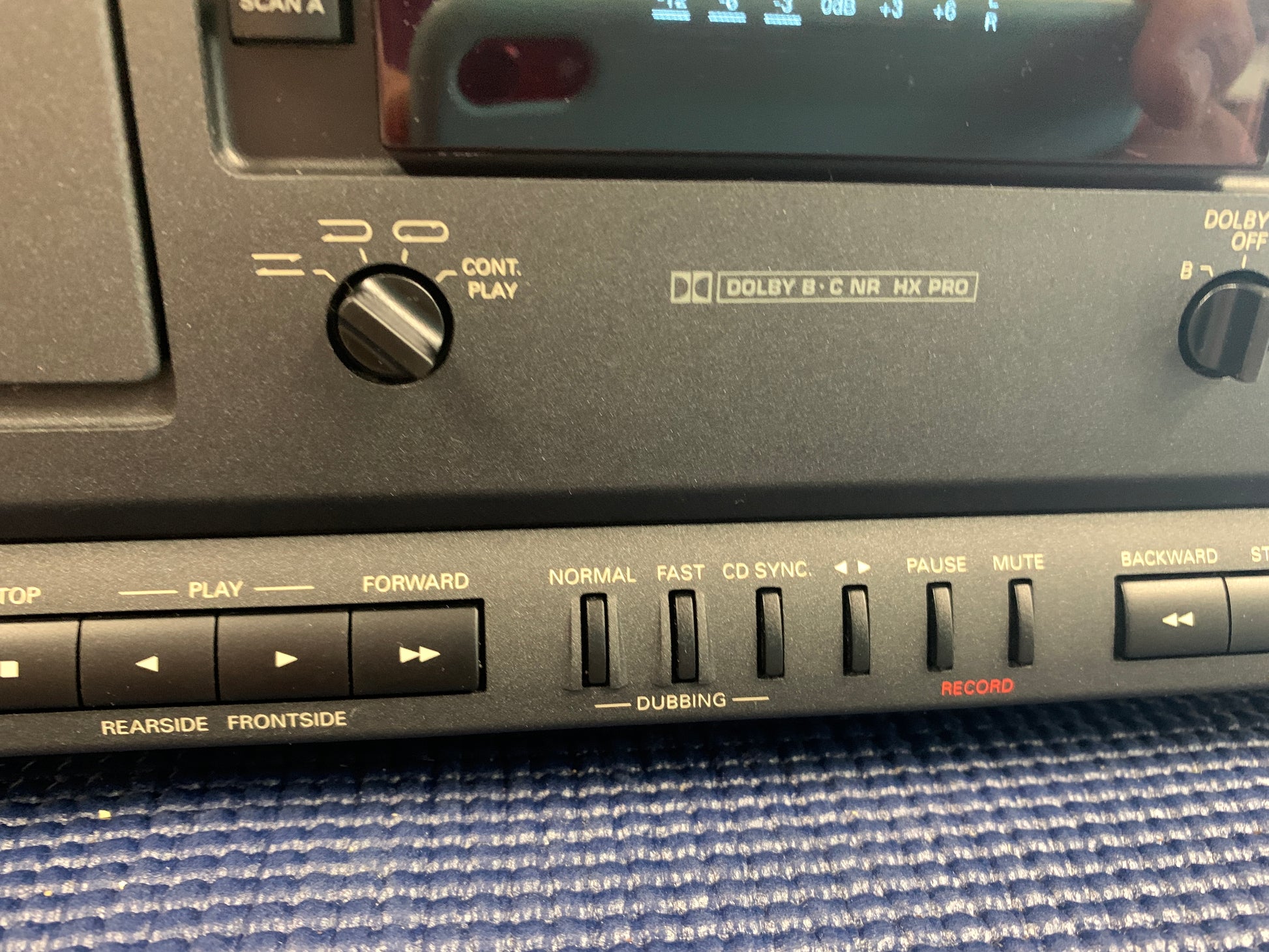

• Dolby: B, C, HX Pro
• Auto Reverse: yes

Special Features:

• CD Synchro
• Blank Search
