Pioneer CT-F700
Stereo Cassette Tape Deck (1978-79)
Description

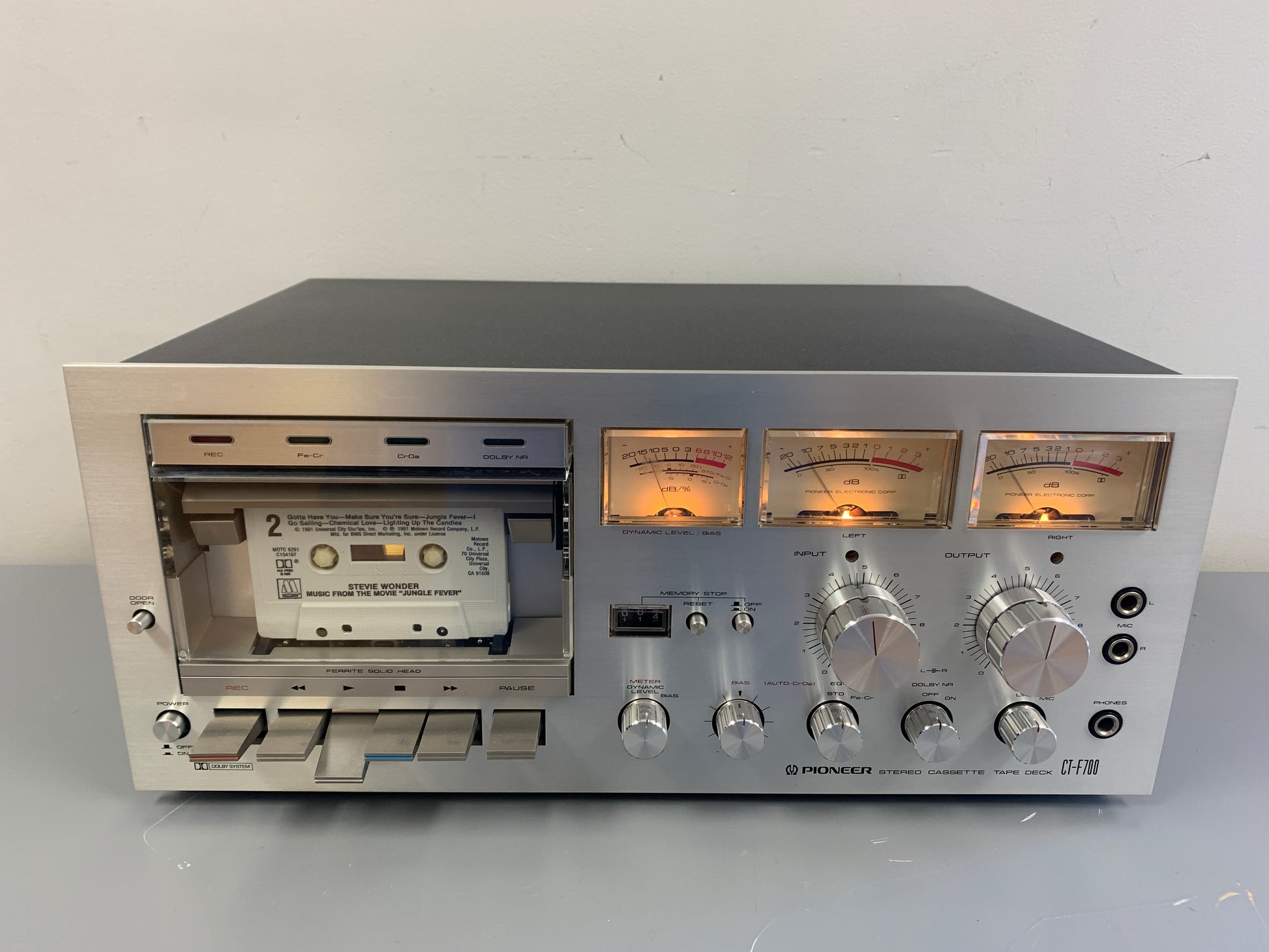

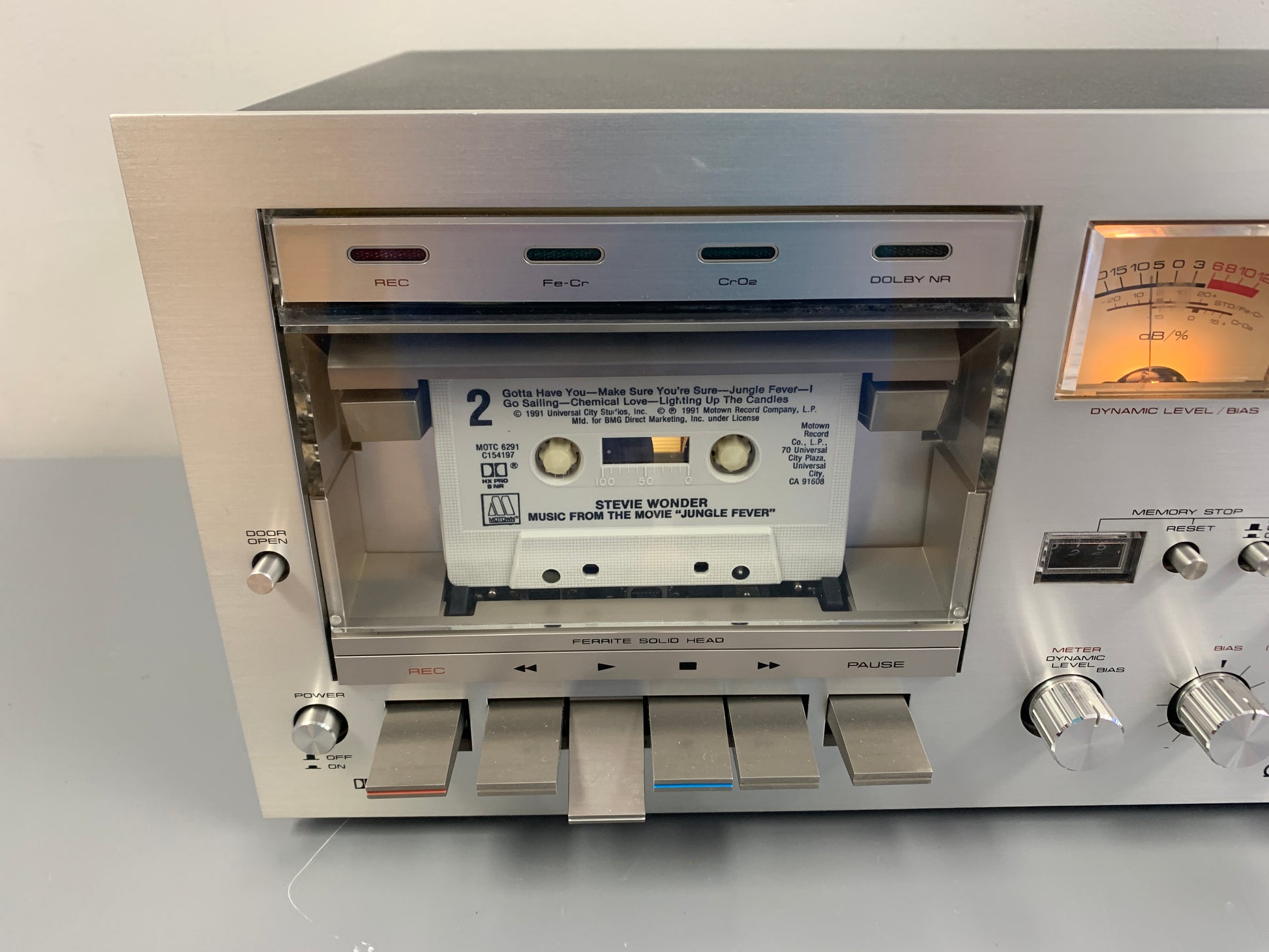

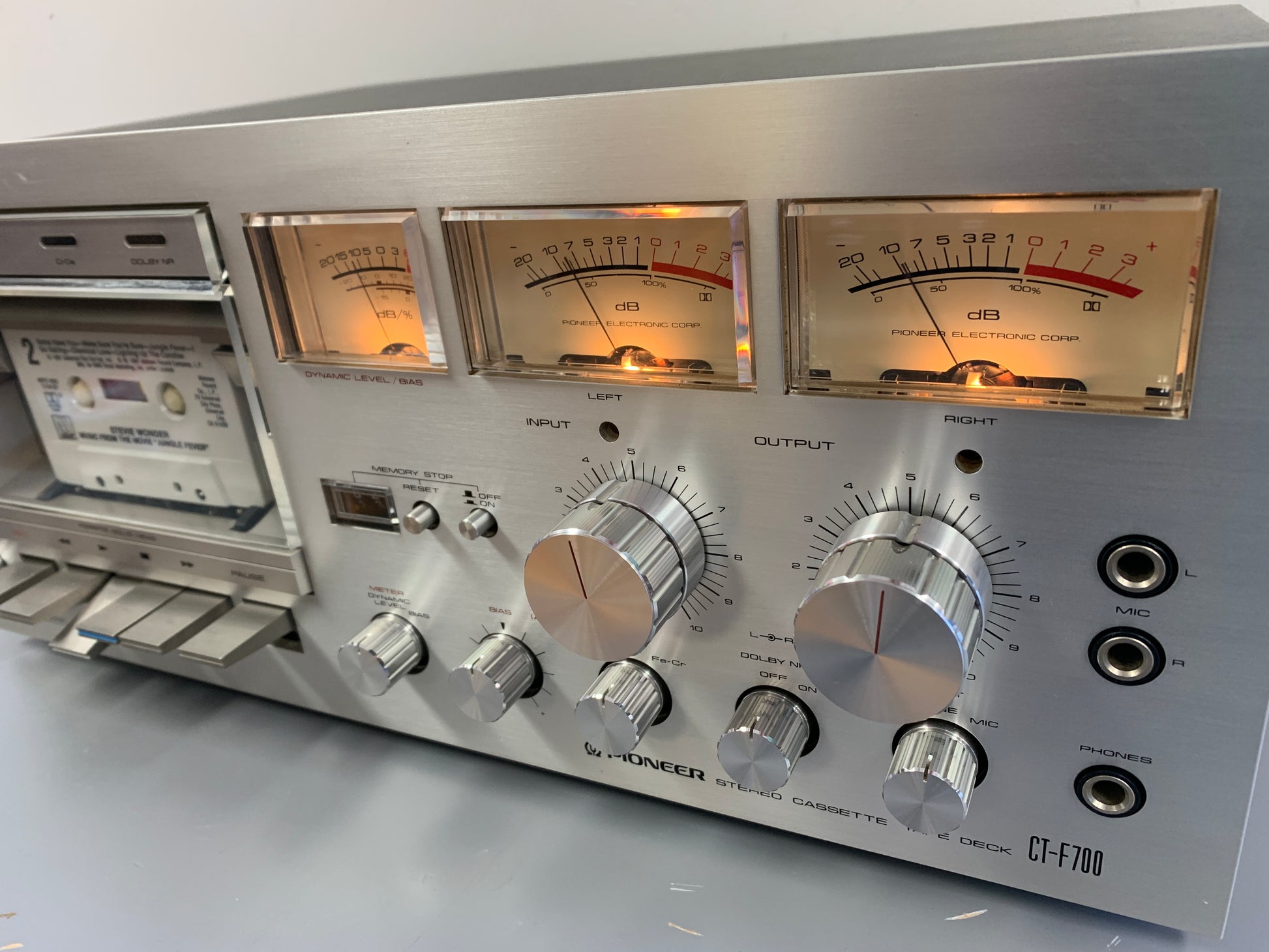

The Pioneer CT-F700 is a 2-head, stereo cassette recorder with Dolby noise reduction.

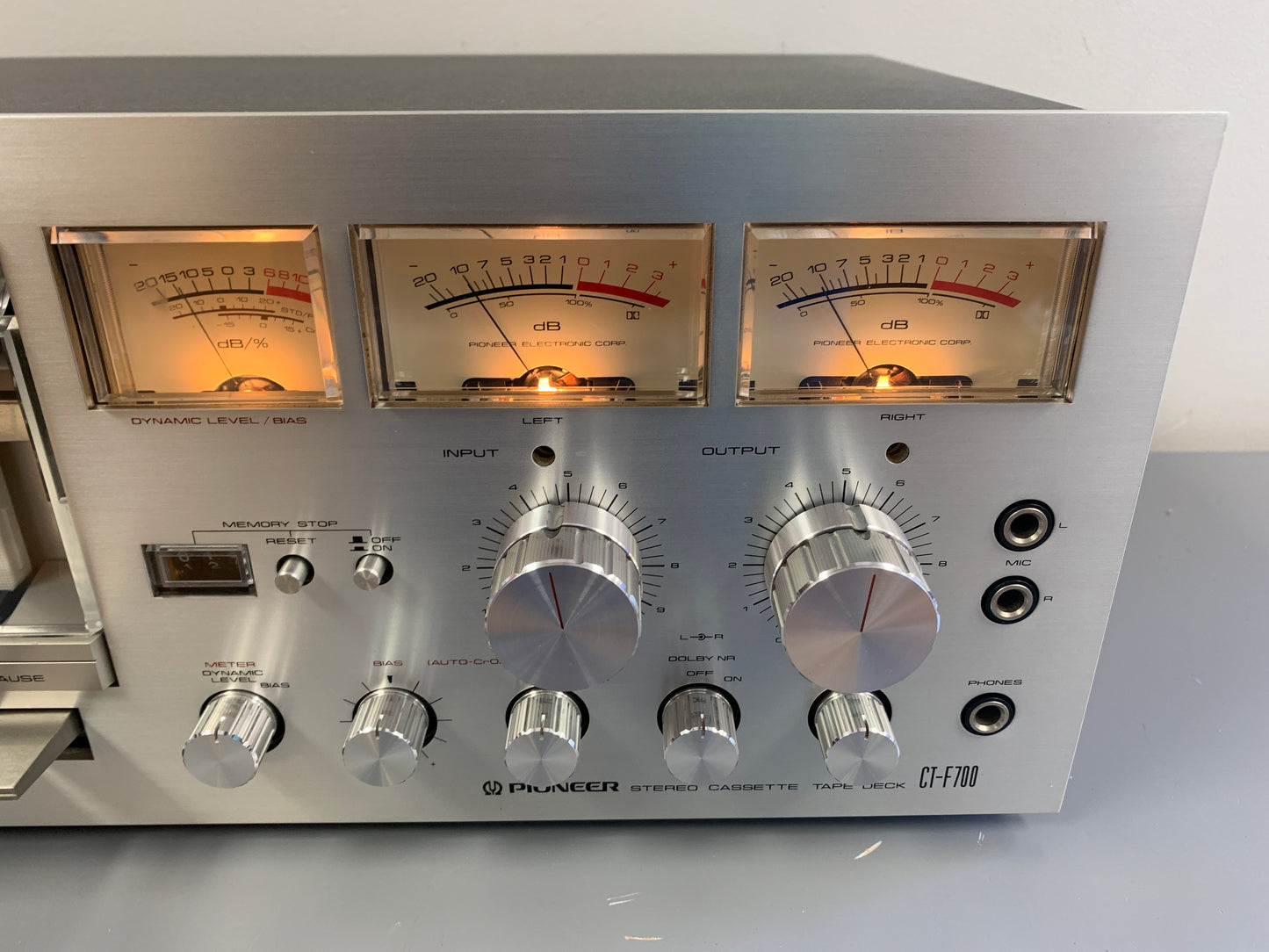

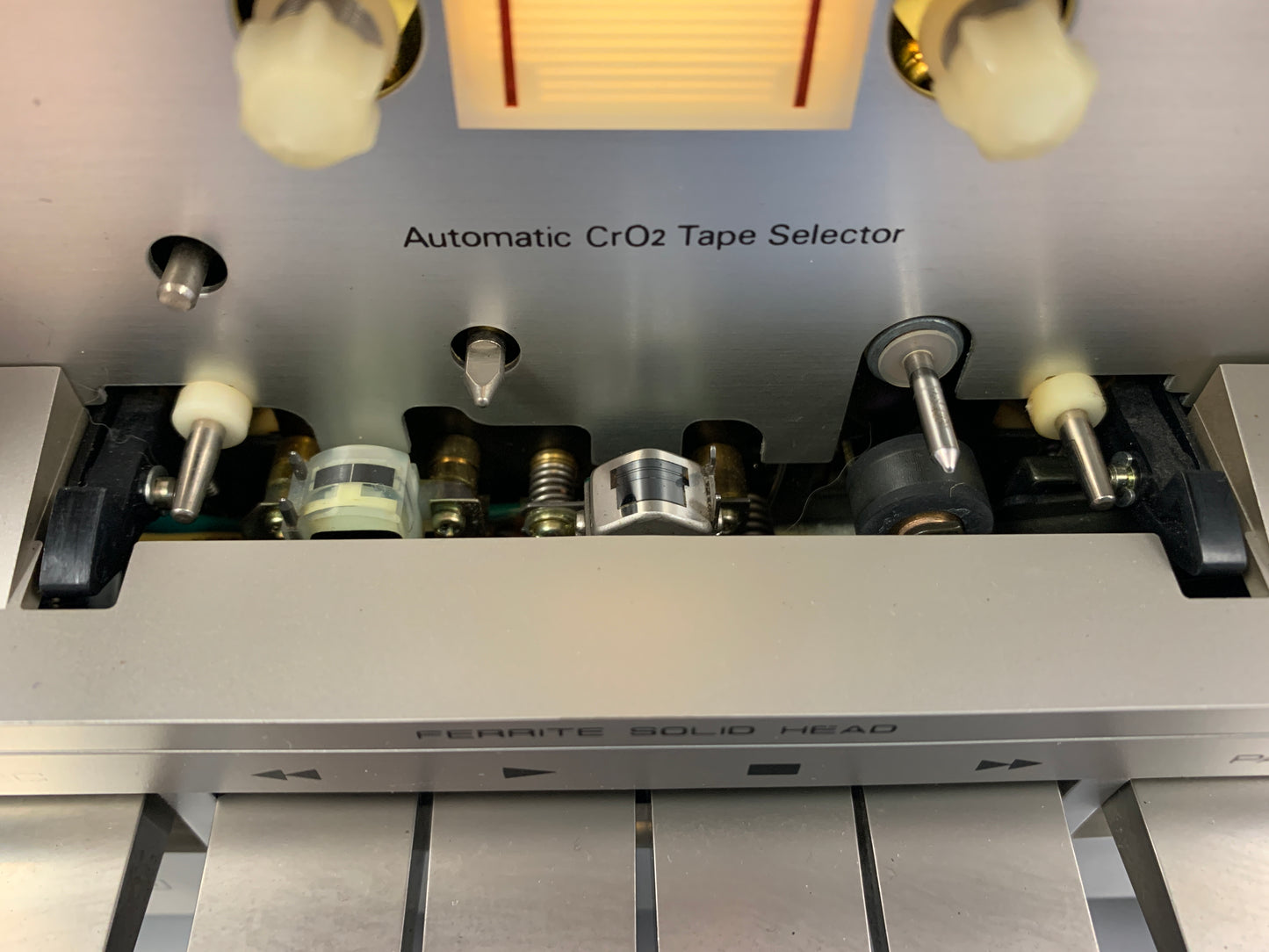

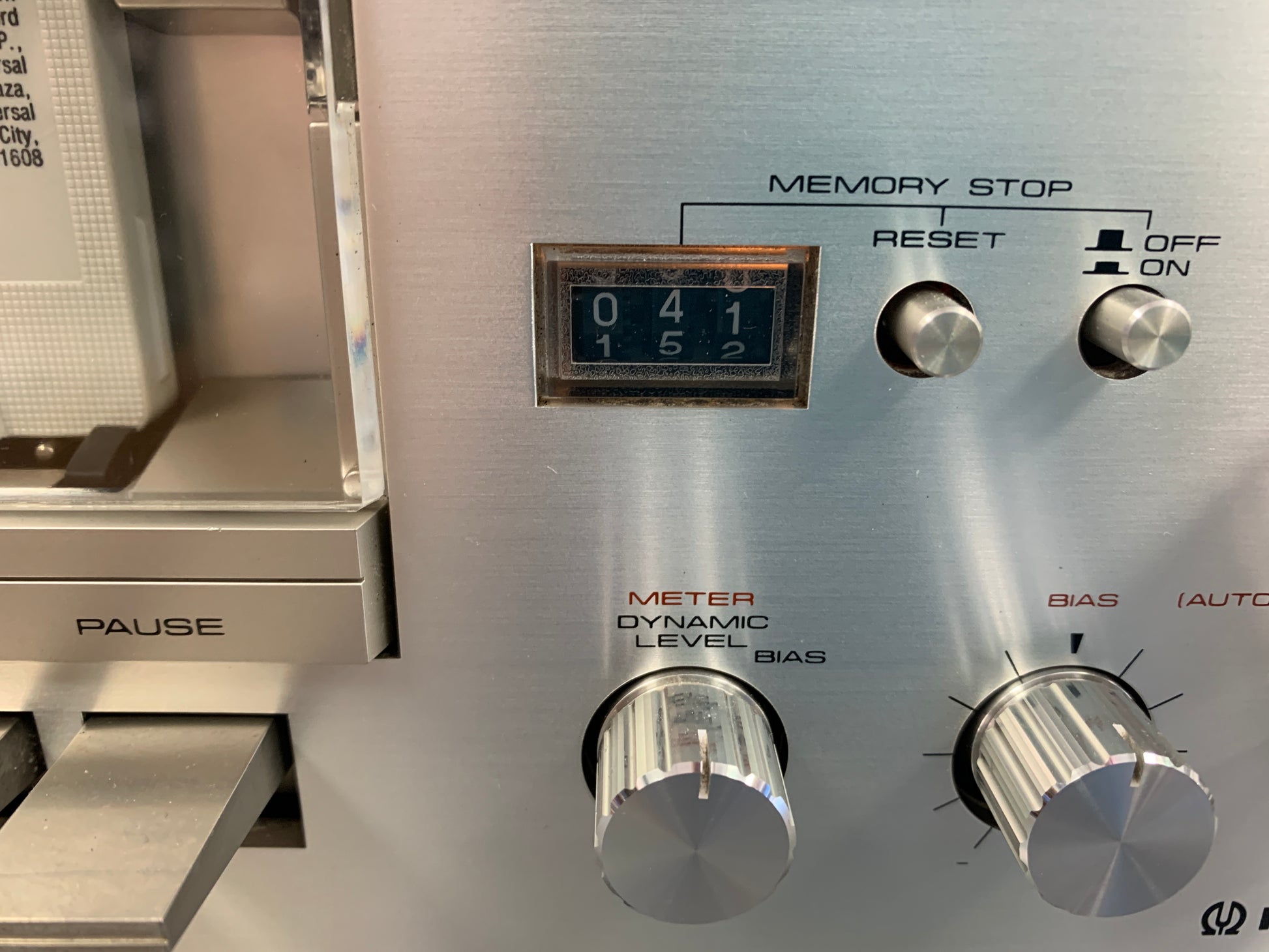

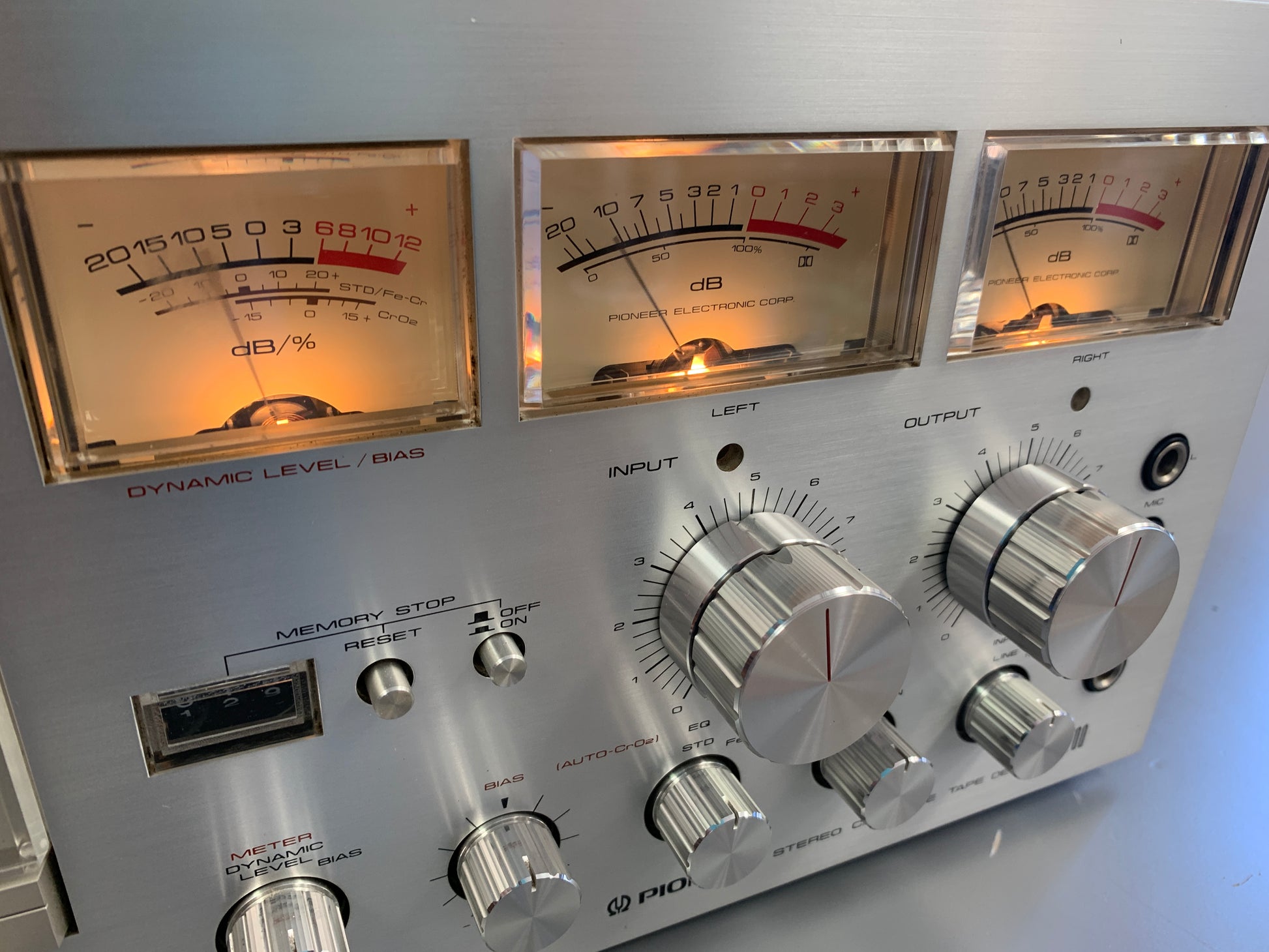

Features include a highly reliable transport mechanism utilizing a DC servo motor, a Ferrite solid head, newly developed dynamic level meter for enhanced recording sound quality, built-in Dolby system for reduced tape hiss, bias adjustment mechanism to bring out the best in tapes and a rich selection of accessory mechanisms.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically controlled DC
Tape Type: type I, FeCr, CrO2
Noise Reduction: B
Frequency Response: 25Hz to 17kHz (Cr02 tape)
Signal to Noise Ratio: 64dB (dolby B)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 1.5%
Input: 64mV (line), 0.3mV (mic)
Output: 0.45V (line)
Semiconductors: 38 x transistors, 52 x diodes, 4 x IC
Dimensions: 420 x 187 x 304mm
Weight: 8.5kg
Year: 1978
