Pioneer SX-828

AM/FM Stereo Receiver (1972-74)

Description

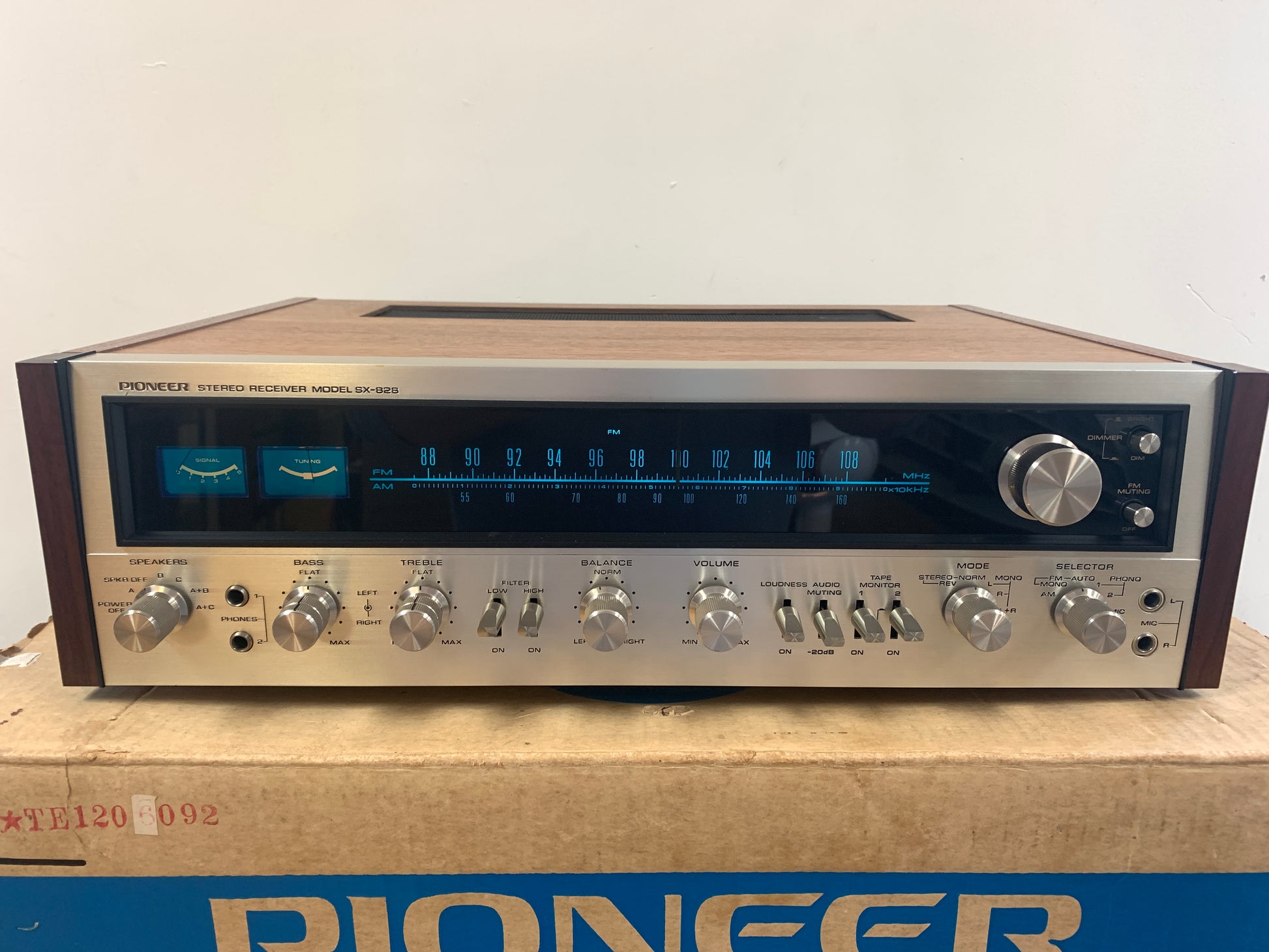

The SX-828 is a big power AM/FM stereo receiver with advanced circuit design, outstanding FM selectivity and sensitivity, and linear scale tuning dial.

Here, in one of Pioneer's most prized packages, is a wealth of outstanding performance in an AM/FM solid state stereo receiver.

The SX-828 is another in the long, proud line of advanced stereo components from Pioneer - and certainly one of the best.

For music power that will fill any-sized room with clear, rich sound, the SX-828 features up to 270 watts (at 4 ohms).

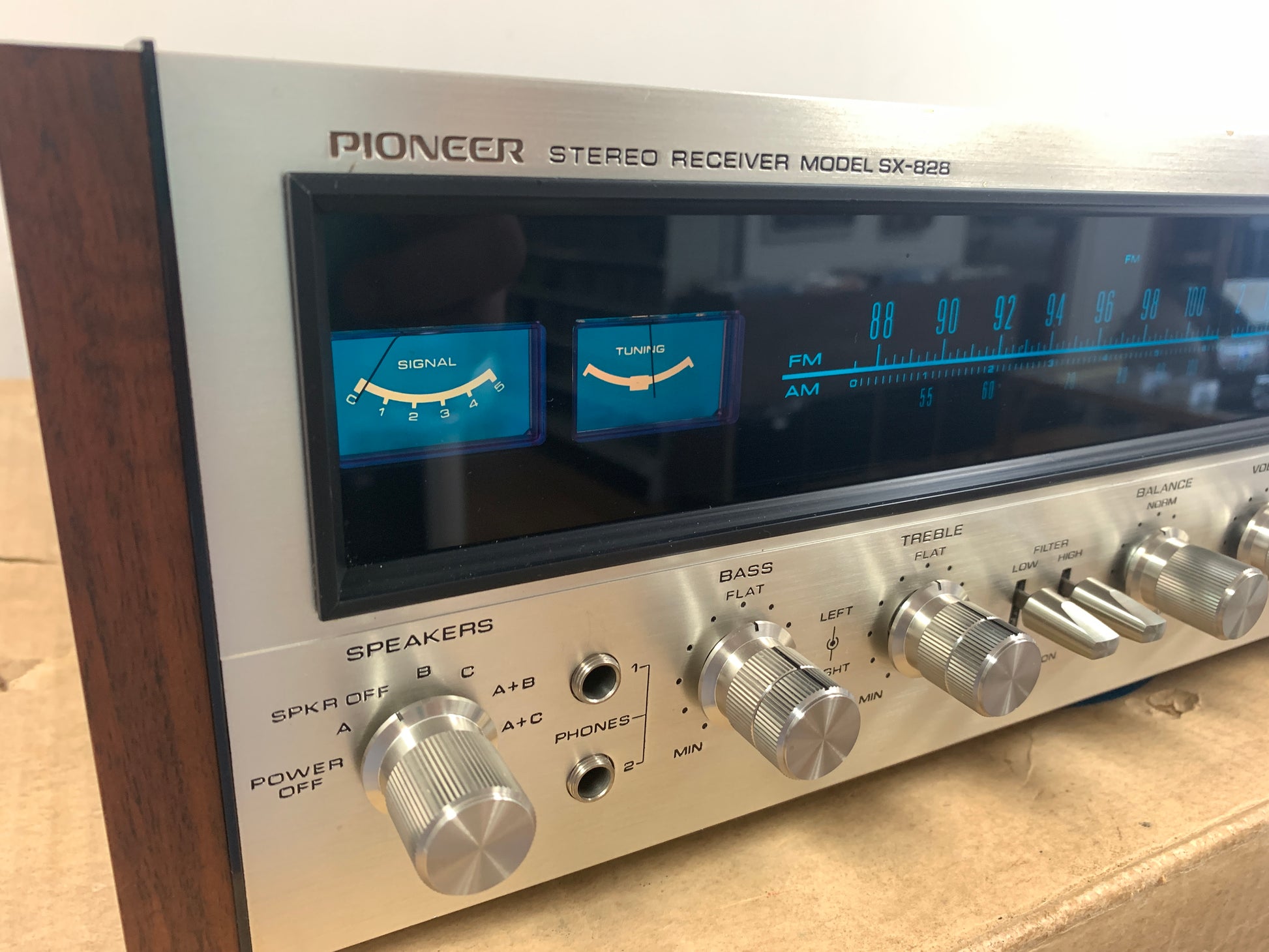

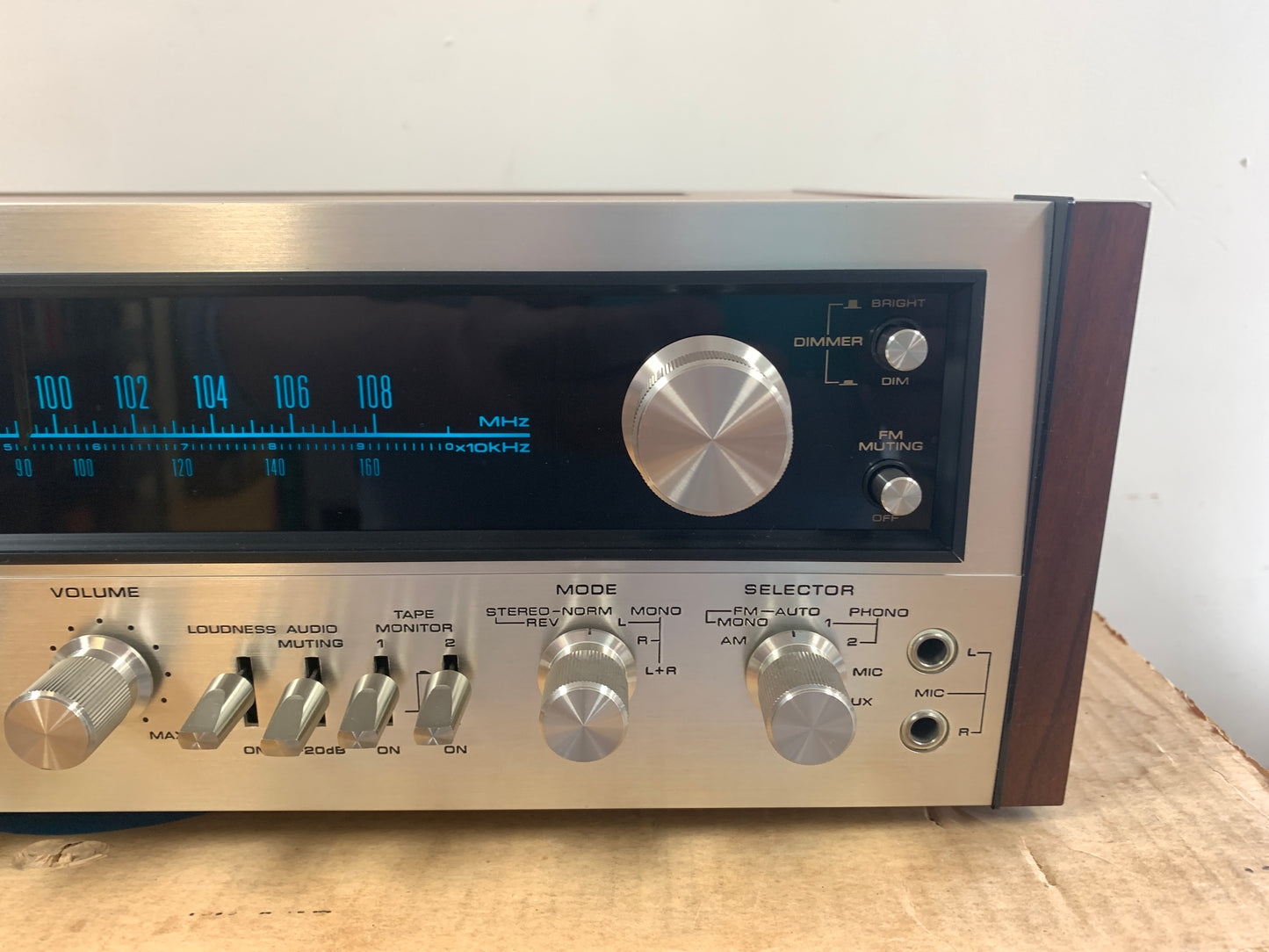

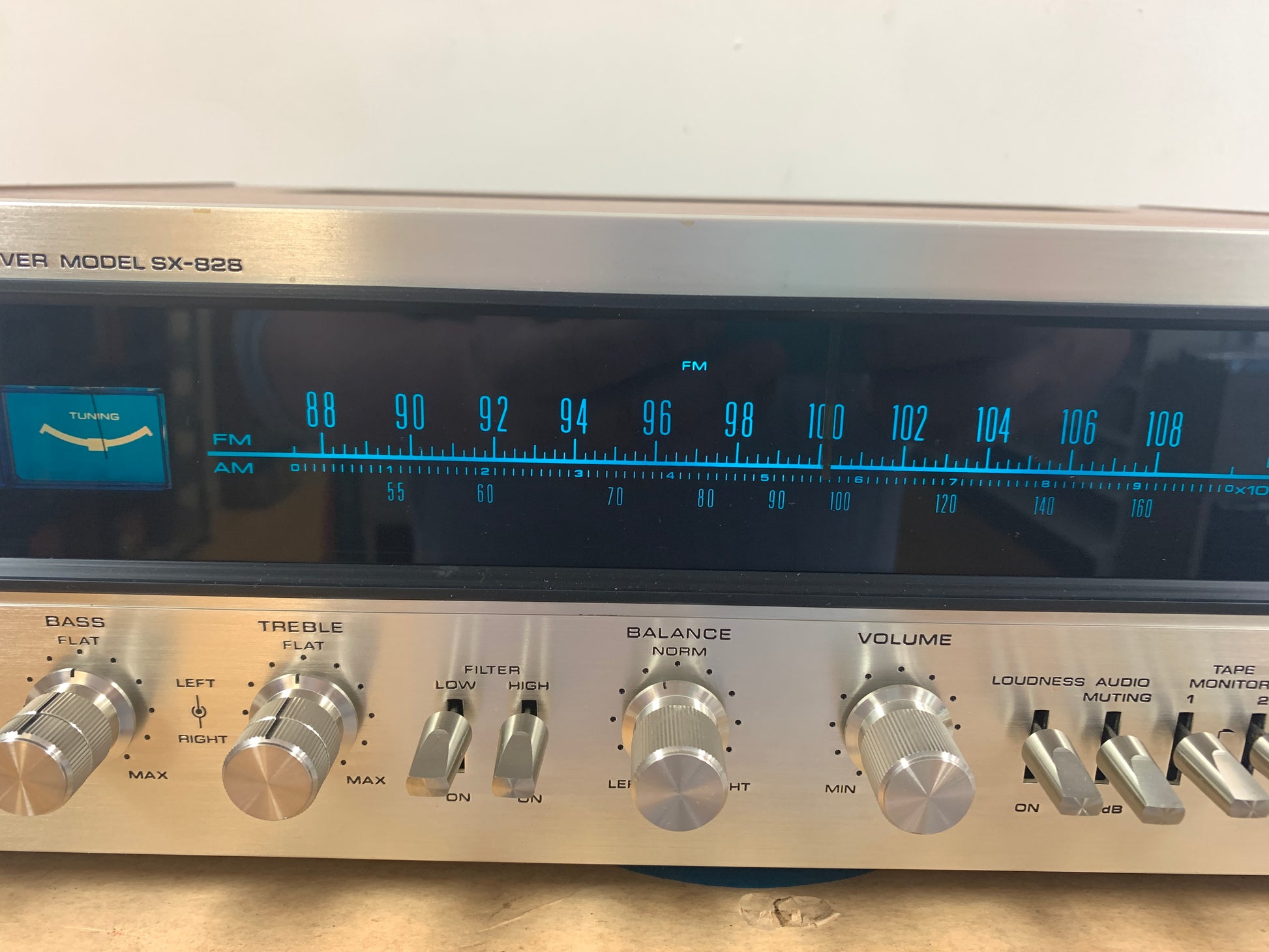

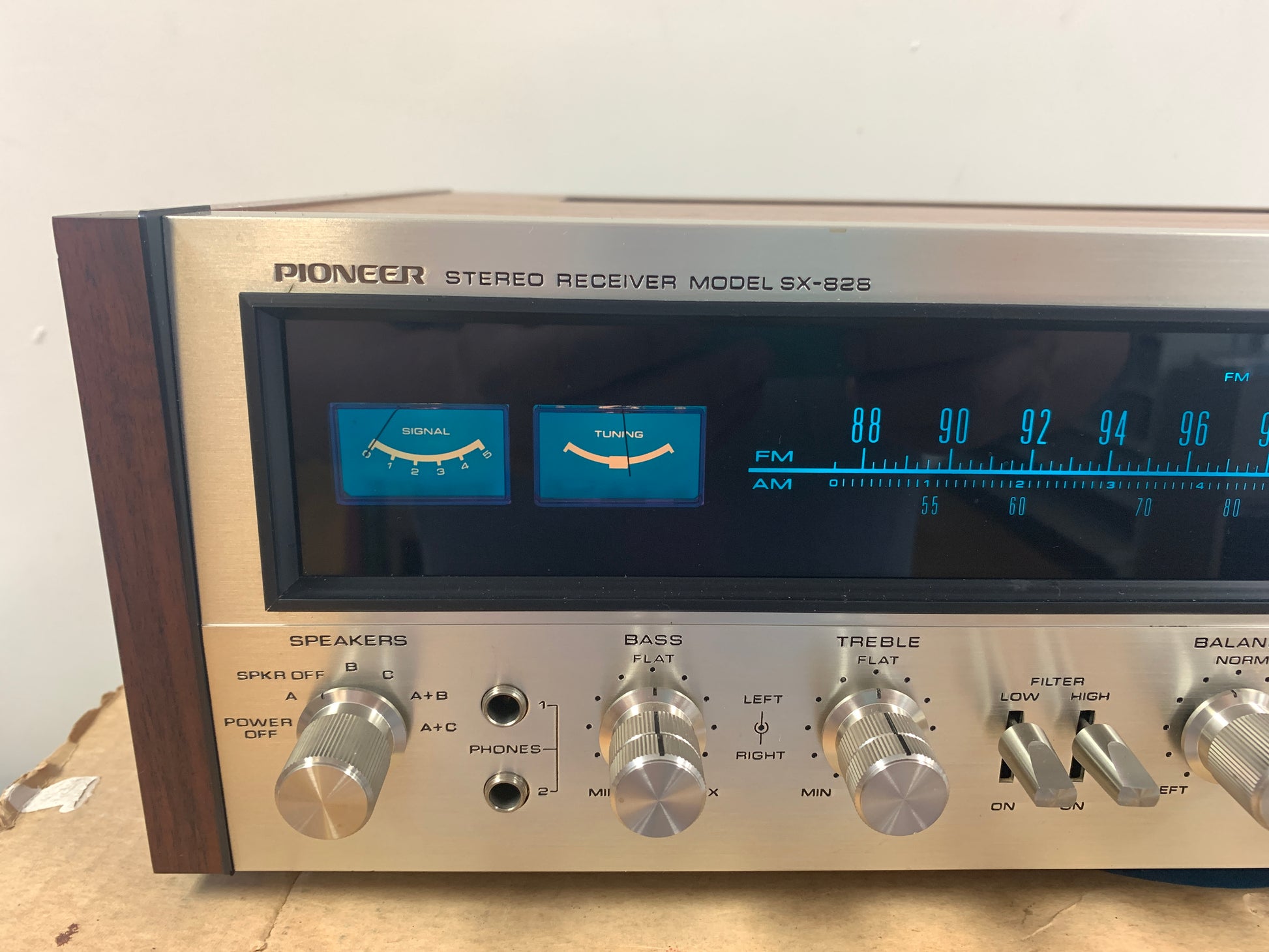

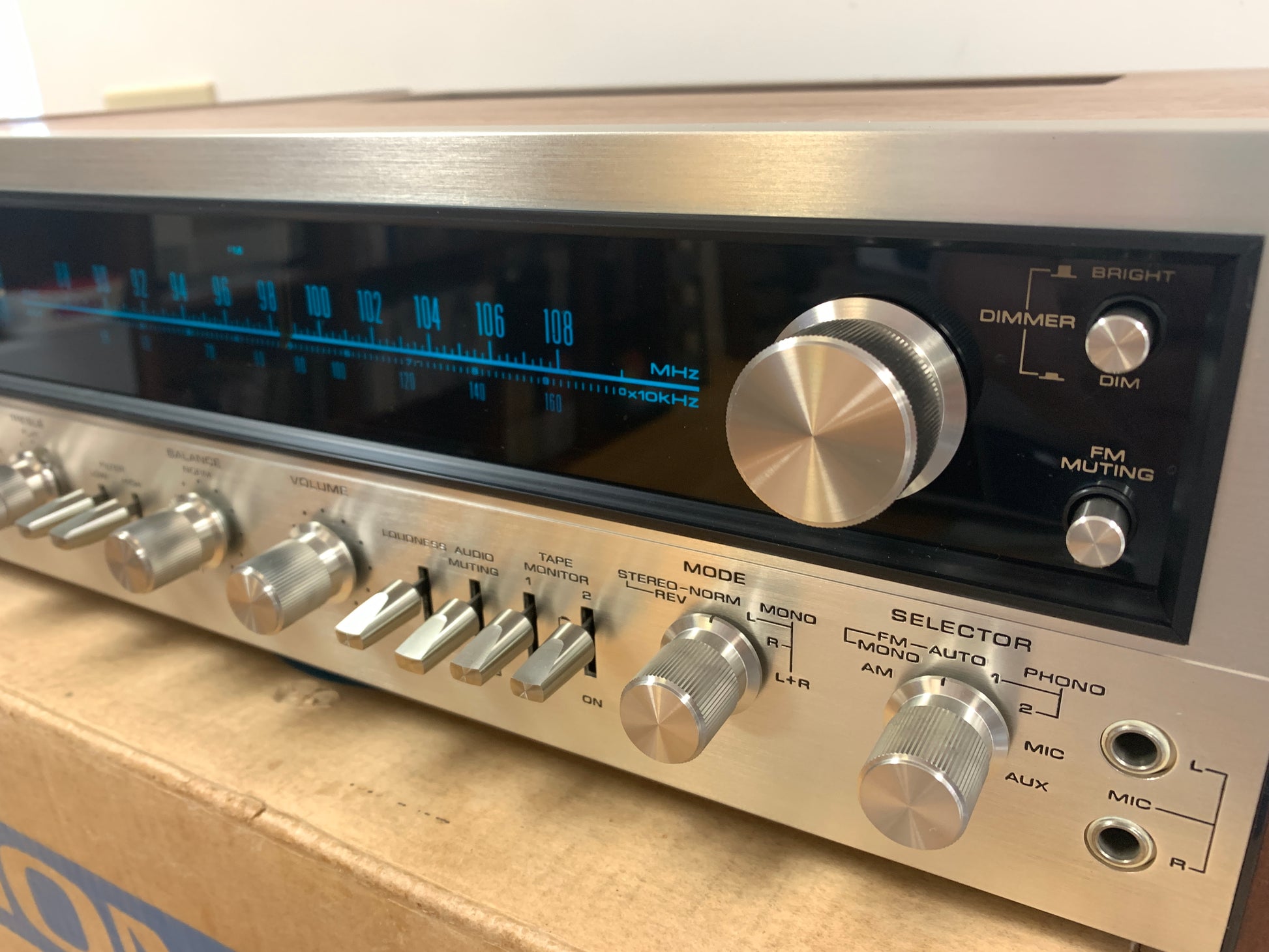

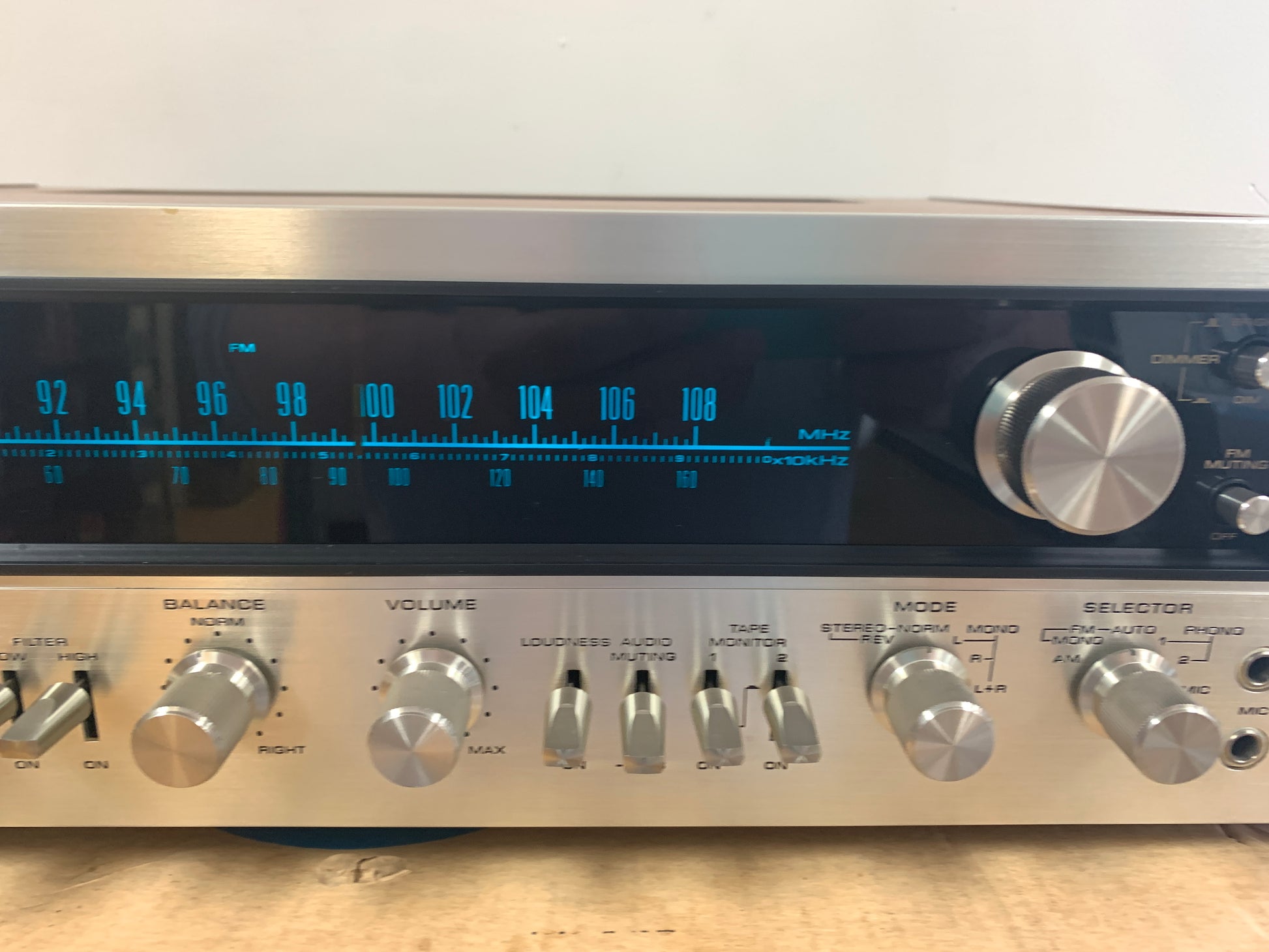

For FM selectivity and sensitivity that has no peer in a unit of this size, the unit features a large linear scale tuning dial, the latest solid state circuitry, and a pair of FM tuning meters.

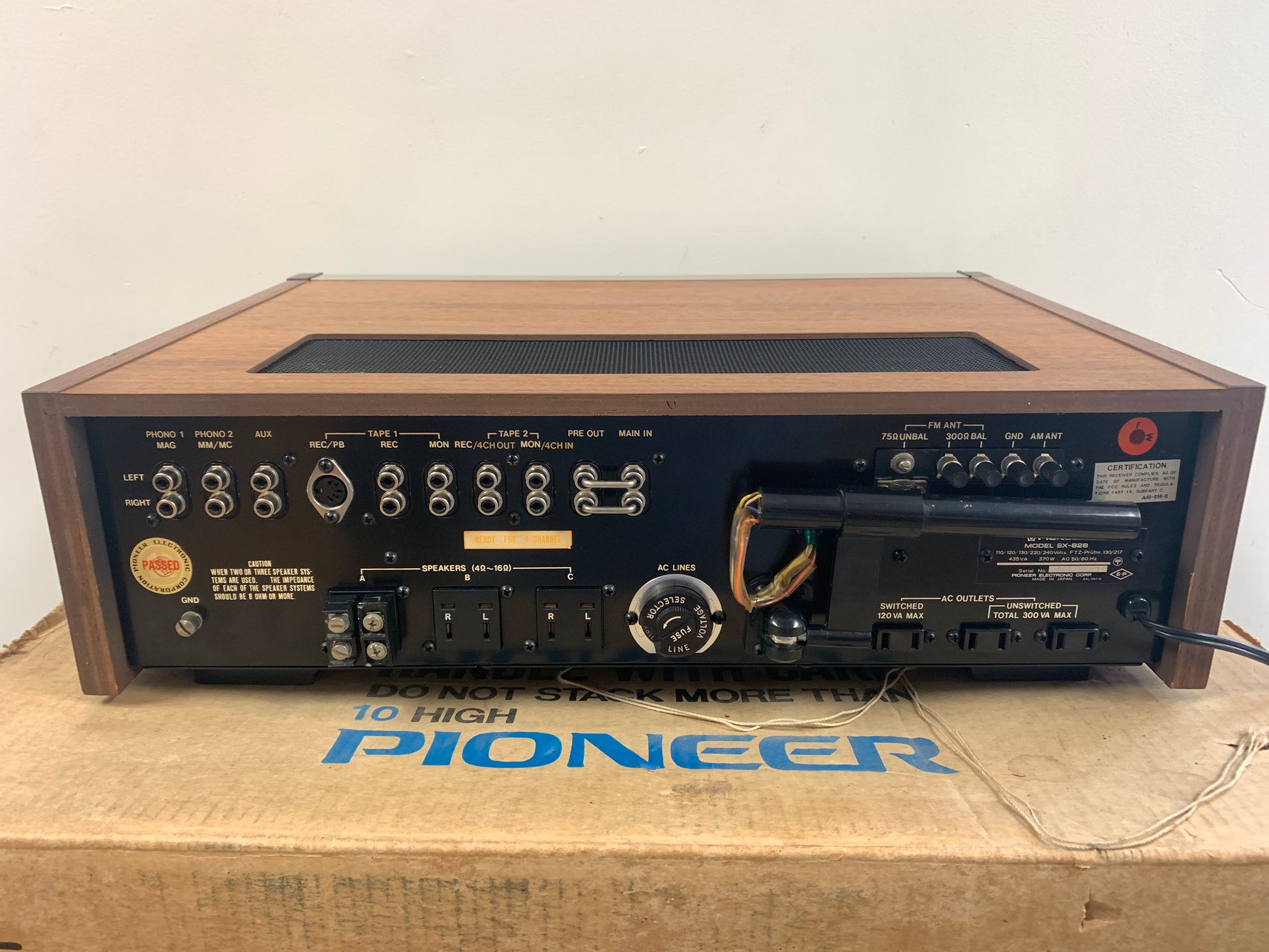

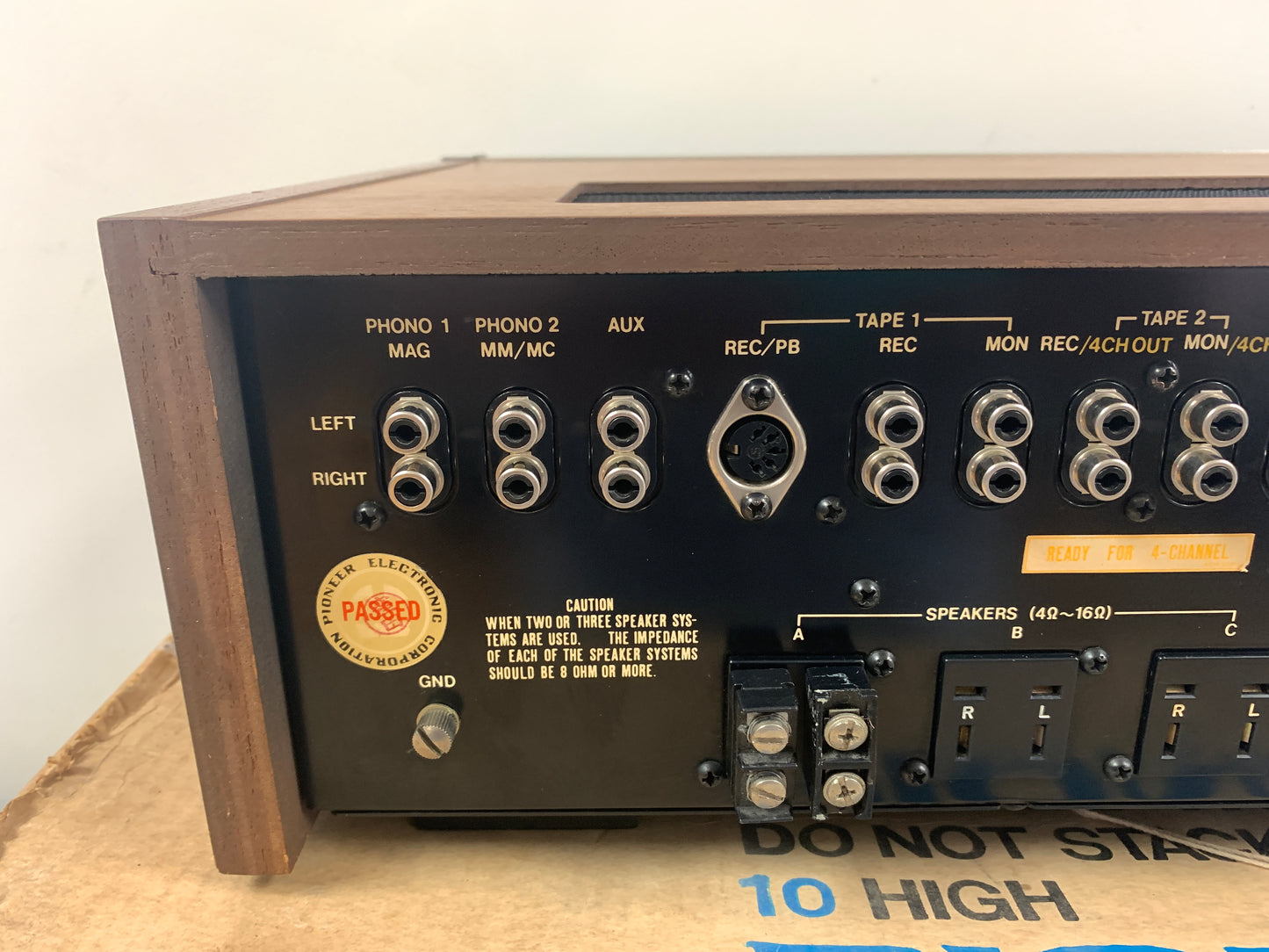

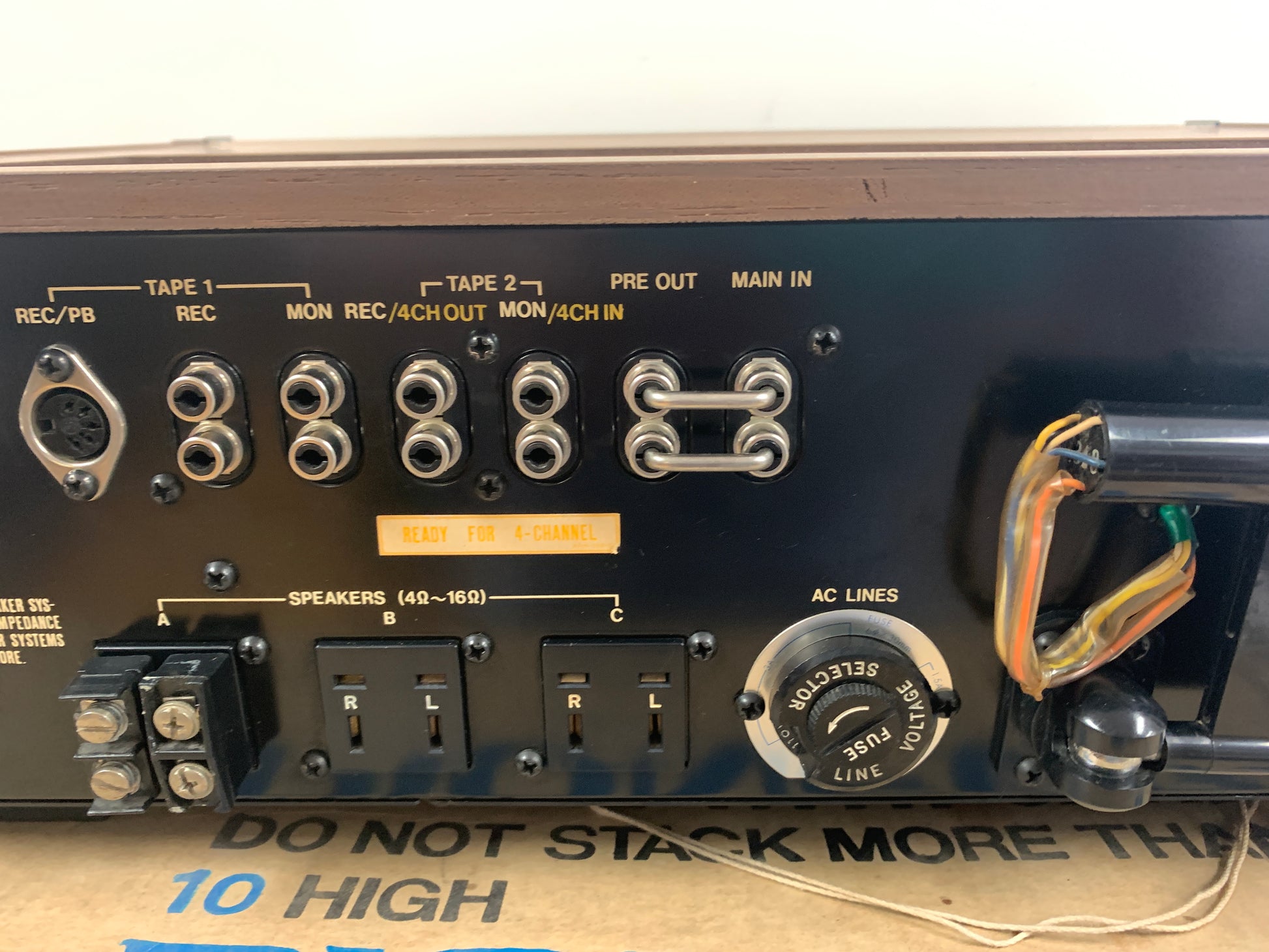

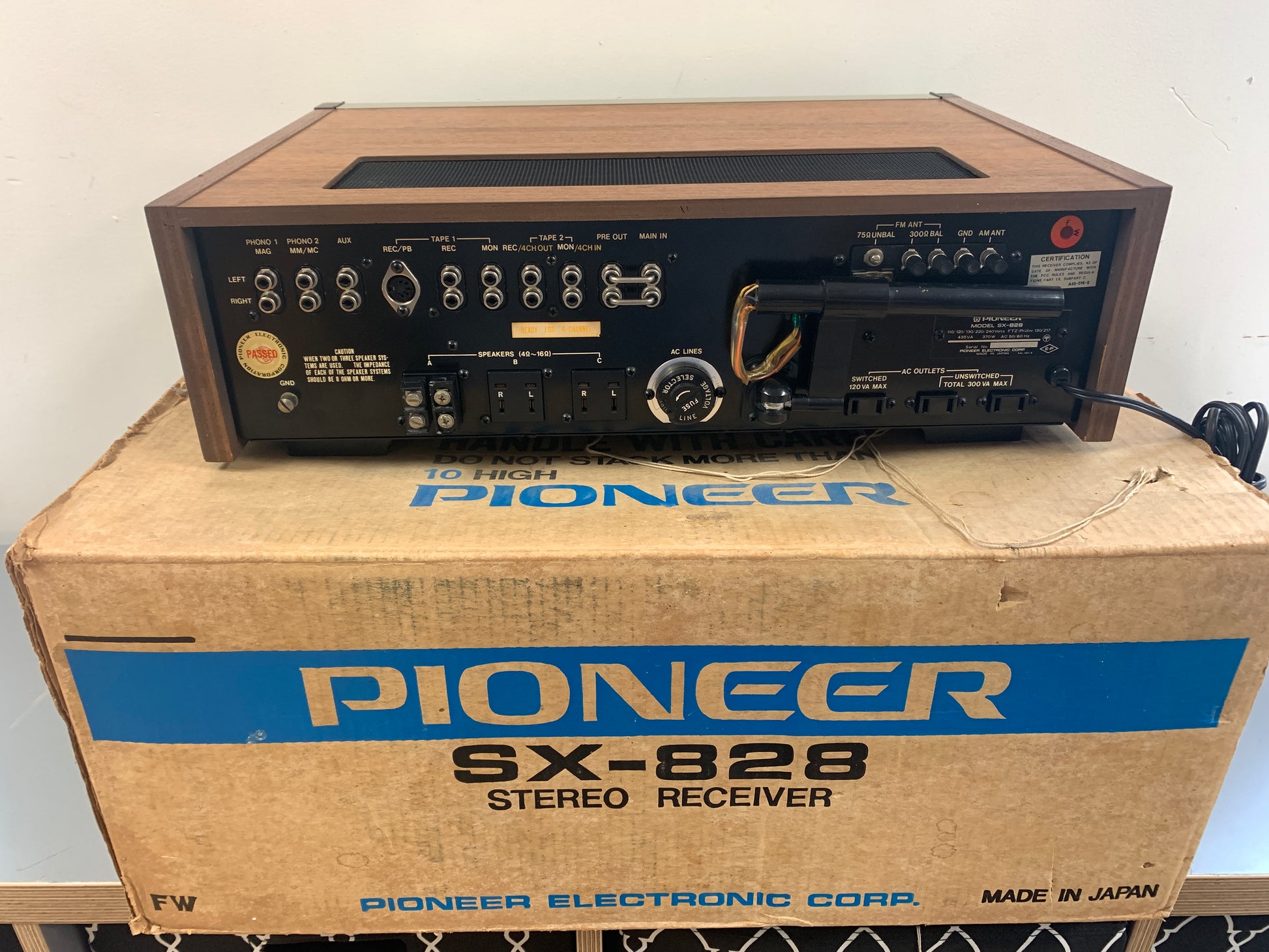

And, finally, for the supreme versatility that is so necessary to quality hi-fi today, it provides two tape monitor circuits for tape-to-tape duplication, and lets you use up to two turntables, three sets of speaker systems, two microphones and even too sets of headphones.

All in one handsomely-designed, ruggedly built unit from the quality stereo people at Pioneer.

Specifications

Tuning range: FM, MW

Power output: 54 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 80kHz

Total harmonic distortion: 0.5%

Damping factor: 40

Input sensitivity: 2.6mV (mic), 0.115mV (MC), 2.7mV (MM), 200mV (DIN), 200mV (line)

Signal to noise ratio: 85dB (MM), 95dB (line)

Output: 200mV (line), 35mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 6 x FET, 4 x IC, 55 x transistors, 36 x diodes

Dimensions: 485 x 150 x 375mm

Weight: 14.8kg
