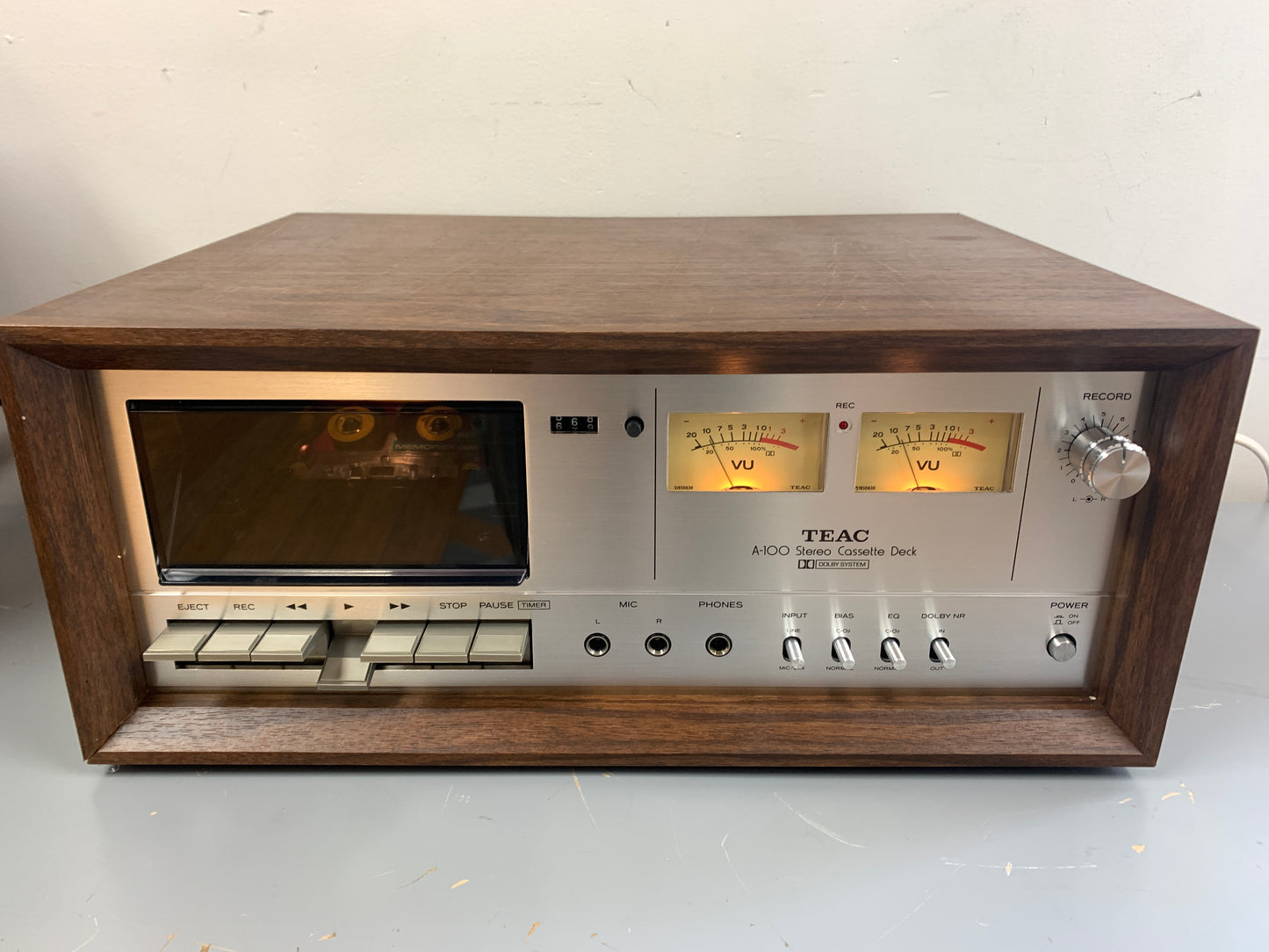

TEAC A-100
Stereo Cassette Deck (1977)
Description

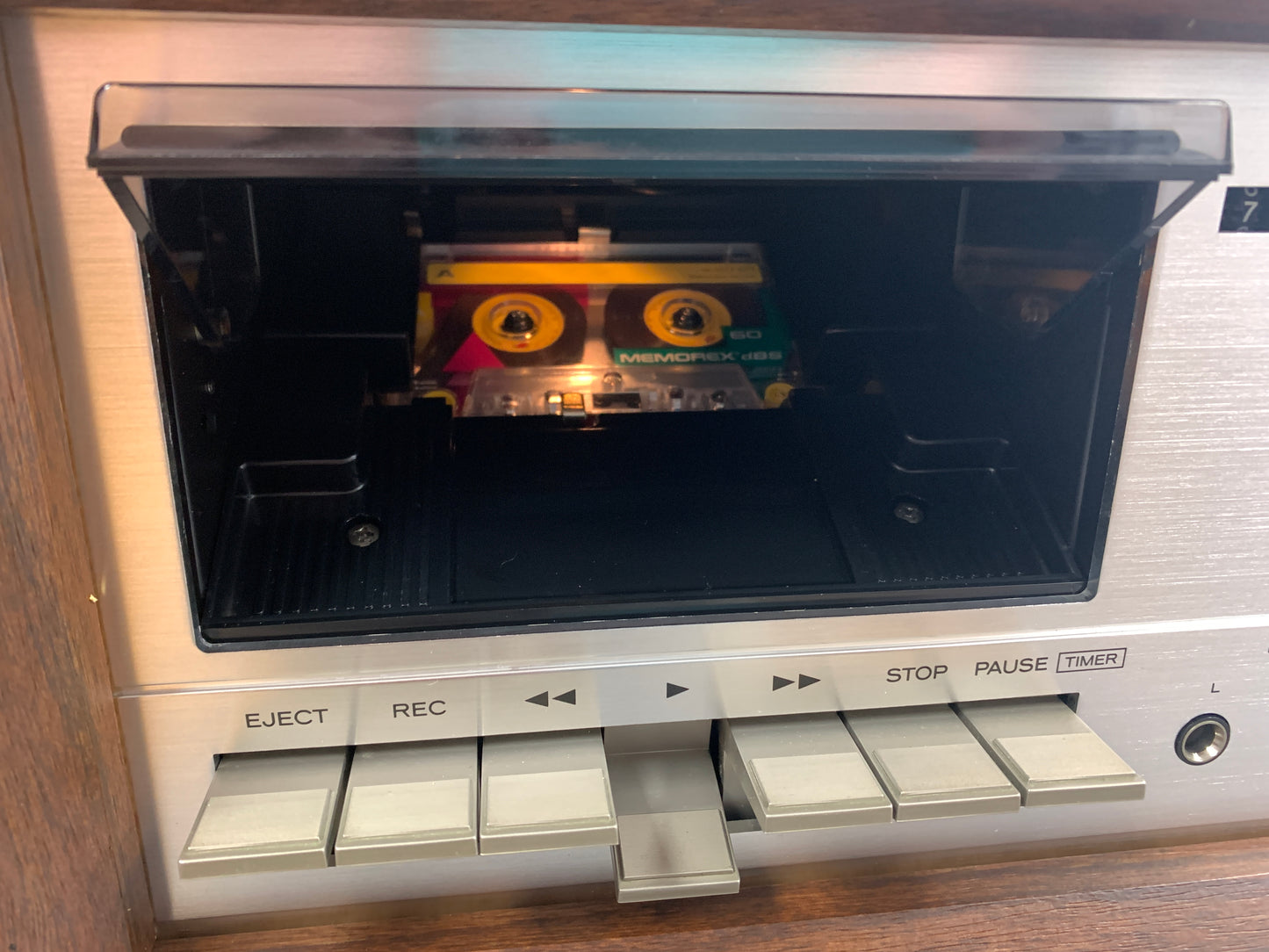

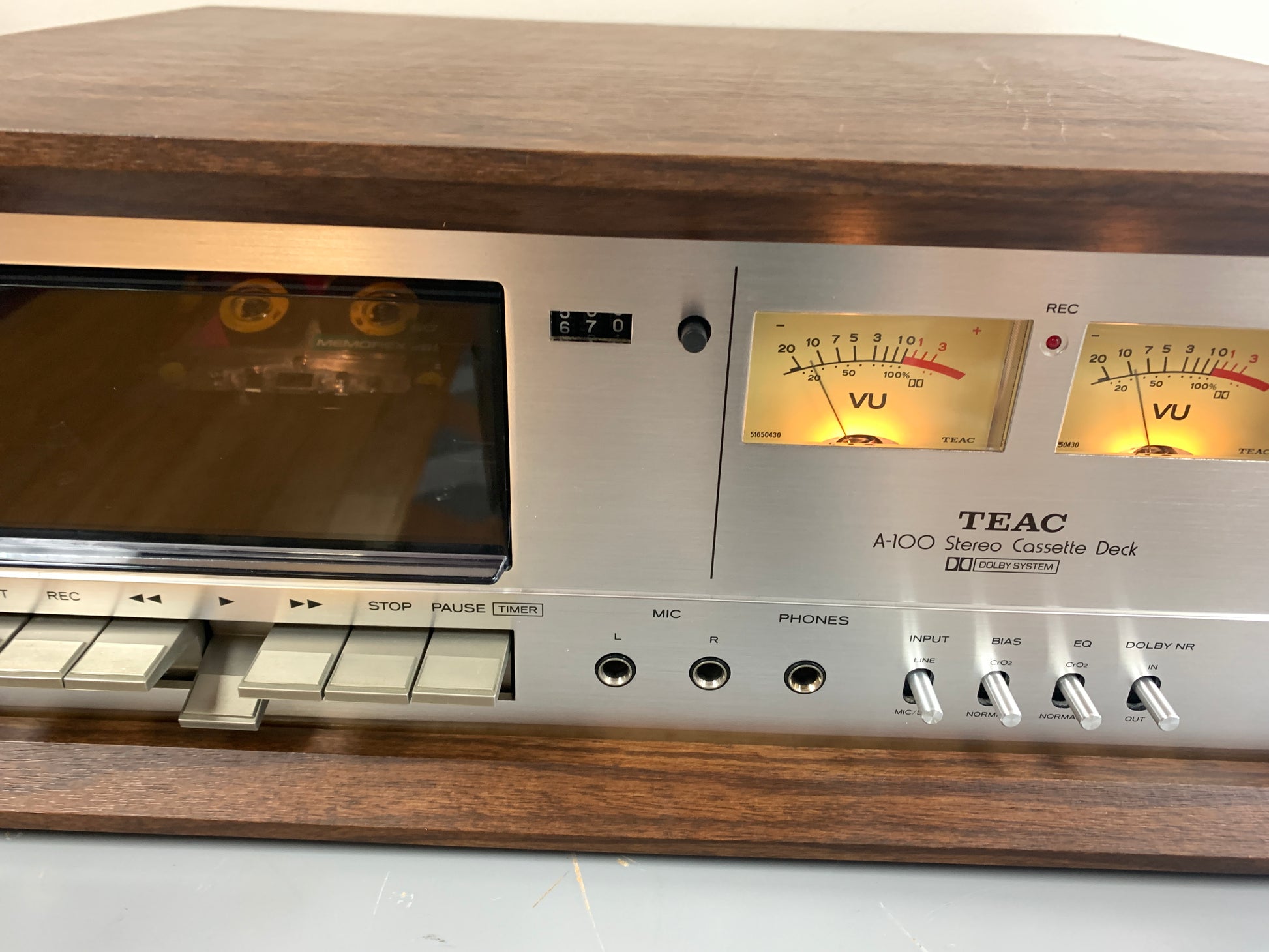

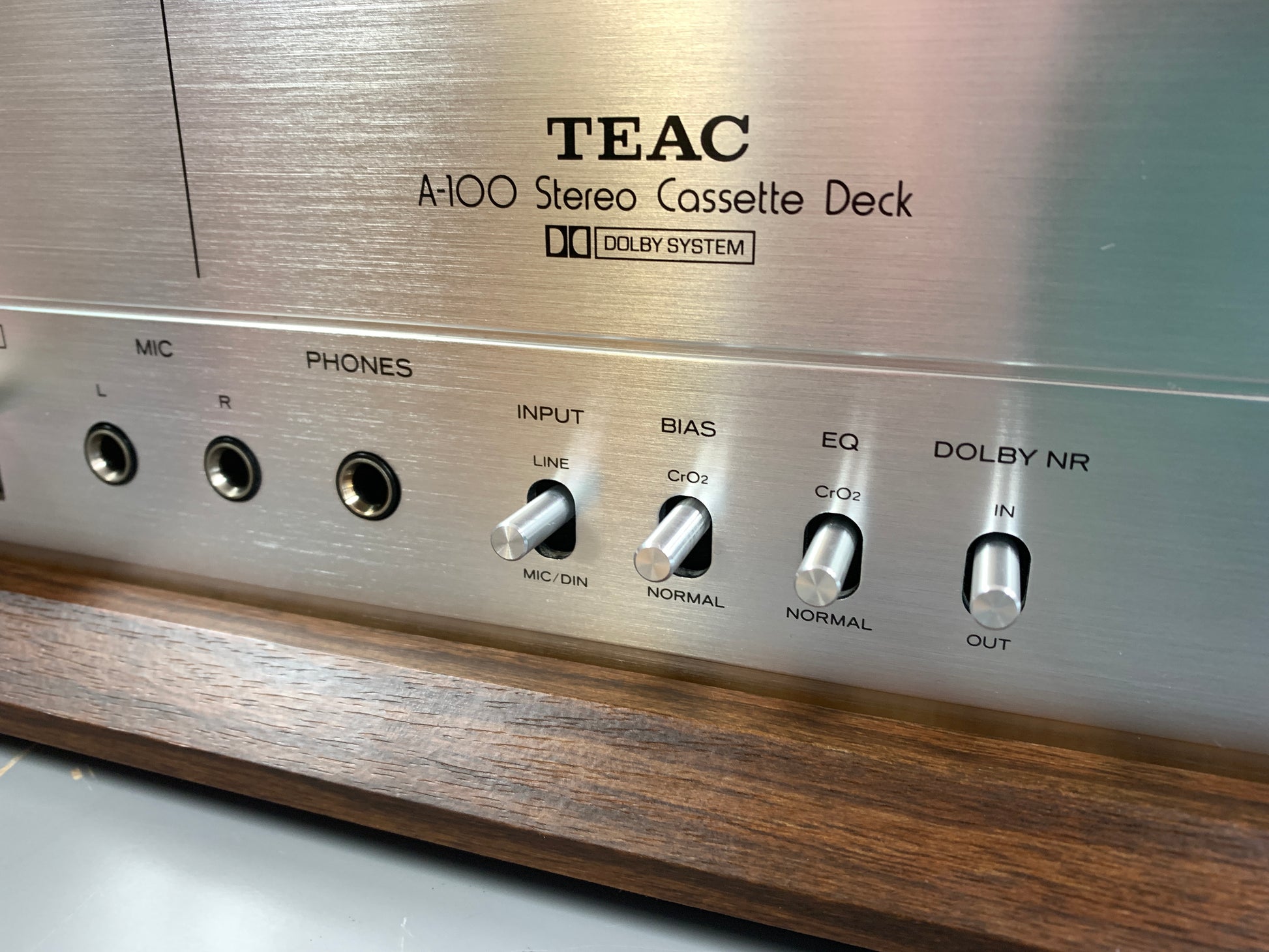

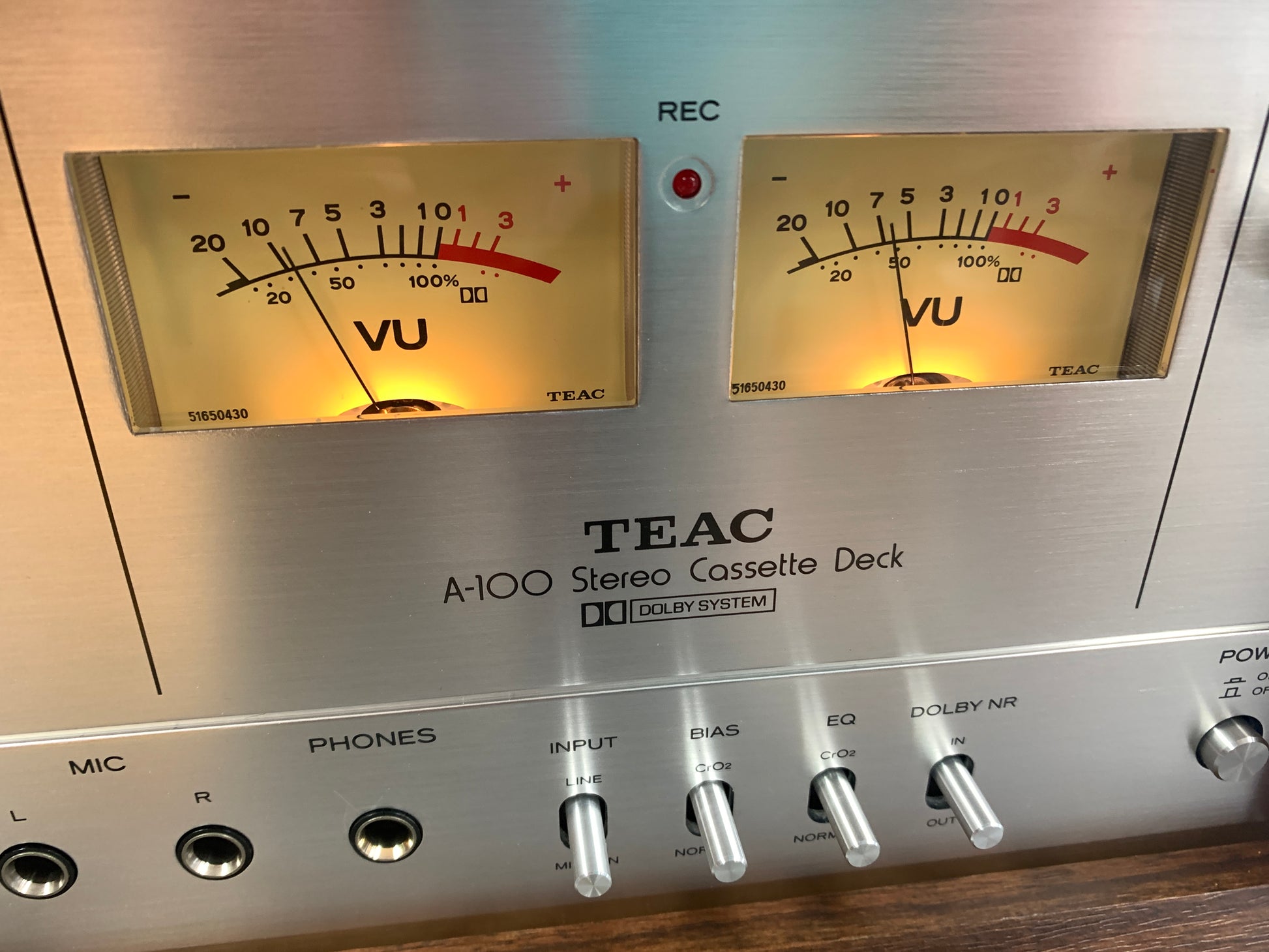

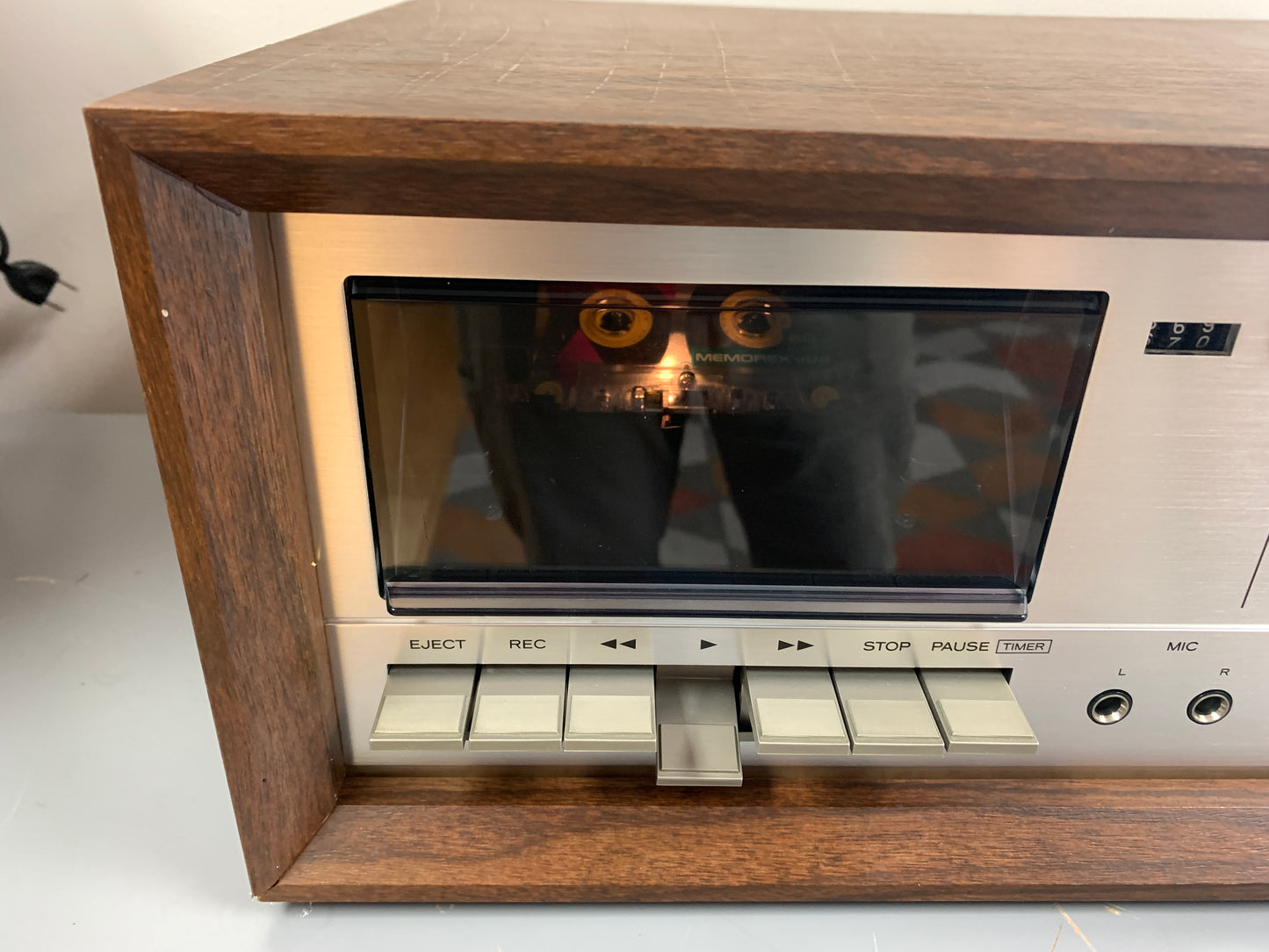

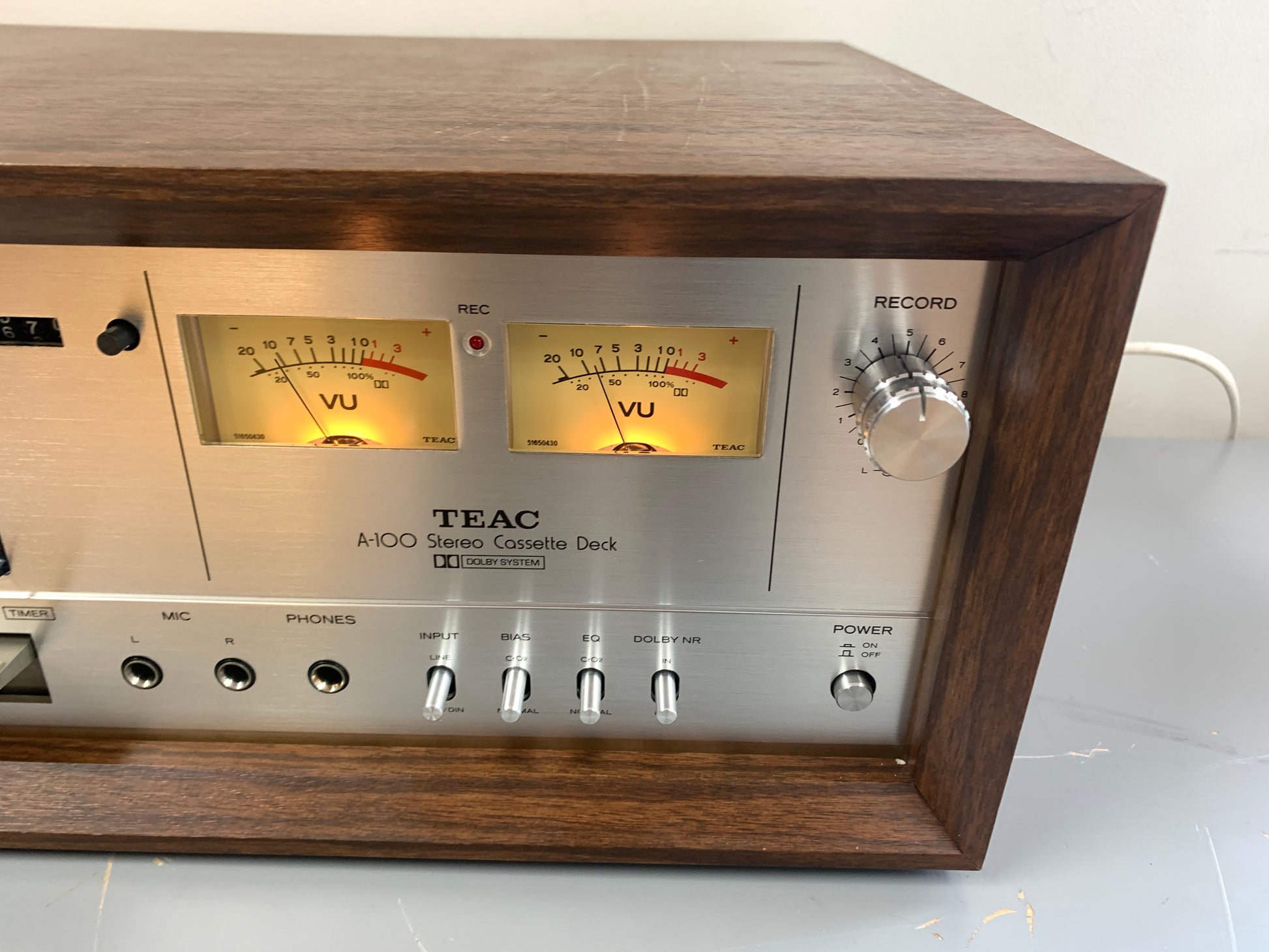

Features of the A-100 include Dolby noise reduction, DC servo controlled motor, individual dual position bias and equalization selectors, timer control function, lighted cassette compartment, digital tape counter, front panel microphone inputs, two VU type loudness meters and a stereo headphone jack.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC servo controlled
Tape Type: type I, CrO2
Noise Reduction: B
Frequency Response: 30Hz to 14kHz (Cr02 tape)
Signal to Noise Ratio: 55dB (dolby B)
Wow and Flutter: 0.1%

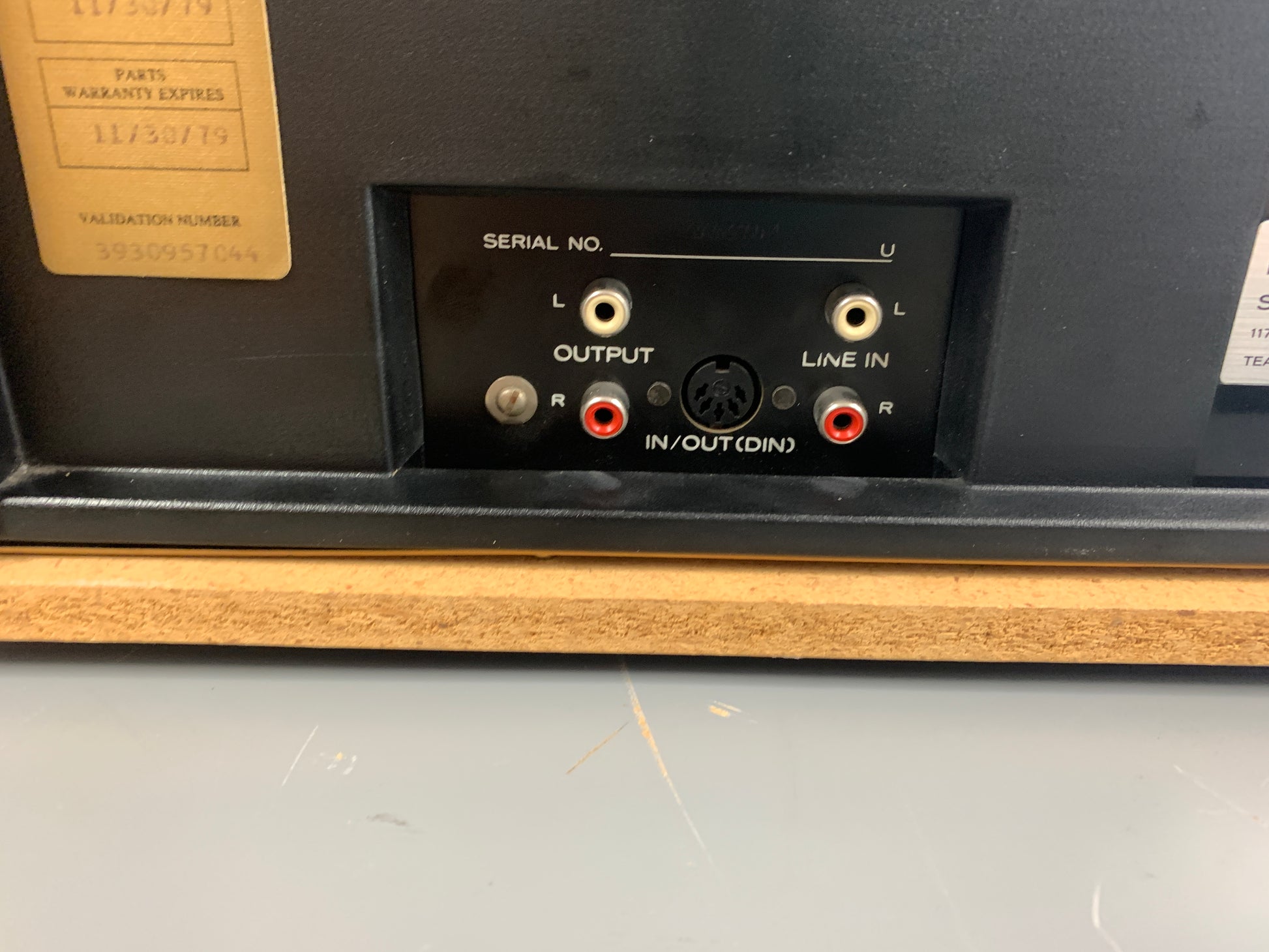

Input: 60mV (line), 0.25mV (mic)
Dimensions: 160 x 410 x 300mm
