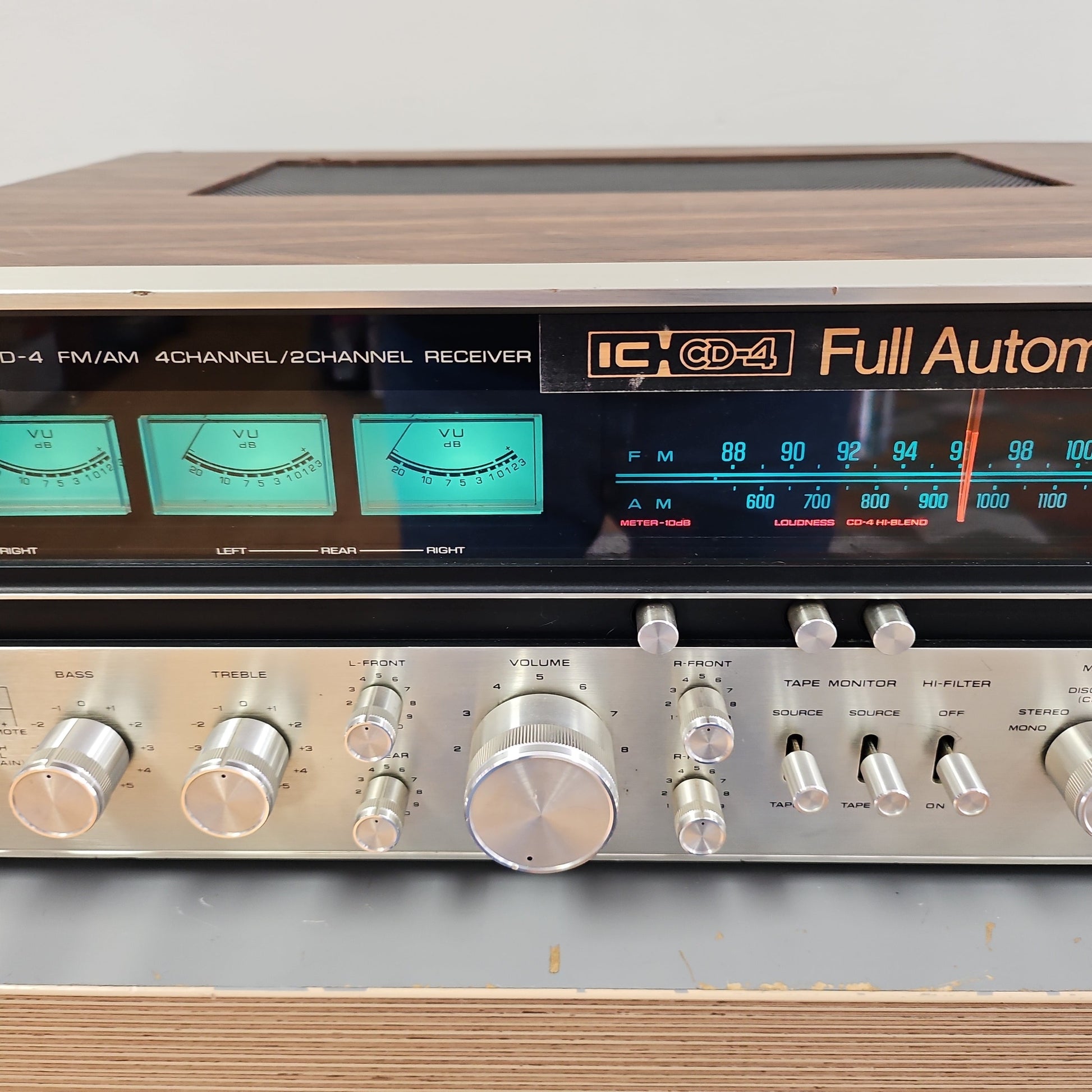

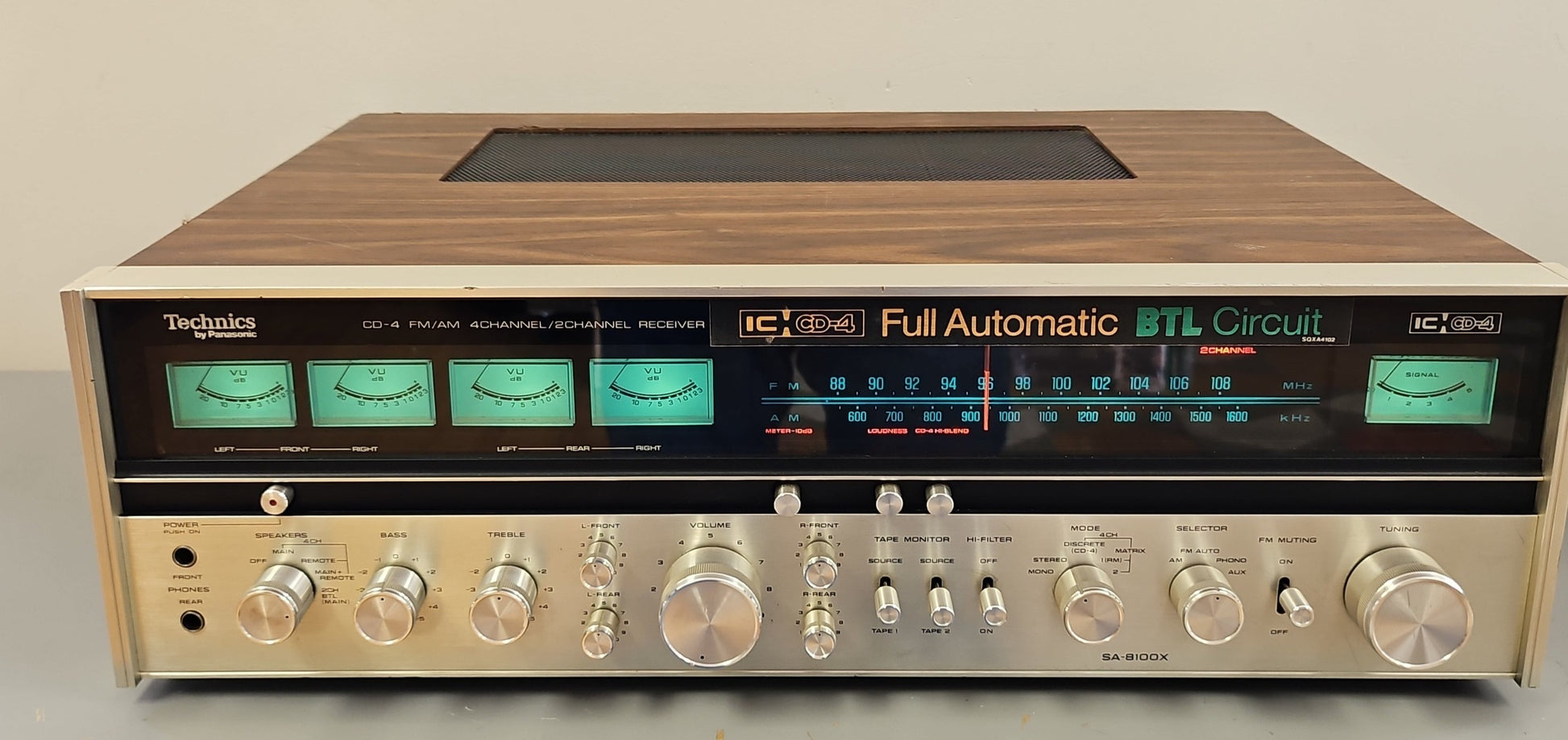

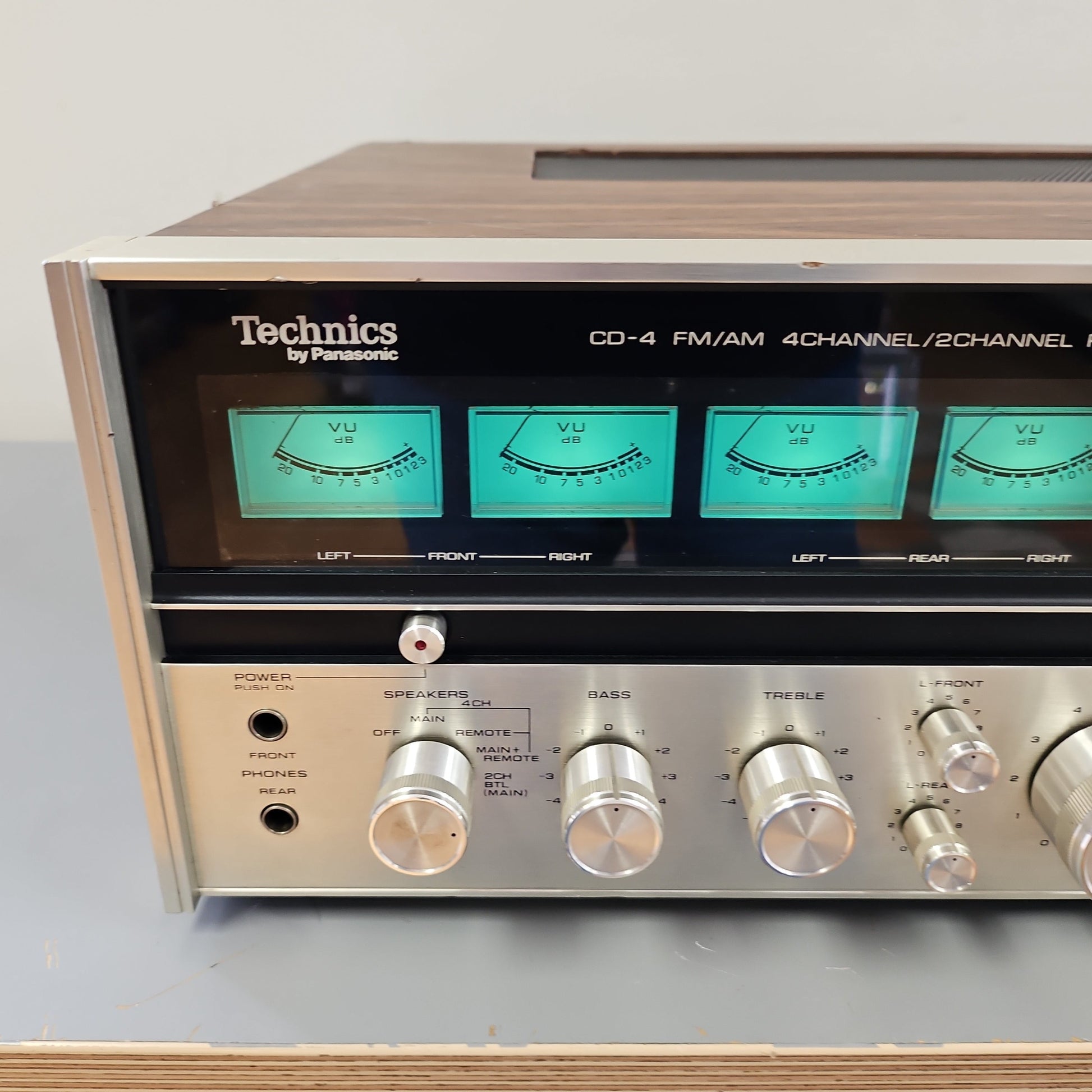

Technics SA-8100X

AM/FM 4-Channel Receiver (1974)

Specifications

Tuning range: FM, MW

Power output: 46W/ch (stereo), 16W/ch into 8Ω (quadraphonic)

Frequency response: 7Hz to 70kHz

Total harmonic distortion: 0.5%

Damping factor: 25

Input sensitivity: 2mV (MM), 180mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 180mV (line)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 502 x 155 x 395mm

Weight: 14.8kg

Year: 1974
