local pickup only - no shipping

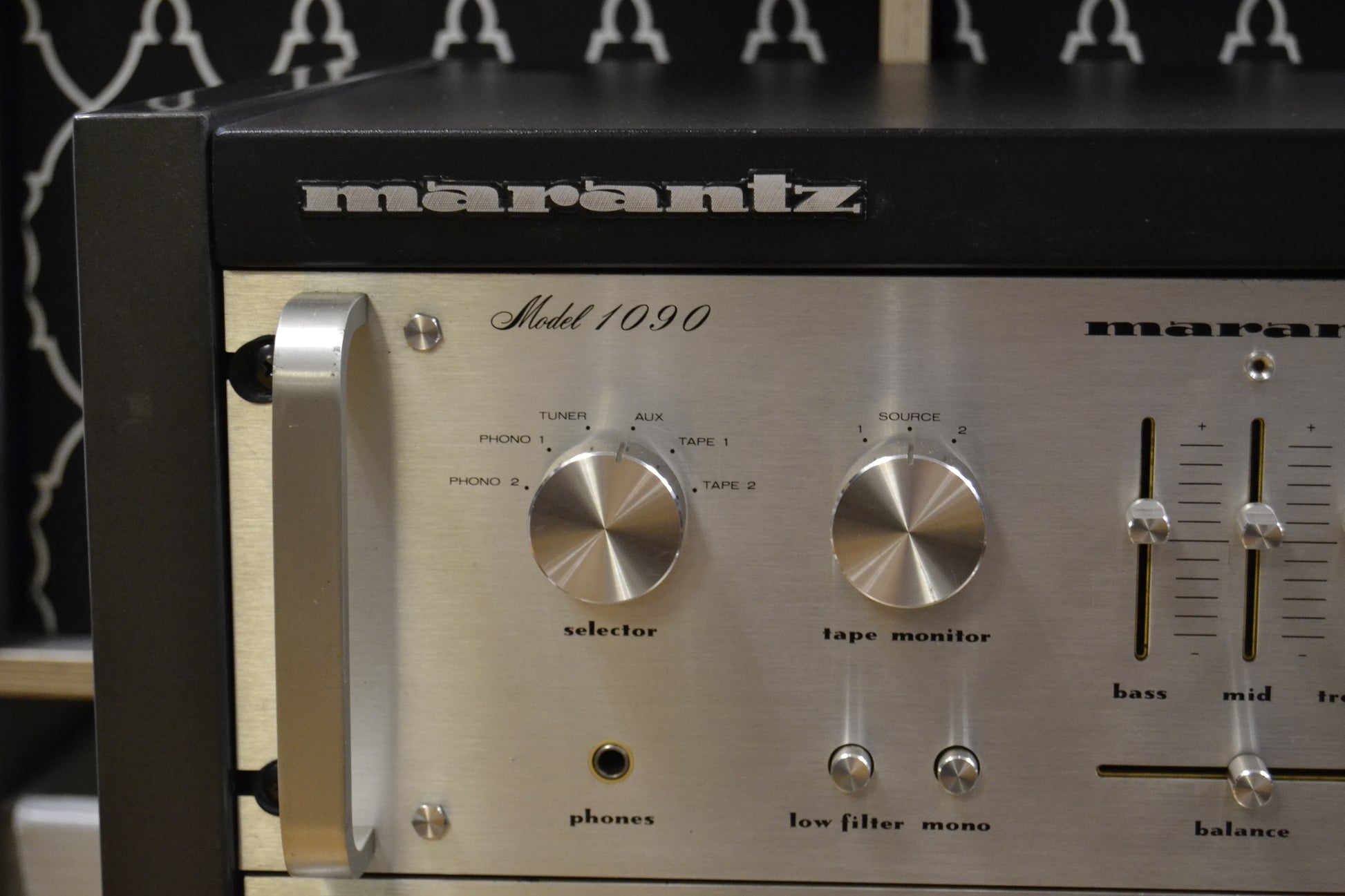

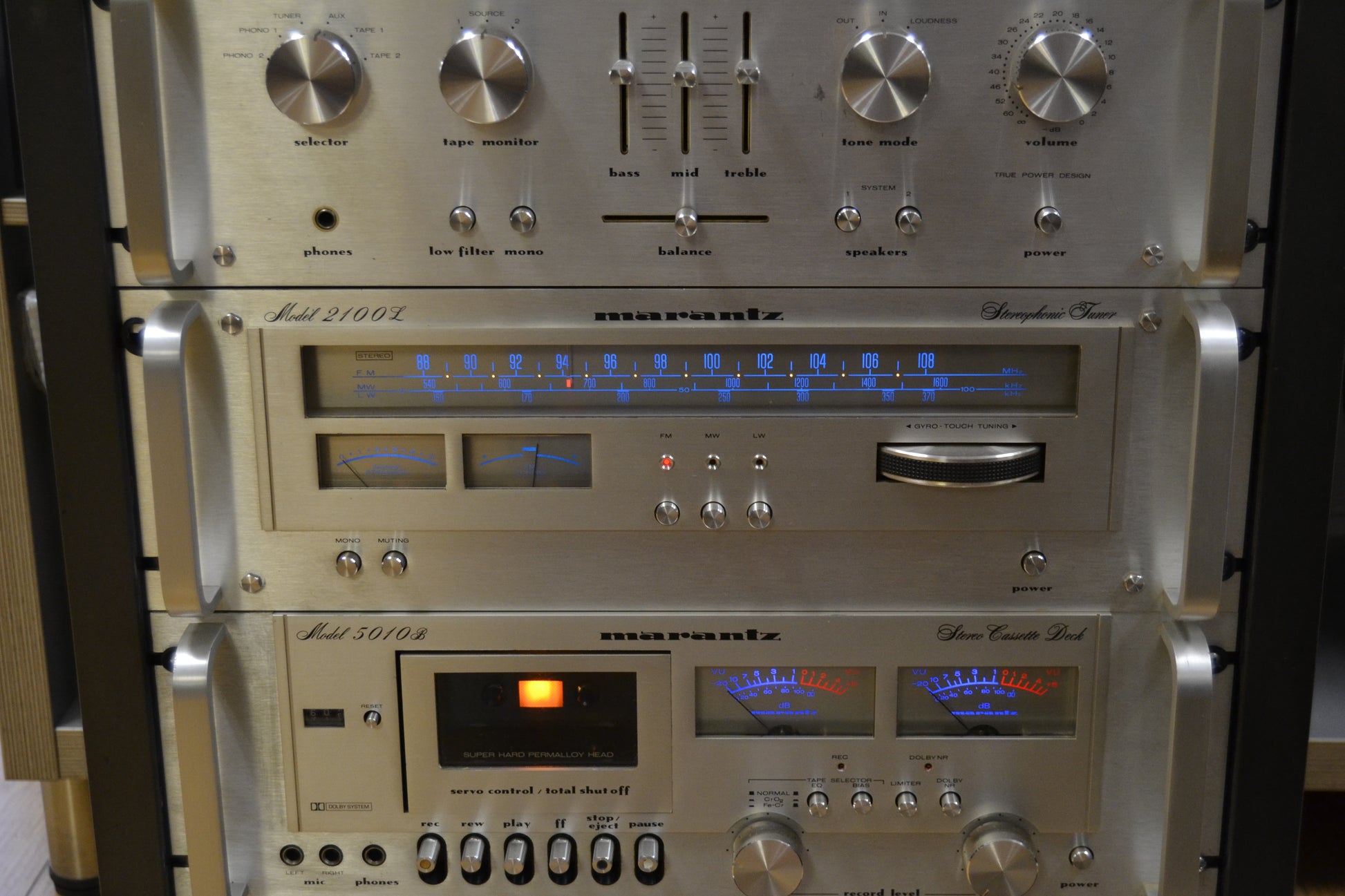

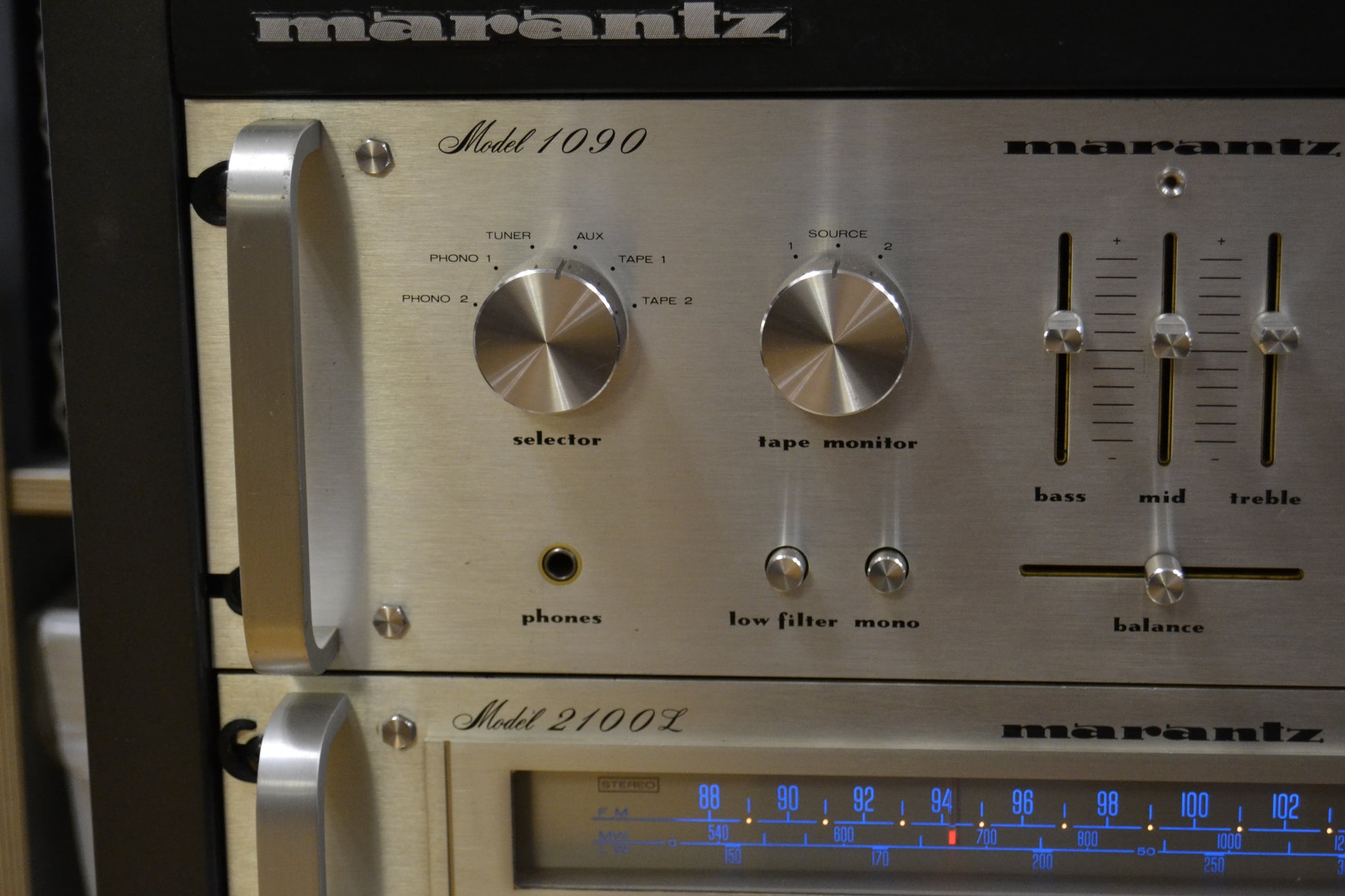

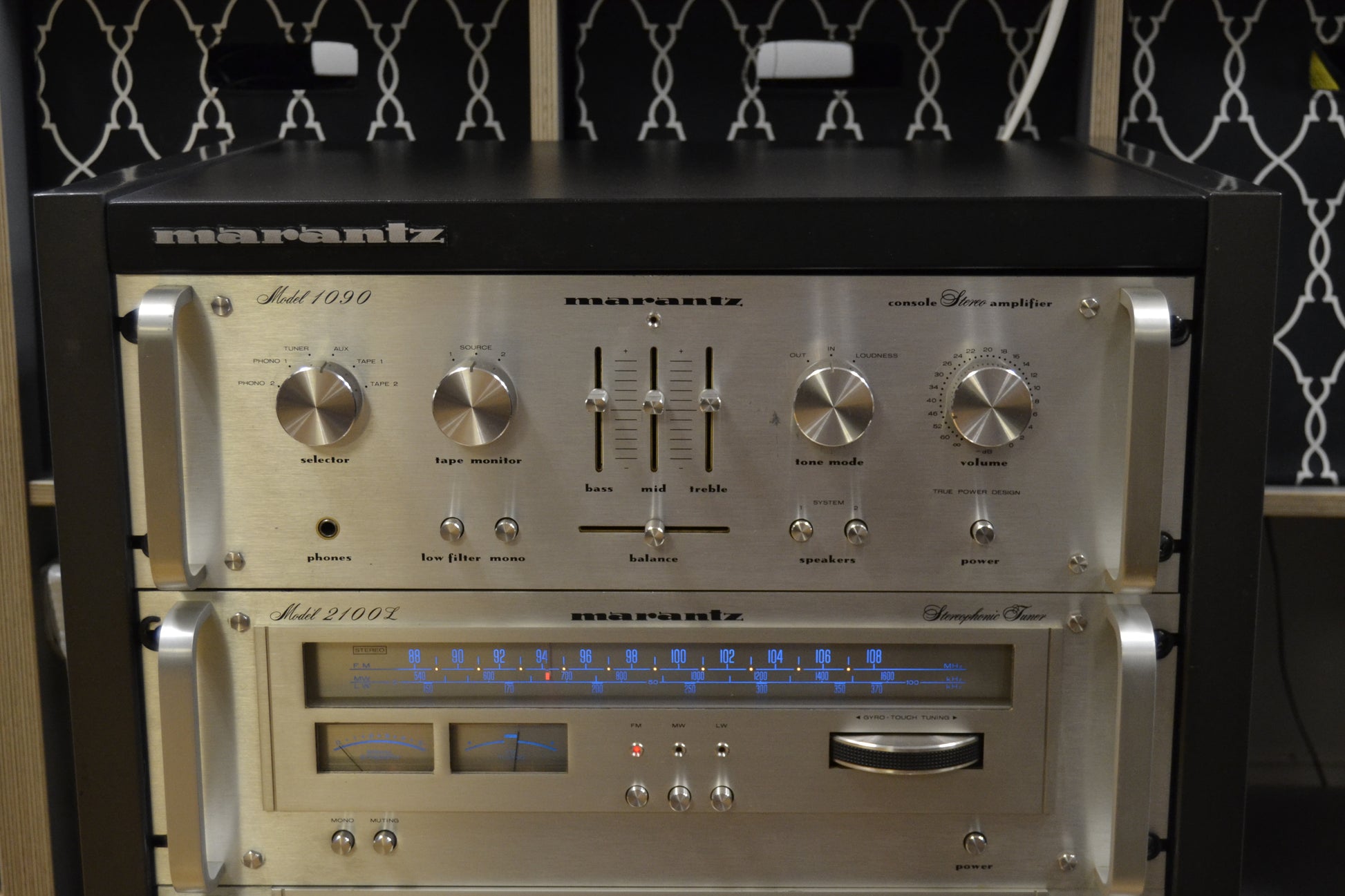

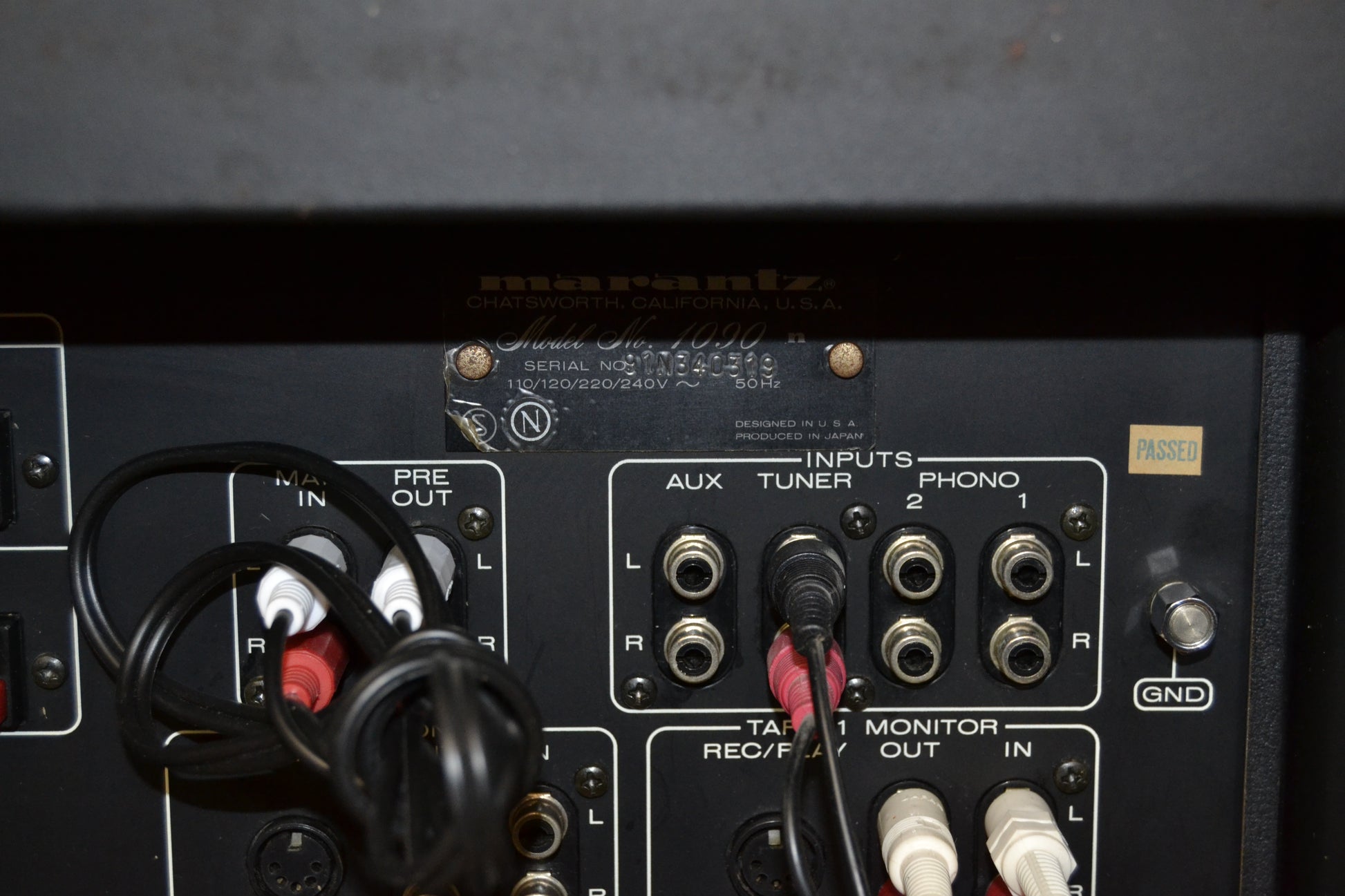

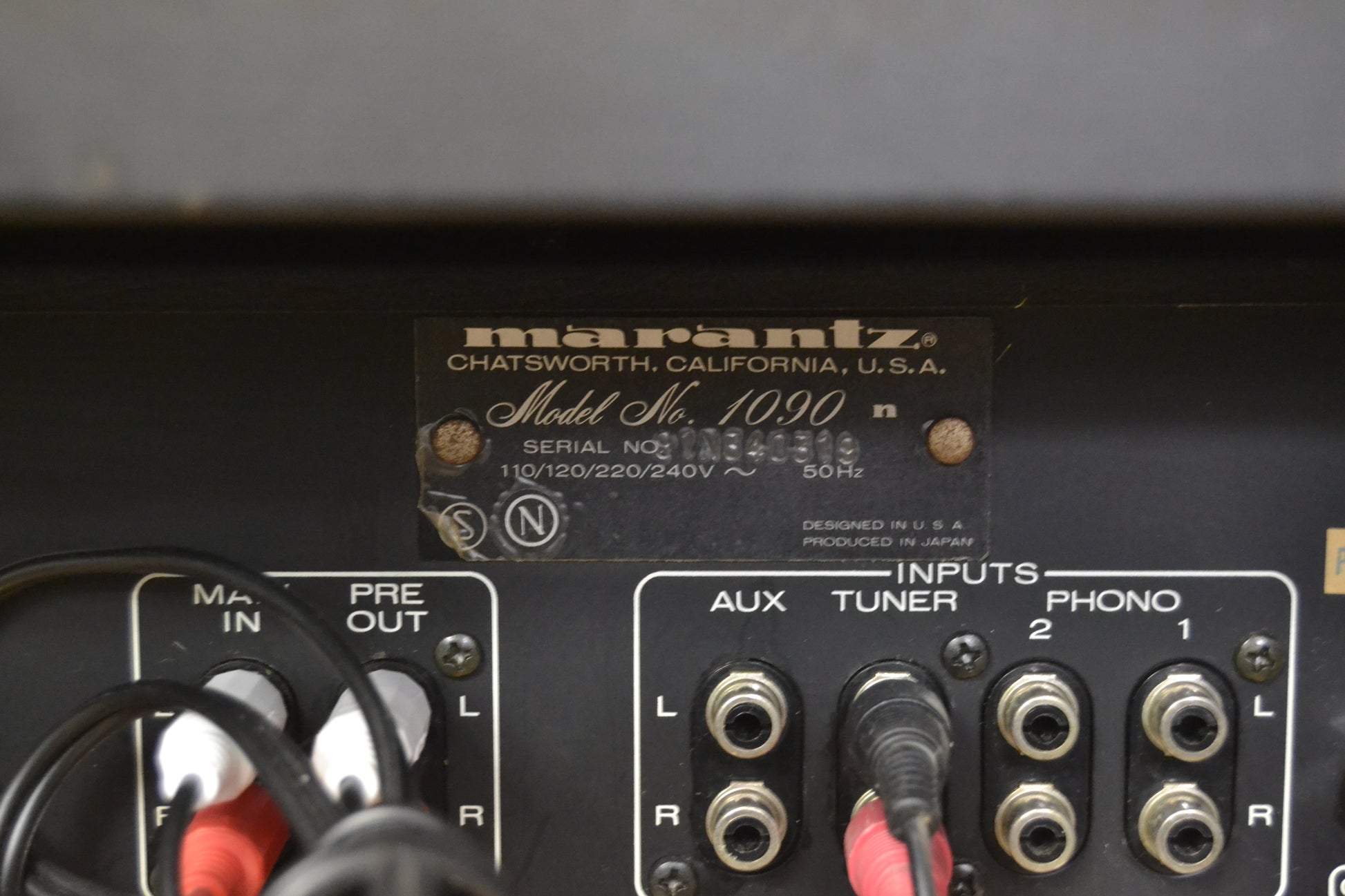

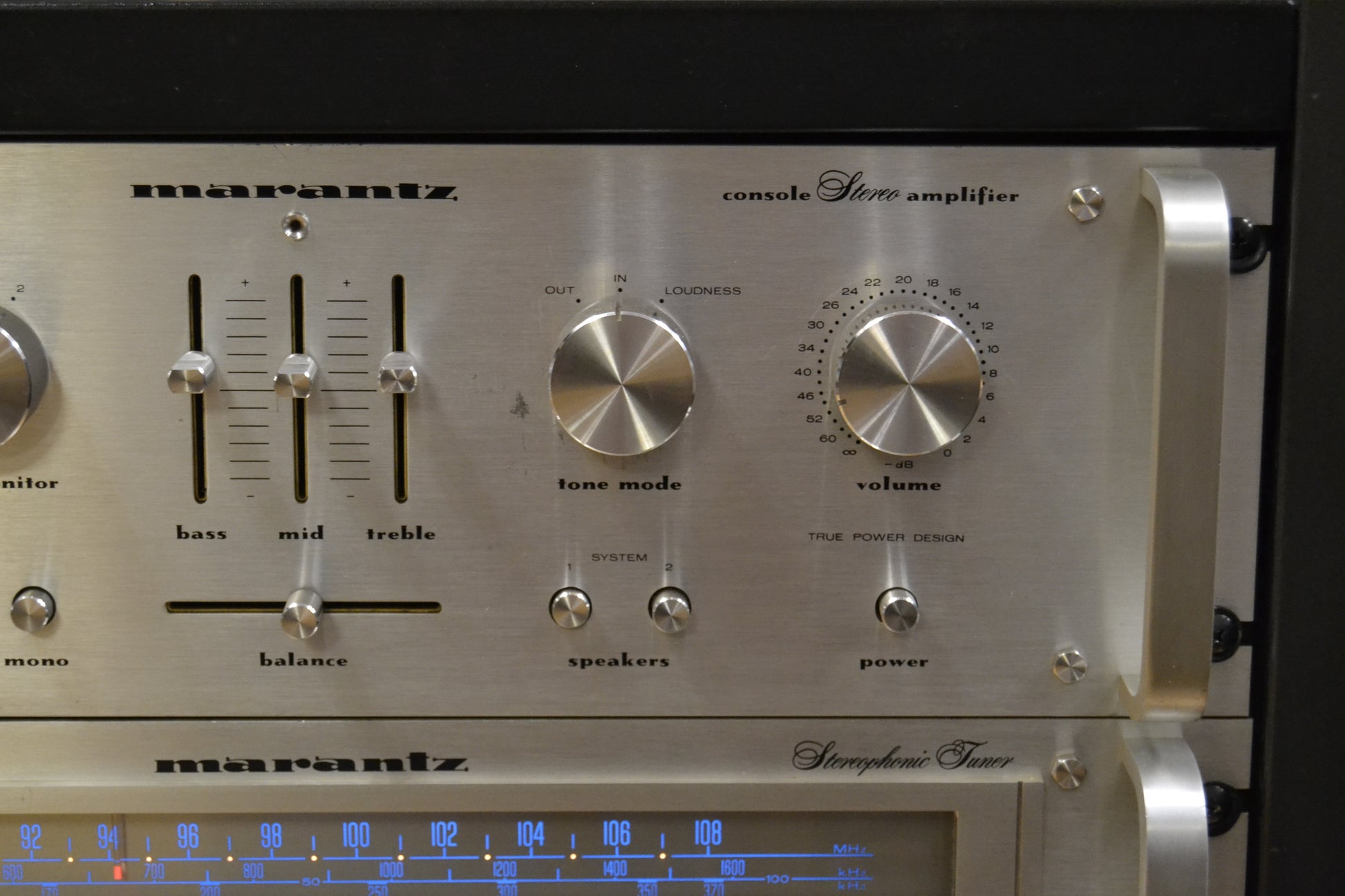

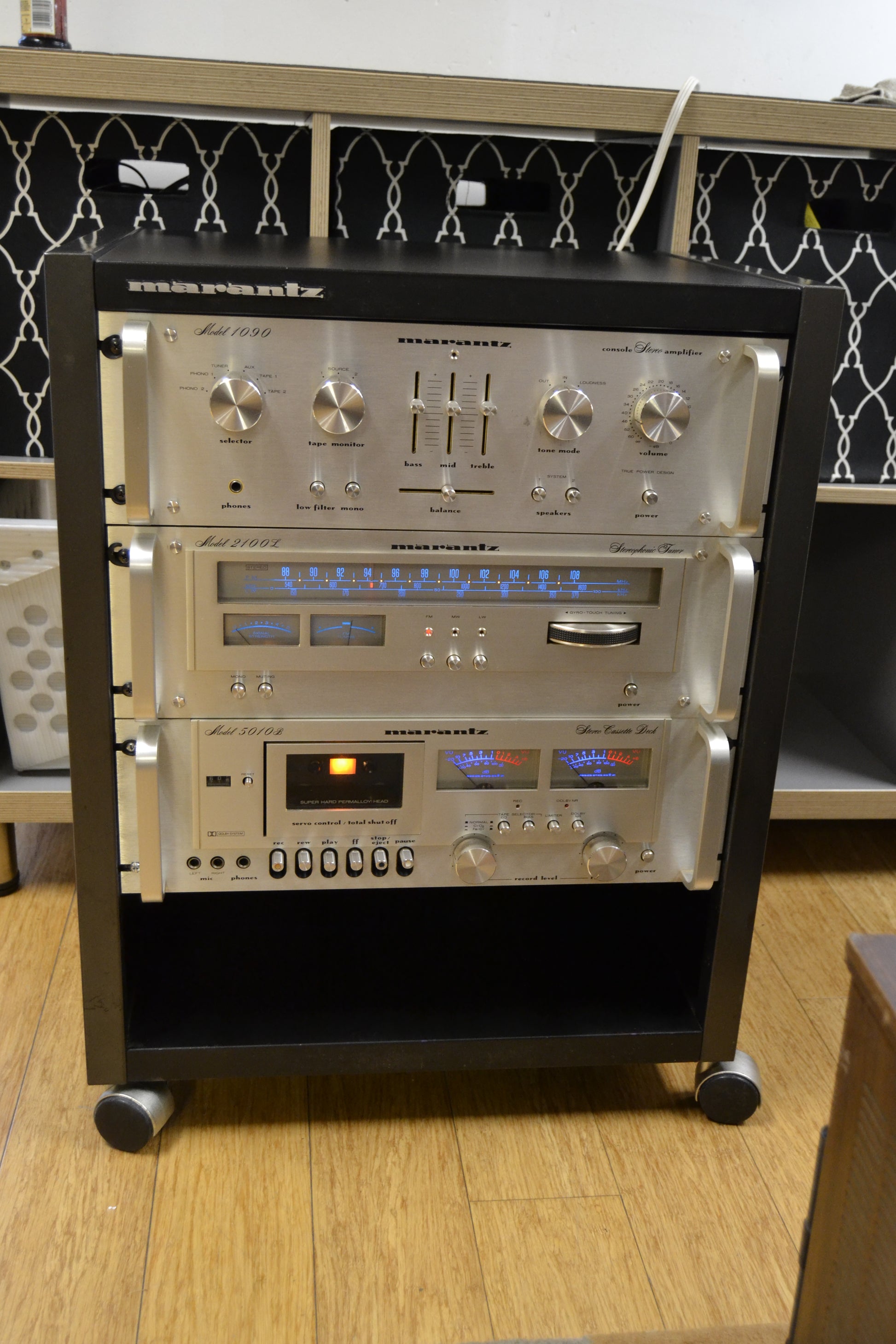

Marantz 1090

Stereo Console Amplifier (1977-80)

Specifications

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 60kHz

Total harmonic distortion: 0.1%

Damping factor: 45

Input sensitivity: 1.8mV (MM), 180mV (line)

Signal to noise ratio: 76dB (MM), 88dB (line)

Output: 775mV (line), 1.5V (Pre out)

Dimensions: 416 x 146 x 301mm

Weight: 9.5kg

Year: 1977

****************************************

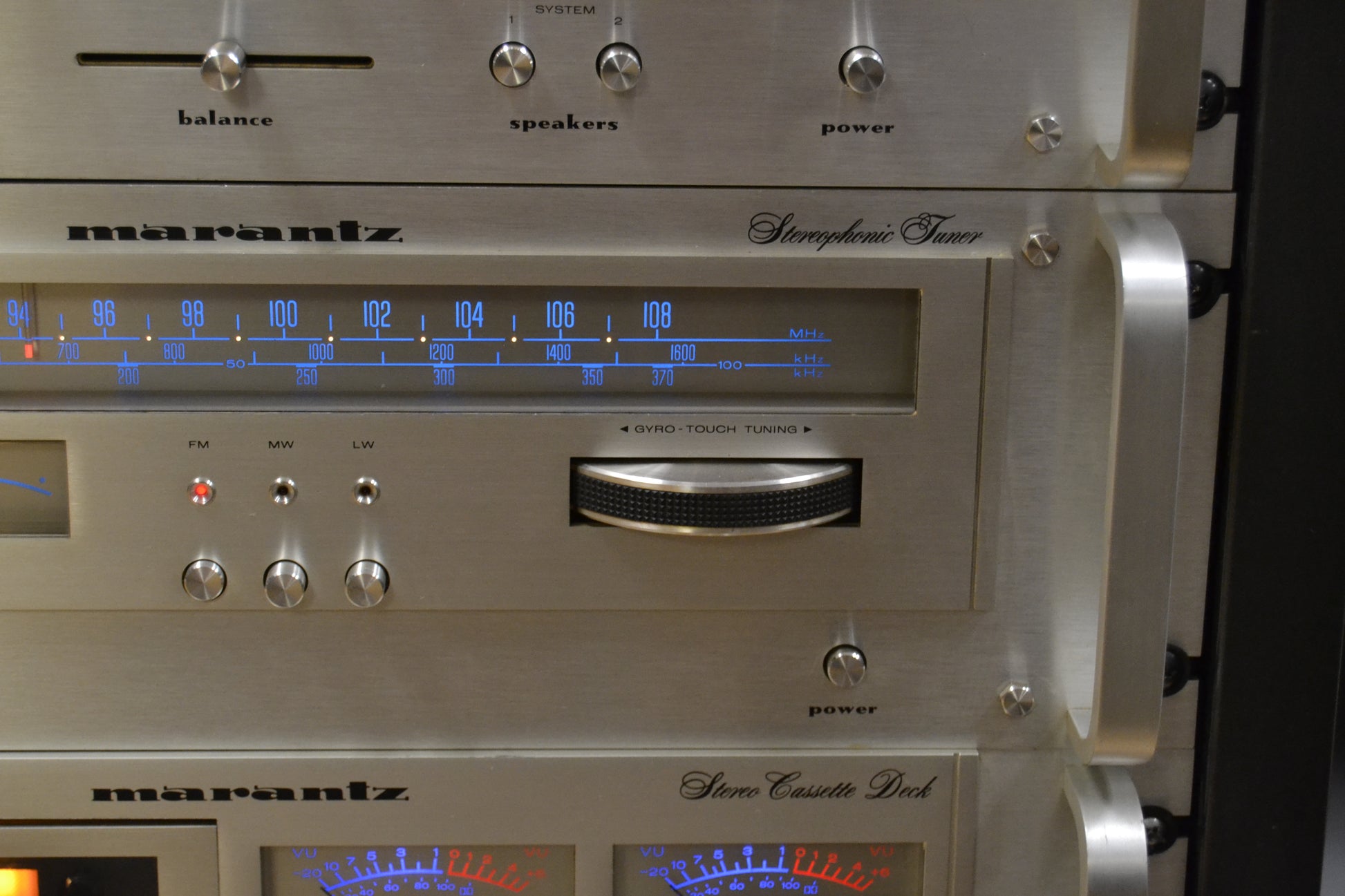

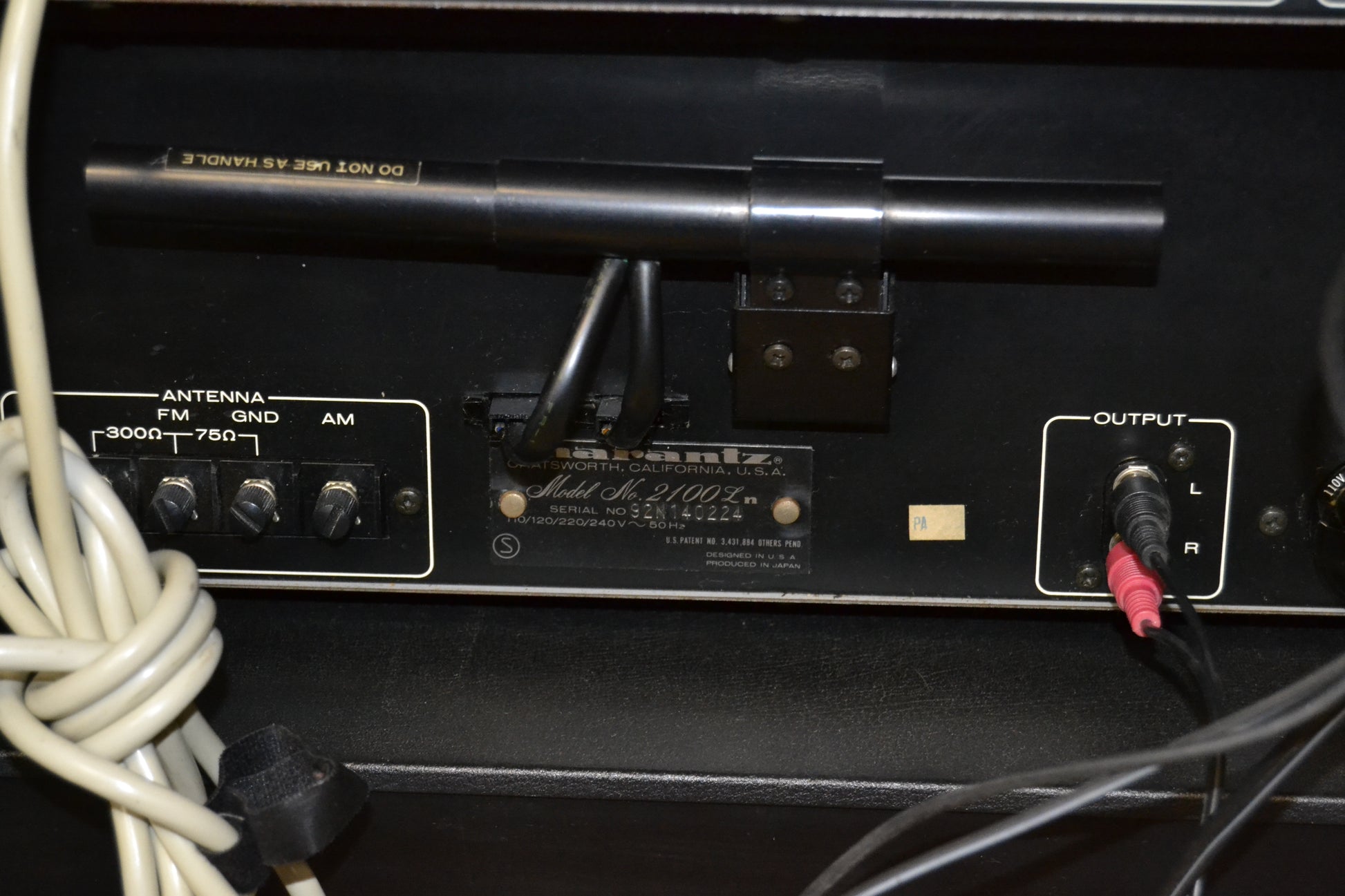

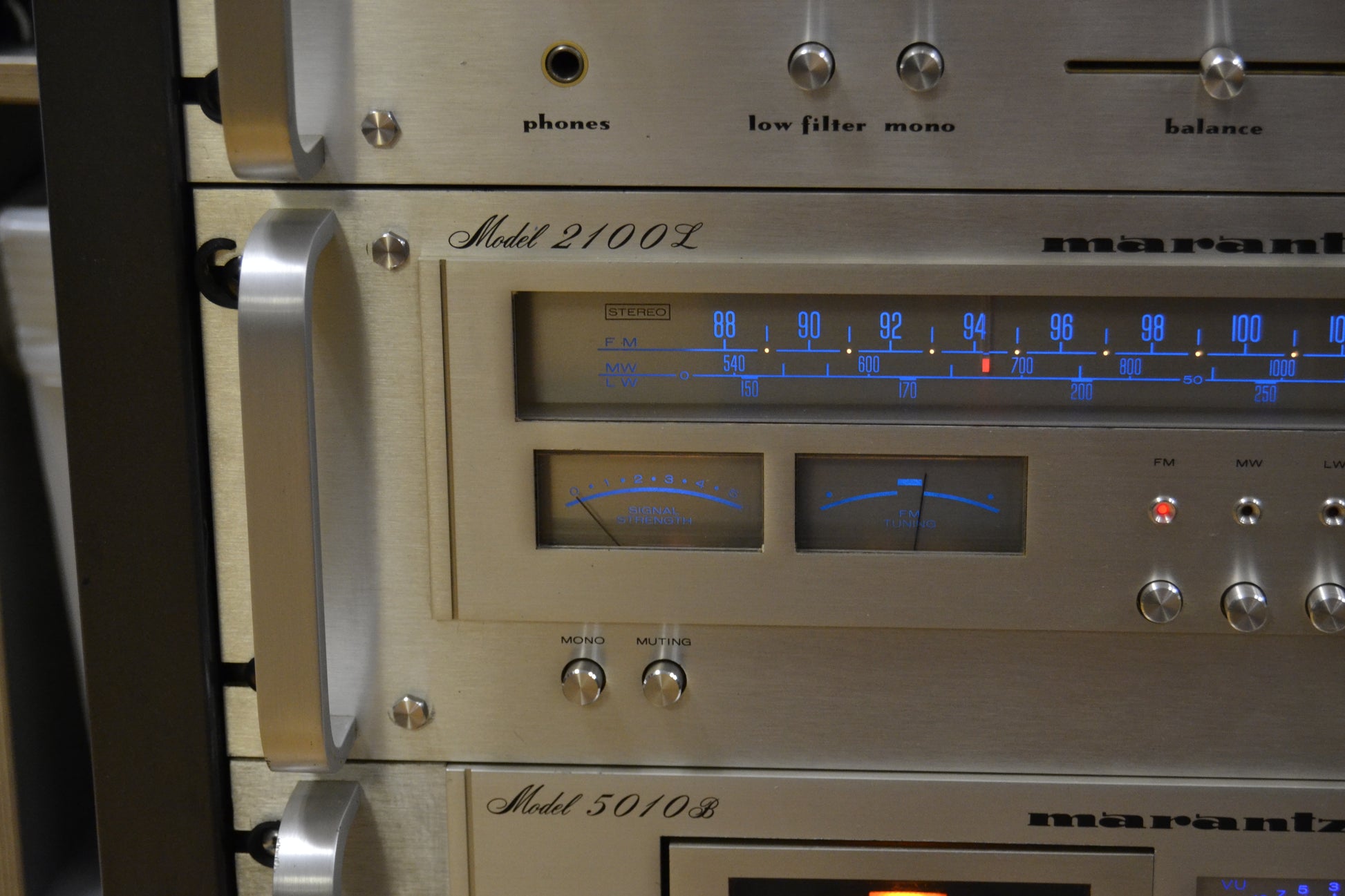

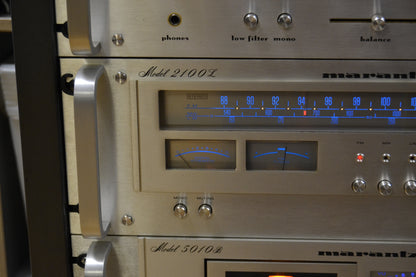

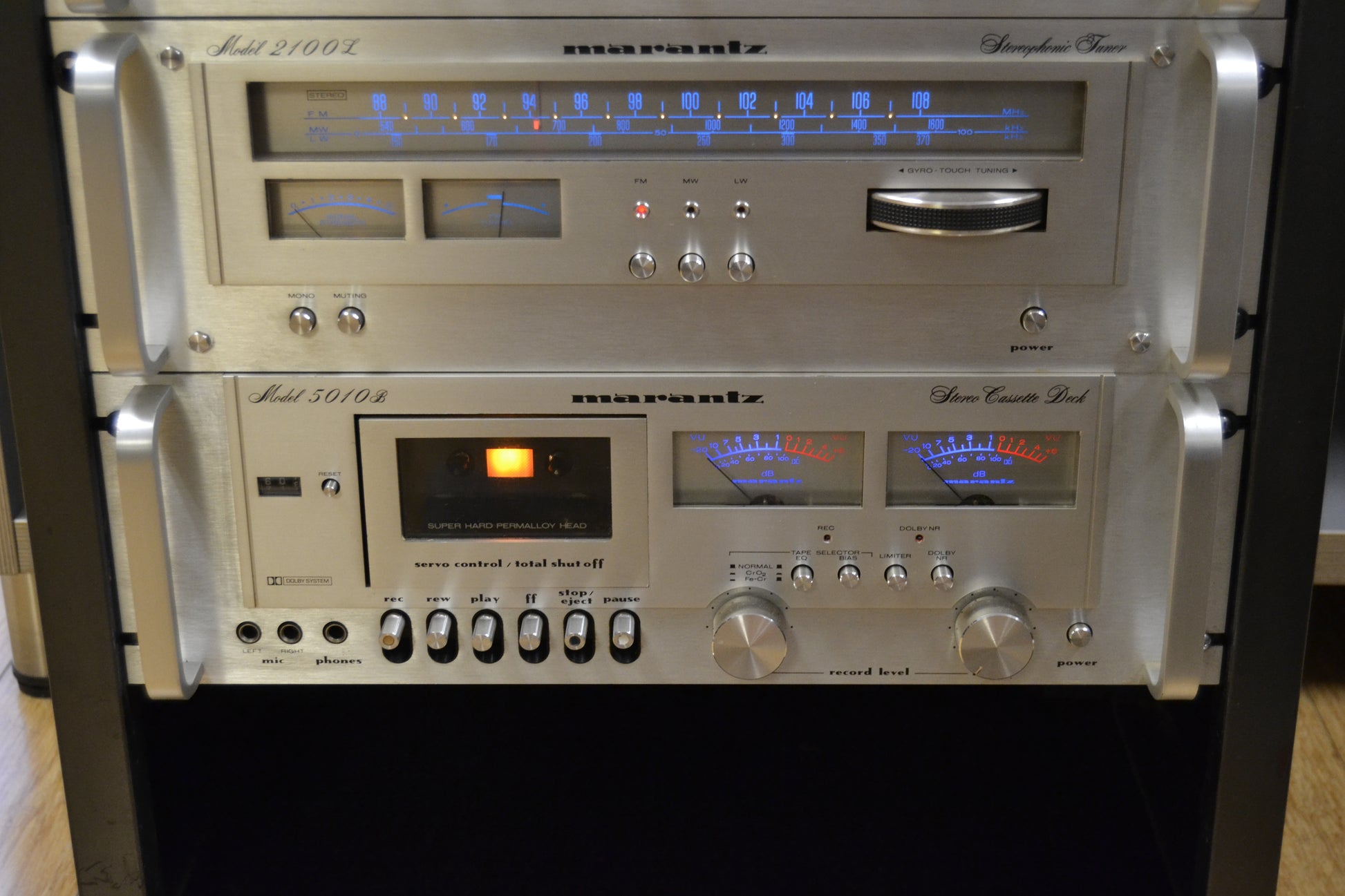

Marantz 2100

AM/FM Stereophonic Tuner (1978-80)

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 88 to 108 MHz

Sensitivity: 1.8uV (FM), 15uV (MW)

Signal to Noise Ratio: 72dB (FM), 50dB (MW)

Distortion: 0.6% (FM), 0.5% (MW)

Selectivity: 70dB (FM), 46dB (MW)

Frequency response: 30Hz to 15kHz (FM), 40Hz to 2.3kHz (MW)

Semiconductors: 3 x IC, 9 x transistors, 7 x diodes, 1 x MosFET

Dimensions: 416 x 146 x 239mm

Weight: 6kg

*****************************************

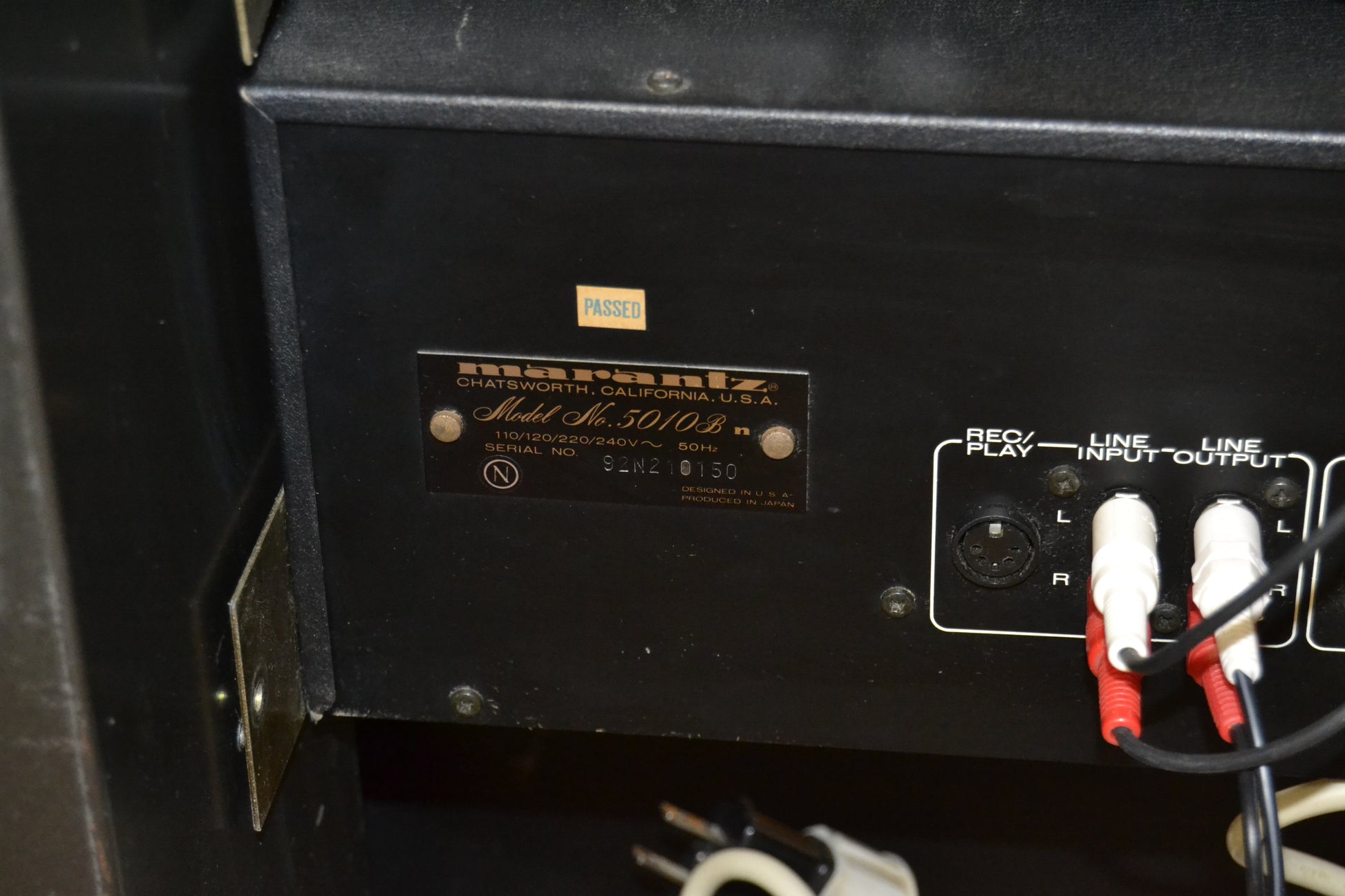

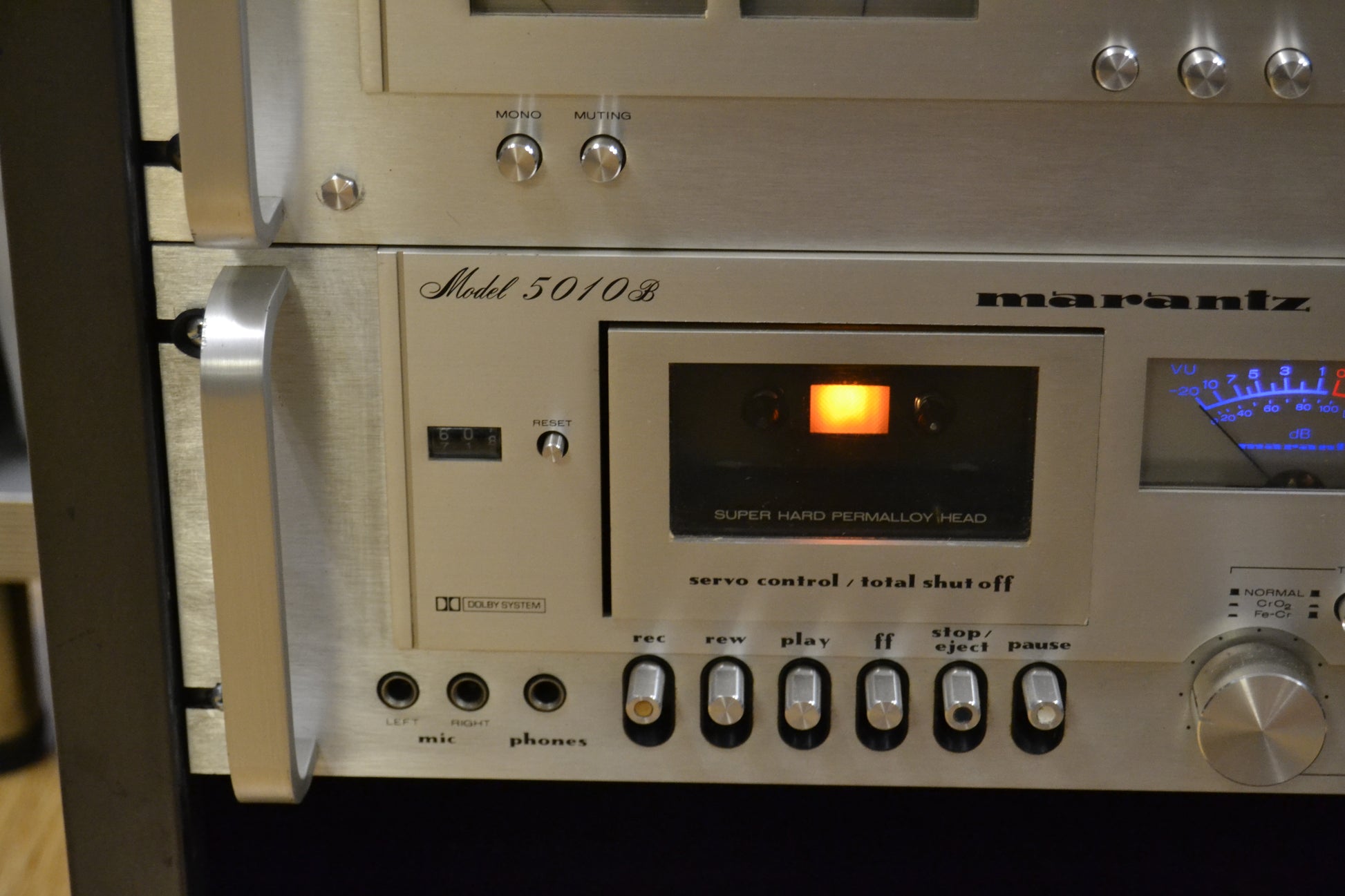

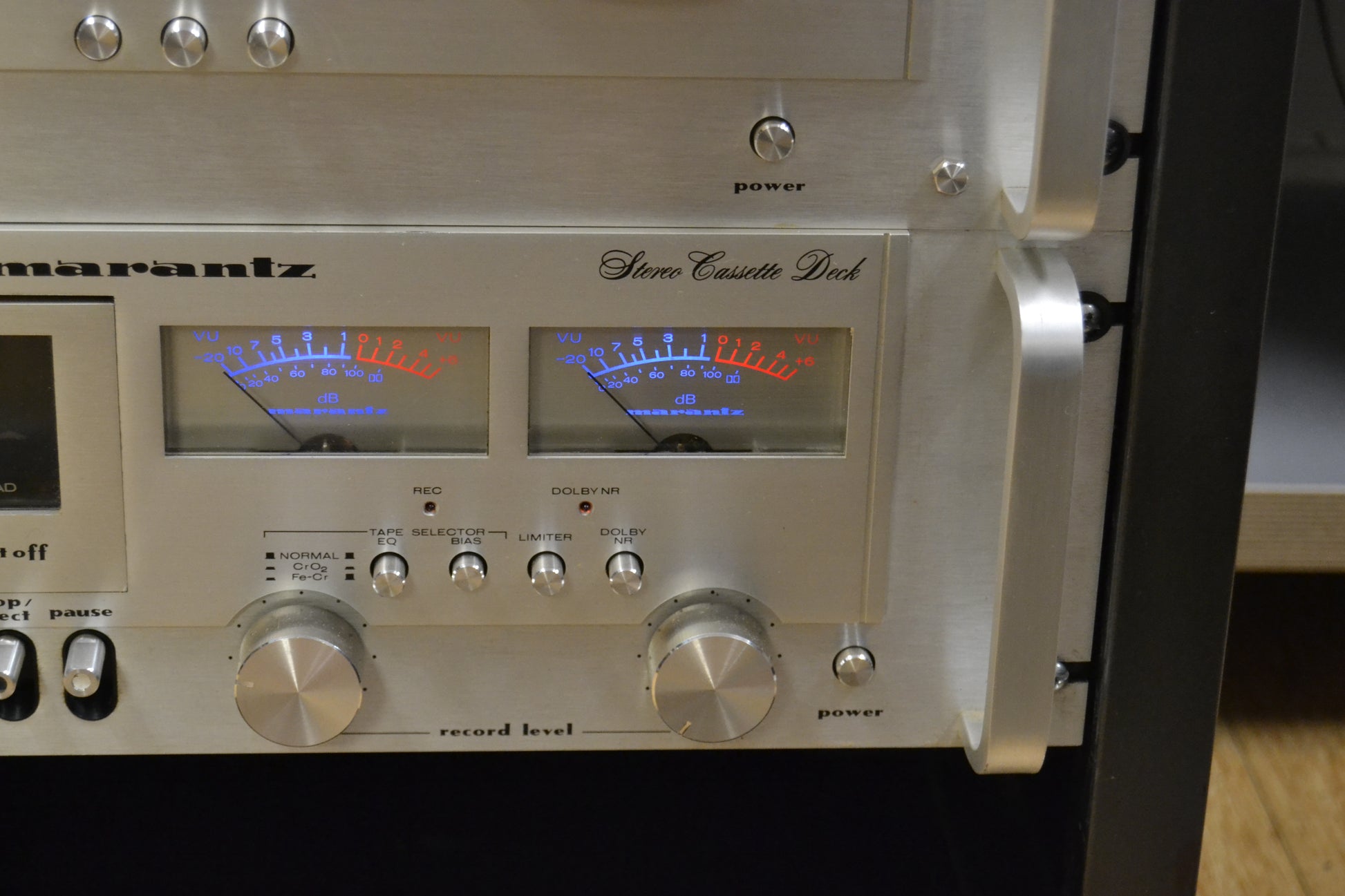

Marantz 5010

Stereo Cassette Deck (1978-80)

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x DC servo control

Tape Type: type I, FeCr, CrO2

Noise Reduction: B

Frequency Response: 40Hz to 16kHz  (Cr02 tape)

Wow and Flutter: 0.12%

Total Harmonic Distortion: 1.8%

Semiconductors: 21 x transistors, 3 x IC, 23 x diodes, 2 x LED

Dimensions: 440 x 146 x 297mm

Weight: 6.7kg
