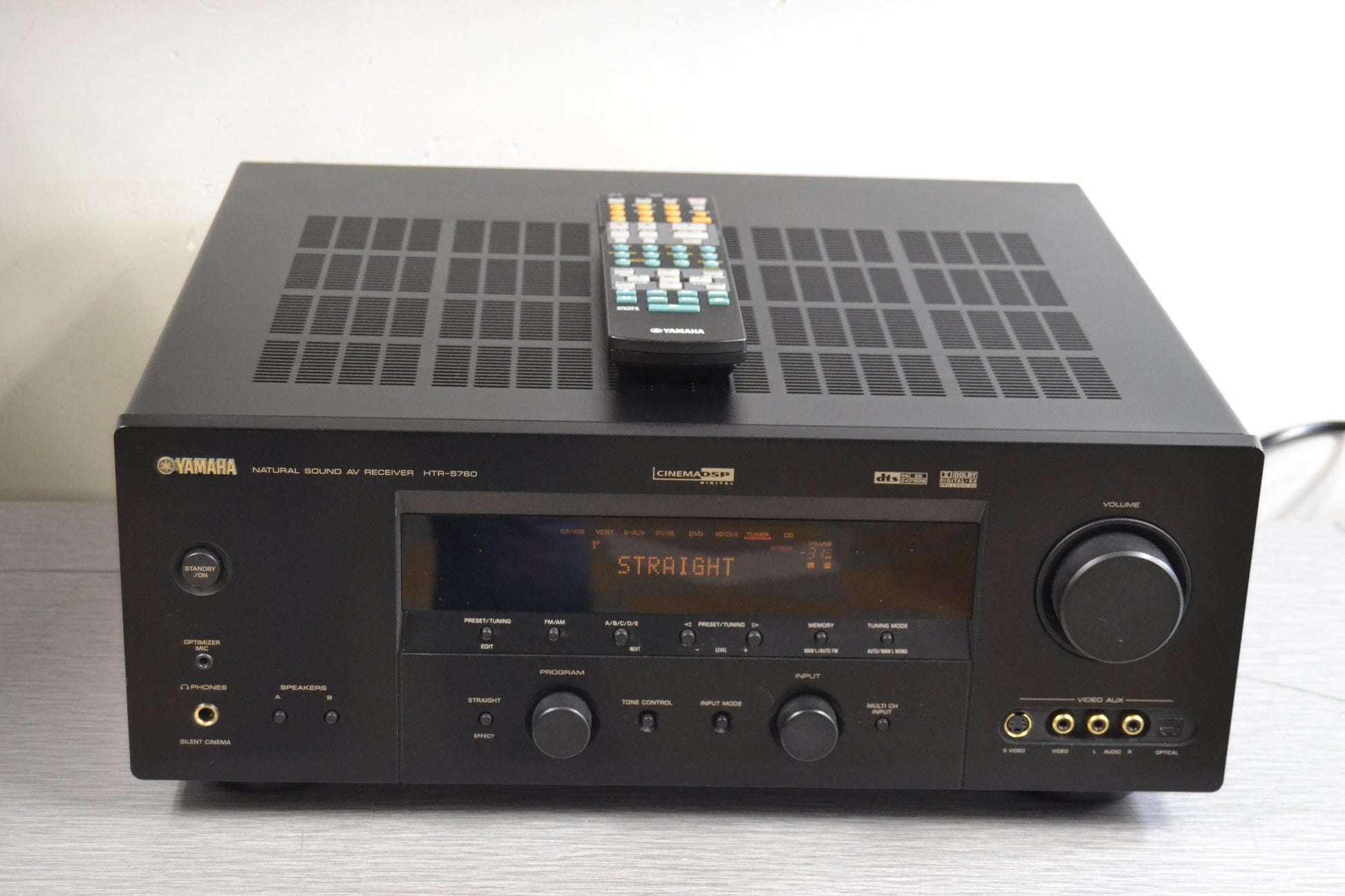

Yamaha HTR-5760

Audio Video Receiver (2004-05)

Specifications

Tuning range: FM, MW

Power output: 95 watts per channel into 8Ω (stereo)

Surround output: 95W (front), 95W (center), 95W (rear)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.06%

Damping factor: 100

Input sensitivity: 200mV (line)

Signal to noise ratio: 100dB (line)

Channel separation: 45dB (line)

Output: 200mV (line), 2V (Pre out)

Speaker load impedance: 4Ω (minimum)

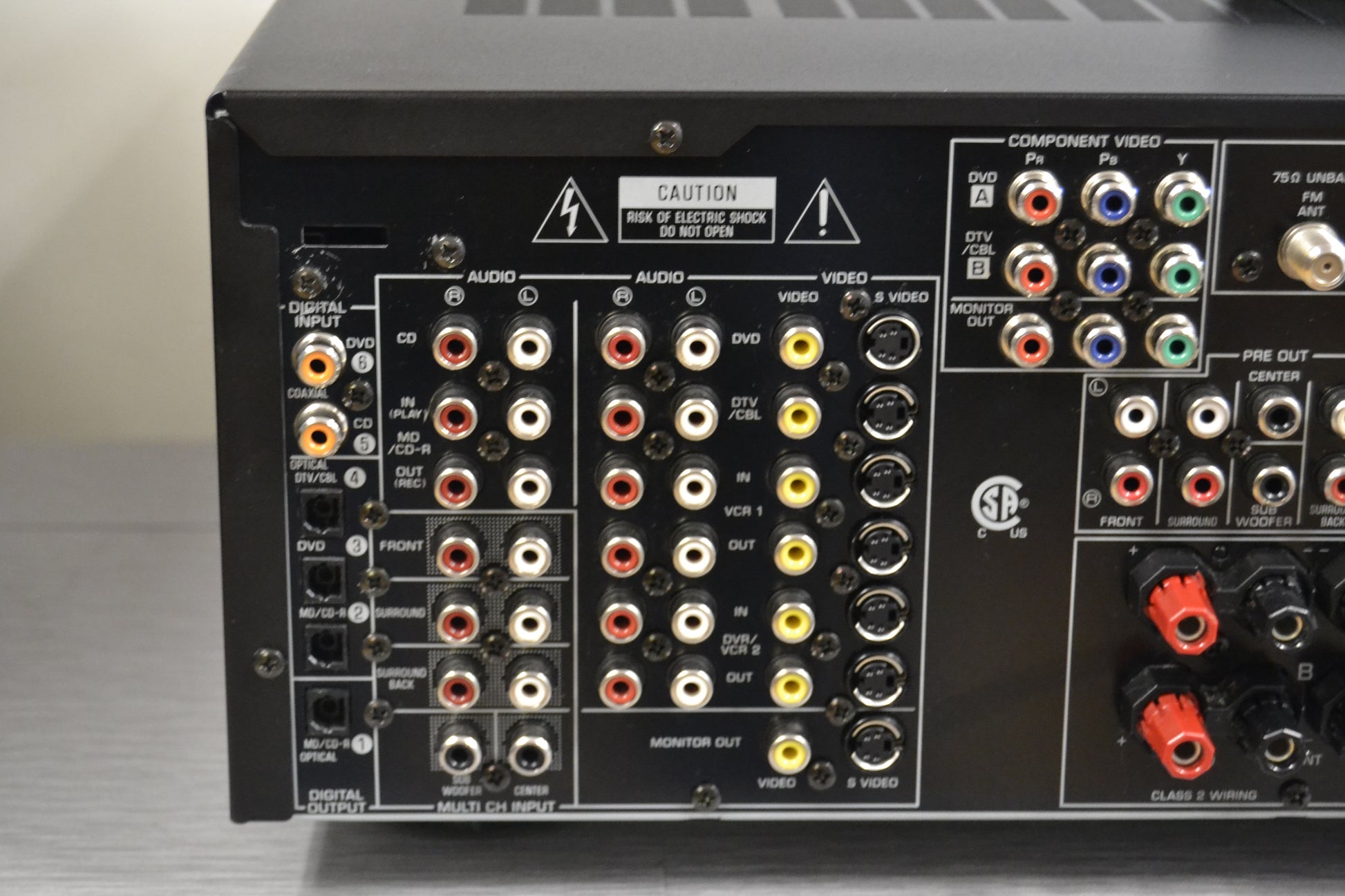

Digital inputs: coaxial, optical

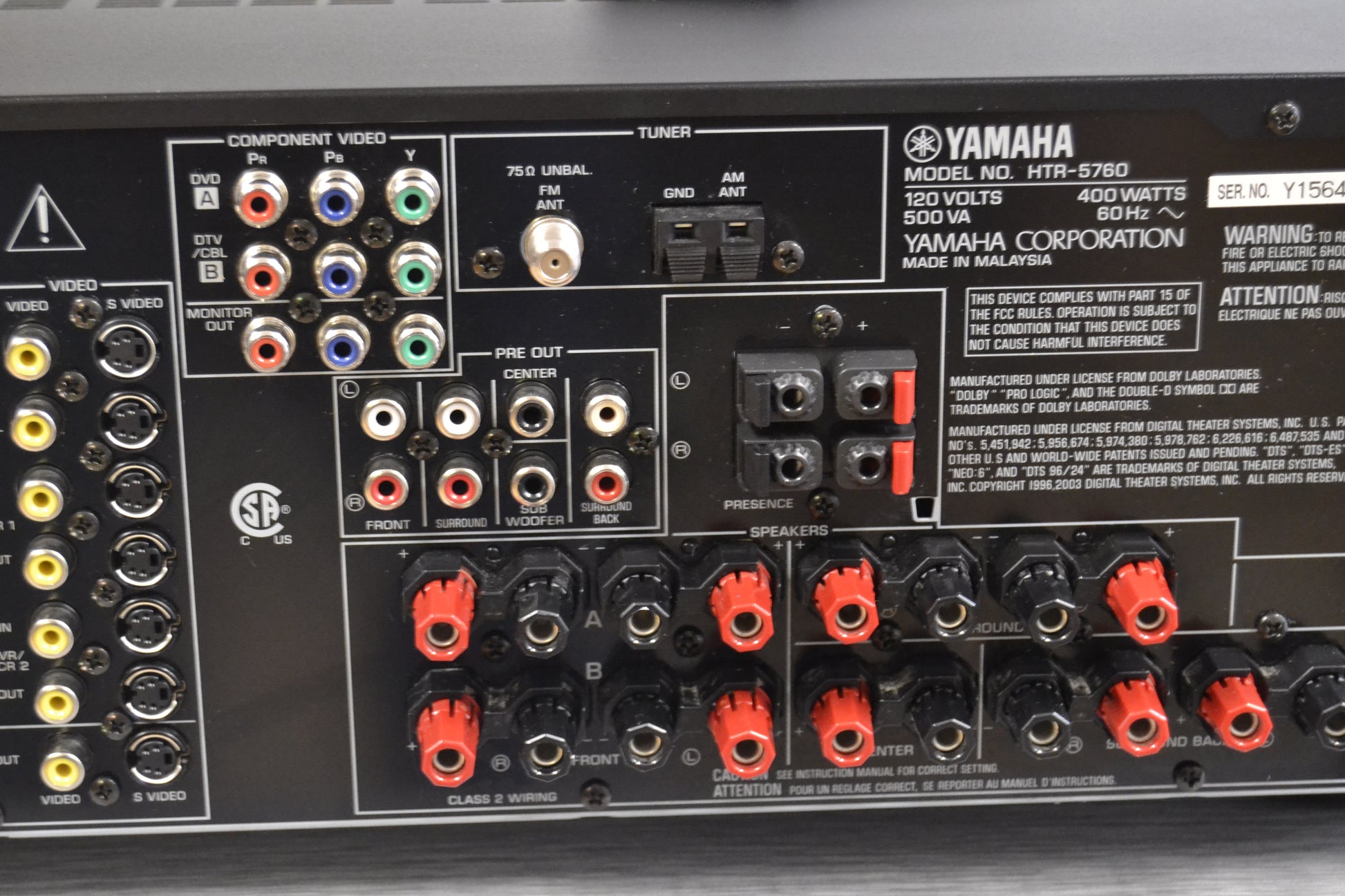

Video Connections: component, composite, SVHS

Dimensions: 435 x 171 x 416mm

Weight: 12.5kg

Finish: black, silver or gold

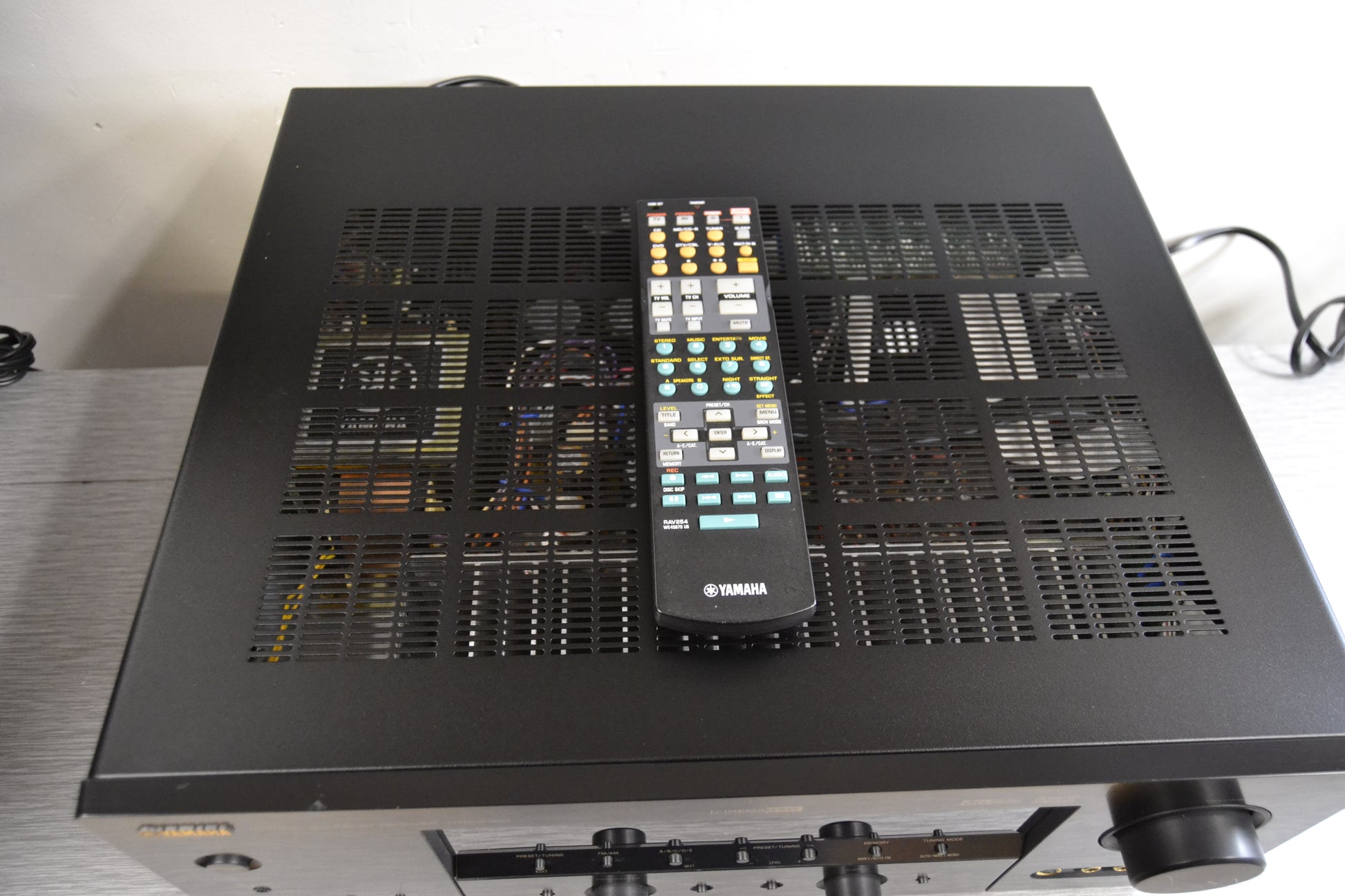

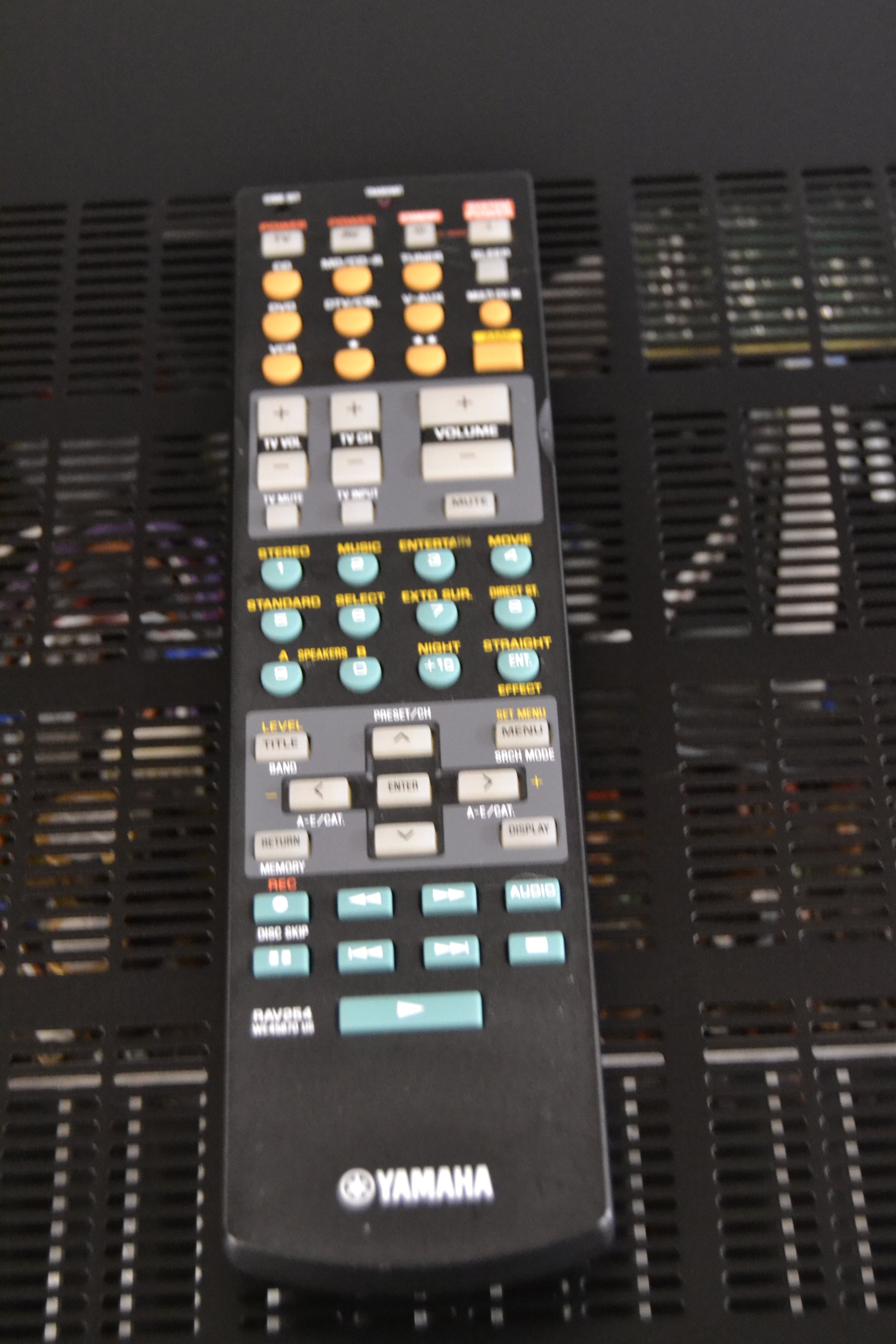

Accessories: remote control
